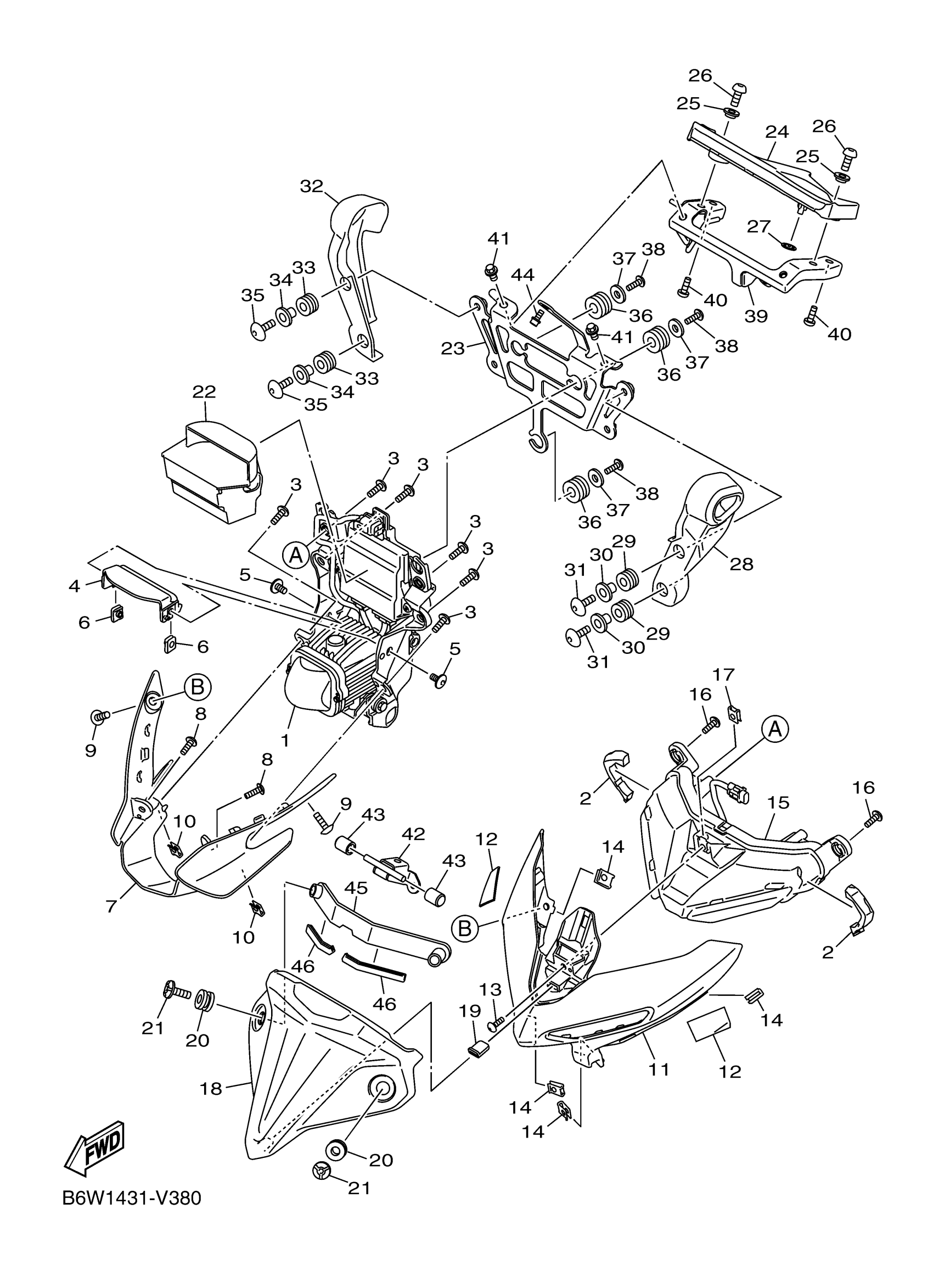

Yamaha MT03RGY (MT-03) B5WM 2024 HEADLIGHT Diagram
#
18
COVER 1
B9T-H4369-00-P1
Unavailable
19
DAMPER, SIDE COVER
1PA-F411J-00-00
Unavailable
20
GROMMET (3P91)
90480-12808-00
Unavailable
21
BOLT,HEX. SOCKET B
90111-06870-00
Unavailable
22
COVER, SOCKET
B9T-H4196-00-00
Unavailable
23
STAY 2
B9T-F8357-00-00
Unavailable
24
MOLE 1
B9T-F8345-00-00
Unavailable
25
COLLAR
90387-06242-00
Unavailable
26
BOLT
90111-06029-00
Unavailable
27
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
28
COVER, FLASHER 1
B9T-F83D3-00-00
Unavailable
29
GROMMET (3P91)
90480-12808-00
Unavailable
30
COLLAR
90387-06899-00
Unavailable
31
BOLT,HEX. SOCKET BUTTON
90111-06086-00
Unavailable
32
COVER, FLASHER 2
B9T-F83D4-00-00
Unavailable
33
GROMMET (3P91)
90480-12808-00
Unavailable
34
COLLAR
90387-06899-00
Unavailable
35
BOLT,HEX. SOCKET BUTTON
90111-06086-00
Unavailable
36
GROMMET
90480-14004-00
Unavailable
37
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
39
STAY 1
B9T-F8356-00-00
Unavailable
40
BOLT, BUTTON HEAD
92012-06014-00
Unavailable
41
BOLT, FLANGE
95022-06012-00
Unavailable
42
BRACKET 1
B08-F334G-00-00
Unavailable
43
DAMPER
2SN-H4527-00-00
Unavailable
44
BOLT, HEXAGON SOCK
90110-06865-00
Unavailable
45
BRACKET
B9T-H454L-00-00
Unavailable
46
MOLD, FUEL TANK
B3M-F4188-00-00
Unavailable
