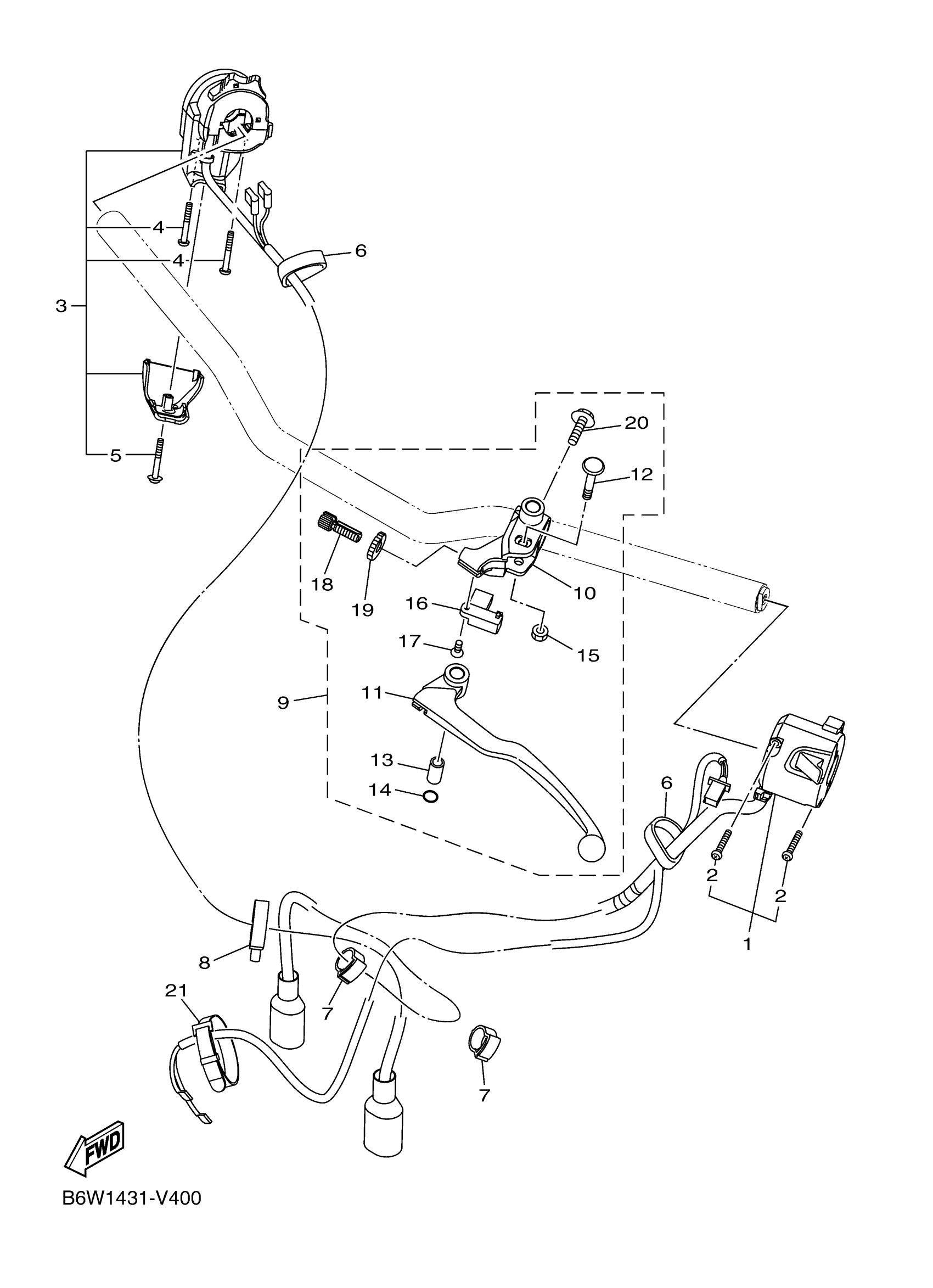

Yamaha MT03RGY (MT-03) B5WM 2024 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

SWITCH, HANDLE 4

B9T-H3972-01-00

$94.99

2

SCREW, PAN HEAD

98517-04025-00

Unavailable

3

SWITCH, HANDLE 2

B9T-H3975-01-00

$61.99

4

SCREW, PAN

98507-04030-00

Unavailable

5

. SCREW, WITH WASHER

97607-04230-00

Unavailable

6

BAND, SWITCH CORD

3RS-H3936-00-00

$0.43

7

CLAMP

90464-16003-00

$7.49

8

CLAMP

90464-30001-00

$7.49

9

LEVER HOLDER ASSY (LEFT)

1WD-H2910-00-00

$99.99

10

HOLDER, LEVER 1

1WD-H2911-00-00

$17.99

11

LEVER 1

1WD-H3912-00-00

$12.49

12

BOLT, LEVER

31A-83945-00-00

$5.49

13

COLLAR, LEVER 1

31A-83913-00-00

$22.99

14

O-RING (260)

93210-10118-00

$7.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

SWITCH

5BP-H2917-00-00

Unavailable

17

SCREW, FLAT

98707-03008-00

Unavailable

18

BOLT

90123-08002-00

Unavailable

19

NUT

90179-08030-00

Unavailable

20

BOLT, WITH WASHER

97507-06525-00

Unavailable

21

BAND, SWITCH CORD

25G-83936-01-00

Unavailable
