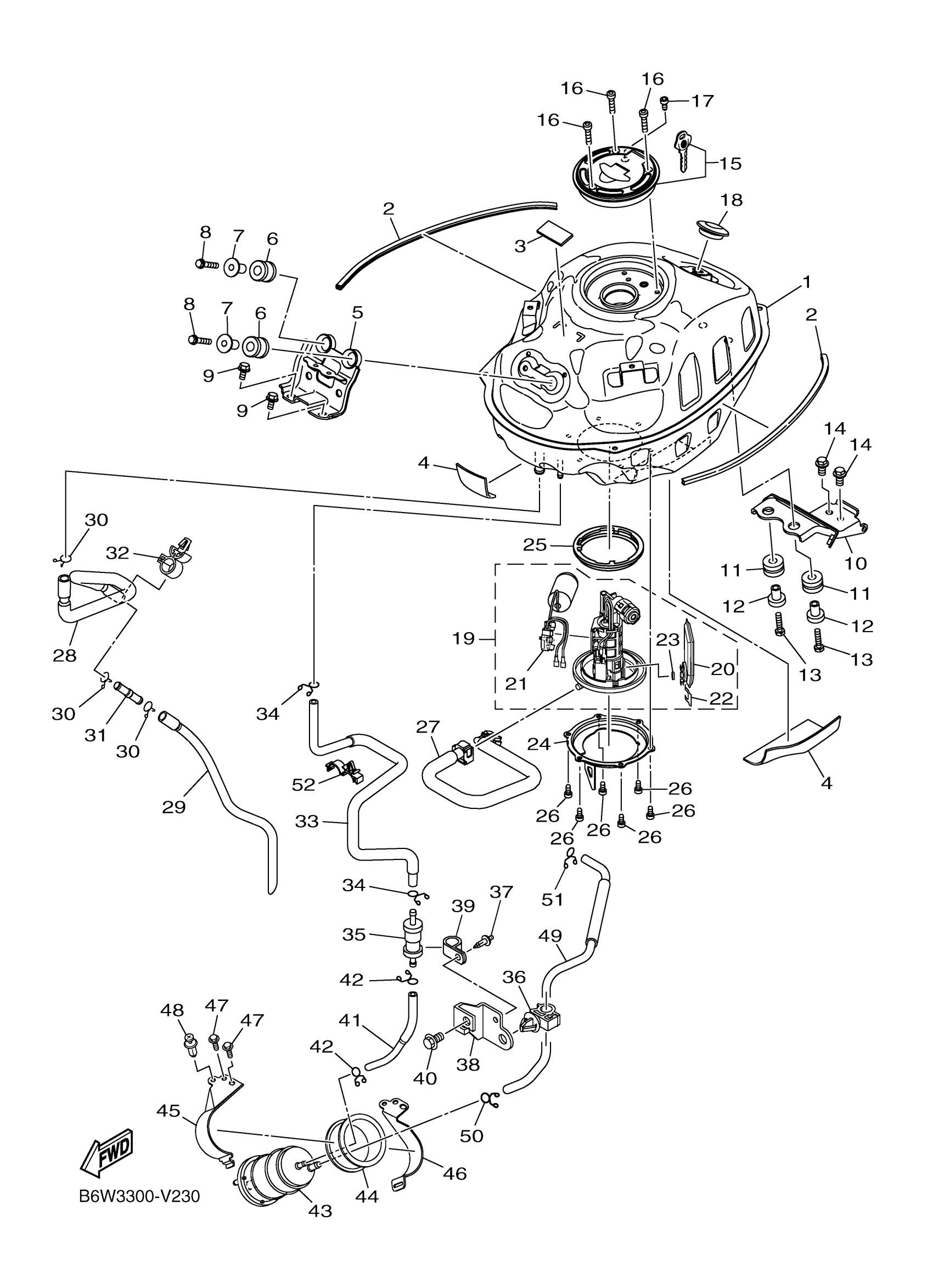

Yamaha MT03RGY (MT-03) B5WM 2024 FUEL TANK Diagram
#
1
FUEL TANK COMP.
BS7-F4110-00-00
Unavailable
2
MOLD, FUEL TANK
BS7-F4188-00-00
Unavailable
11
GROMMET
90480-15807-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
17
BOLT
91312-05010-00
Unavailable
18
GROMMET
90480-01806-00
Unavailable
19
FUEL PUMP COMP.
BS7-E3907-01-00
Unavailable
20
FILTER
3C1-E3915-00-00
Unavailable
21
SENDER UNIT ASSY, FUEL METER
BS7-H5752-00-00
Unavailable
22
CLIP
3C1-F4519-00-00
Unavailable
23
GASKET
3C1-24512-00-00
Unavailable
24
BRACKET, FUEL PUMP
BS7-F4491-00-00
Unavailable
25
O-RING
3C1-F4486-00-00
Unavailable
26
BOLT
91312-05010-00
Unavailable
27
PIPE, FUEL 1
1WD-E3971-02-00
Unavailable
28
PIPE 2
1WD-F4312-01-00
Unavailable
29
PIPE 4
B9T-F4314-00-00
Unavailable
30
CLIP (806-24358-00)
90467-15012-00
Unavailable
31
PIPE, JOINT 1
1WD-F4376-00-00
Unavailable
32
CLAMP
90464-16012-00
Unavailable
33
PIPE 4
2MS-F4314-01-00
Unavailable
34
CLIP
90467-090A2-00
Unavailable
35
ROLL OVER VALVE ASSY
1DW-F4180-02-00
Unavailable
36
CLAMP
90464-10008-00
Unavailable
37
RIVET
90269-05008-00
Unavailable
38
BRACKET, CANISTOR
2MS-F419F-00-00
Unavailable
39
CLAMP
90464-15014-00
Unavailable
40
BOLT, SMALL FLANGE
95027-08012-00
Unavailable
41
PIPE 5 (2MS1)
2MS-F4315-00-00
Unavailable
42
CLIP
90467-090A2-00
Unavailable
43
CANISTER ASSY
2MS-F4170-00-00
Unavailable
44
BAND
2MS-F483H-00-00
Unavailable
45
BRACKET, CANISTER (2MS1)
2MS-F115R-00-00
Unavailable
46
BRACKET, CANISTER (2MS1)
2MS-F134X-00-00
Unavailable
47
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
48
RIVET
90269-06816-00
Unavailable
49
PIPE 6 (2MS1)
2MS-F4316-00-00
Unavailable
50
CLIP (8J7)
90467-11009-00
Unavailable
51
CLIP
90467-090A2-00
Unavailable
52
CLAMP
90464-16006-00
Unavailable
