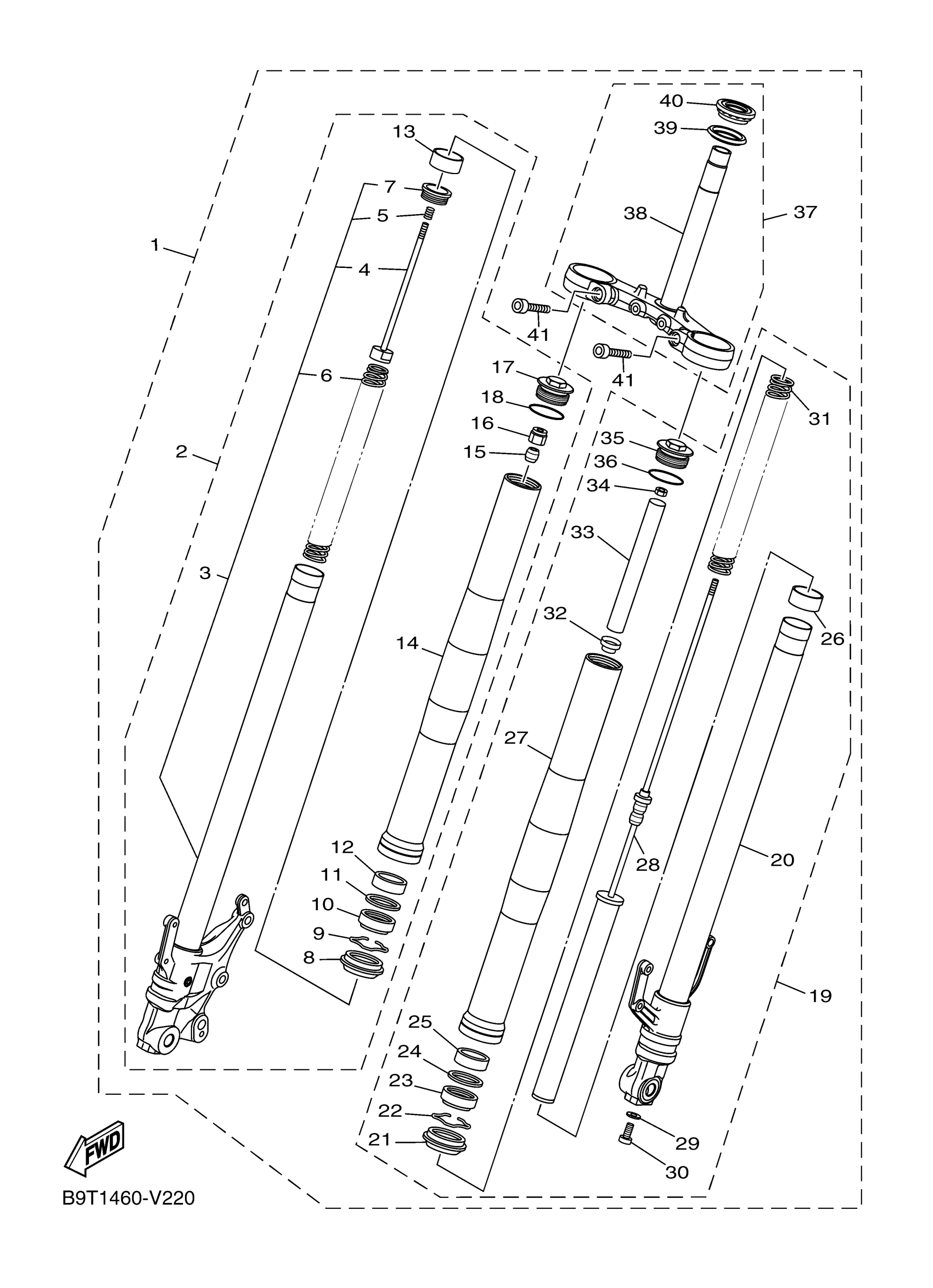

Yamaha MT03RGY (MT-03) B5WM 2024 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY

B9T-F3100-10-00

$886.99

2

FRONT FORK ASSY (R

B9T-F3103-10-00

$366.99

3

INNER TUBE COMP.2

B9T-F3120-10-00

Unavailable

4

ROD COMP. (BK61)

BK6-F330G-00-00

Unavailable

5

SPRING, SHOCK ABSORBER 2 (BK61

3AH-22222-00-00

$4.56

6

SPRING, FRONT FORK

B9T-F3141-00-00

Unavailable

7

... CAP

BK6-F319U-00-00

Unavailable

8

SEAL, DUST

B48-F3144-00-00

$28.99

9

RING, SNAP

3R4-23153-00-00

$8.99

10

OIL SEAL (BK61)

BK6-F3145-00-00

$8.49

11

WASHER, SPRING UPPER

31A-23149-31-00

$7.99

12

METAL, SLIDE

31A-23125-31-00

$35.99

13

PISTON, FRONT FORK (BK61)

BK6-F3171-00-00

$9.49

14

TUBE, OUTER (L.H)

B9T-F3126-00-00

Unavailable

15

BUMP, STOP (BK61)

BK6-F332K-00-00

$7.49

16

NUT, SPECIAL (BK61)

BK6-F3393-00-00

Unavailable

17

BOLT, CAP

BS7-F3111-00-00

Unavailable

18

O-RING

4V4-23188-L1-00

Unavailable

19

FRONT FORK ASSY (L

B9T-F3102-00-00

Unavailable

20

INNER TUBE COMP.1

BS7-F3110-00-00

Unavailable

21

SEAL, DUST

B48-F3144-00-00

$28.99

22

RING, SNAP

3R4-23153-00-00

$8.99

23

OIL SEAL (BK61)

BK6-F3145-00-00

$8.49

24

WASHER, SPRING UPPER

31A-23149-31-00

$7.99

25

METAL, SLIDE

31A-23125-31-00

$35.99

26

PISTON, FRONT FORK (BK61)

BK6-F3171-00-00

$9.49

27

TUBE, OUTER (L.H)

B9T-F3126-00-00

Unavailable

28

CYLINDER COMP., FR

B9T-F3170-00-00

Unavailable

29

GASKET

2BU-F3158-00-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

31

SPRING, FRONT FORK

B9T-F3141-00-00

Unavailable

32

GUIDE, SPRING (BK61)

BK6-F3117-00-00

Unavailable

33

SPACER

BS7-F3118-00-00

Unavailable

34

NUT (BK61)

BK6-F3357-00-00

Unavailable

35

BOLT, CAP

BS7-F3111-00-00

Unavailable

36

O-RING

4V4-23188-L1-00

Unavailable

37

UNDER BRACKET ASSY

BS7-F334M-00-00

Unavailable

38

UNDER BRACKET COMP.

BS7-F3340-00-00

Unavailable

39

SEAL, STEERING

3FV-23462-00-00

Unavailable

40

BEARING(3FV)

93399-99932-00

Unavailable

41

BOLT,SOCKET

91317-10040-00

Unavailable
