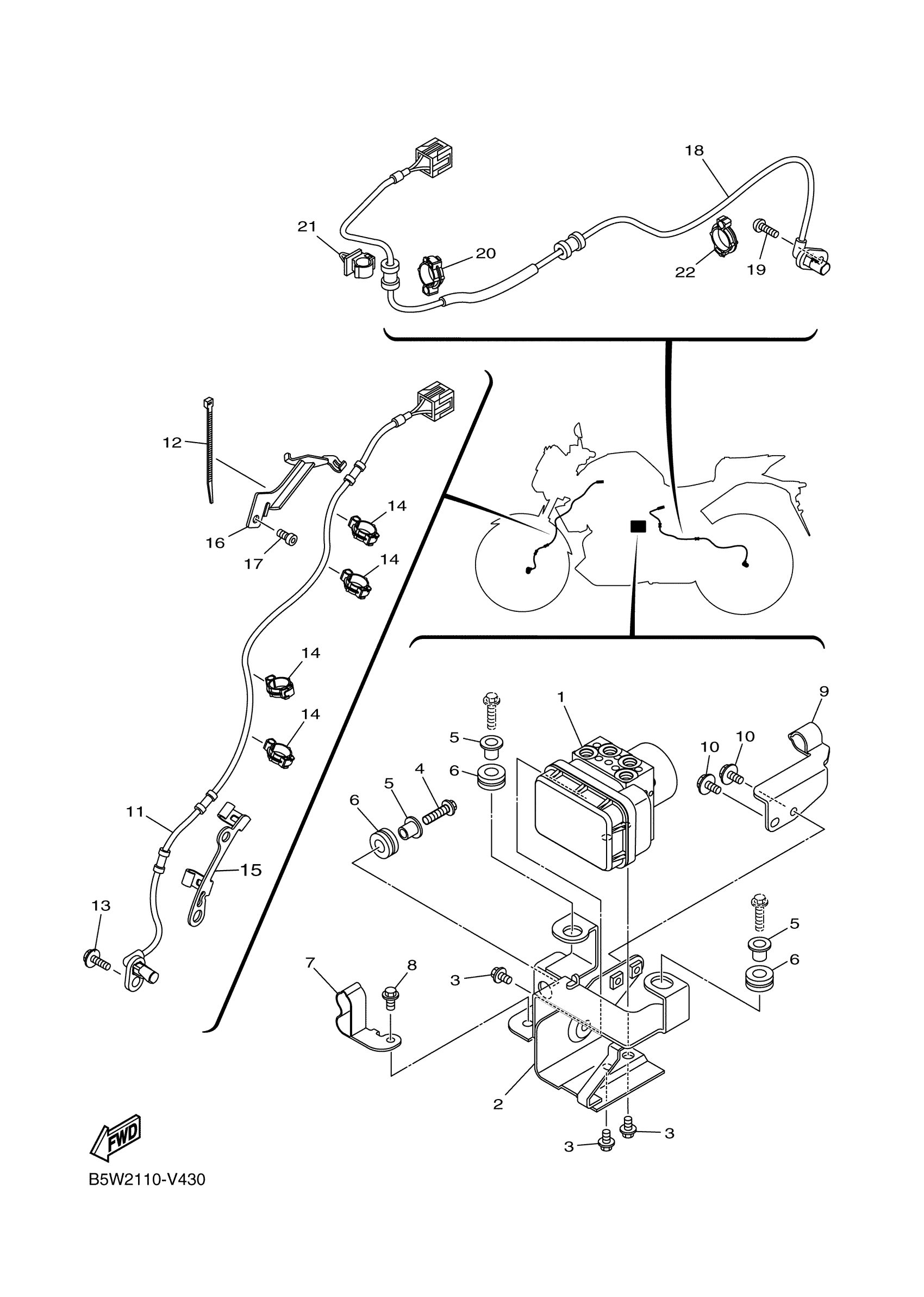

Yamaha MT03RGY (MT-03) B5WM 2024 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASS

2WD-85930-07-00

Unavailable

2

BRACKET 1

B1X-F175T-00-00

Unavailable

3

BOLT, FLANGE

95022-06010-00

$5.60

4

BOLT, FLANGE

95022-06025-00

$3.62

5

COLLAR

90387-06M60-00

Unavailable

6

GROMET (3X3)

90480-14229-00

$8.49

7

HOLDER, BRAKE HOSE

2WD-F5886-00-00

Unavailable

8

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

9

HOLDER, BRAKE HOSE 1

2WD-F5875-00-00

Unavailable

10

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

11

WHEEL SENSOR ASSY, FRONT

2WD-85970-01-00

Unavailable

12

CLAMP (5MX1)

90464-22800-00

Unavailable

13

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

14

CLAMP

90464-12013-00

$8.49

15

WIRE, HOLDER 1

B5L-F3318-00-00

$16.99

16

WIRE, HOLDER 2

B6W-F3319-00-00

Unavailable

17

BOLT,SOCKET

91317-06012-00

Unavailable

18

WHEEL SENSOR ASSY, REAR

2WD-85980-01-00

Unavailable

19

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

20

CLAMP

90464-14803-00

Unavailable

21

CLAMP

90464-10800-00

Unavailable

22

CLAMP

90464-14803-00

Unavailable
