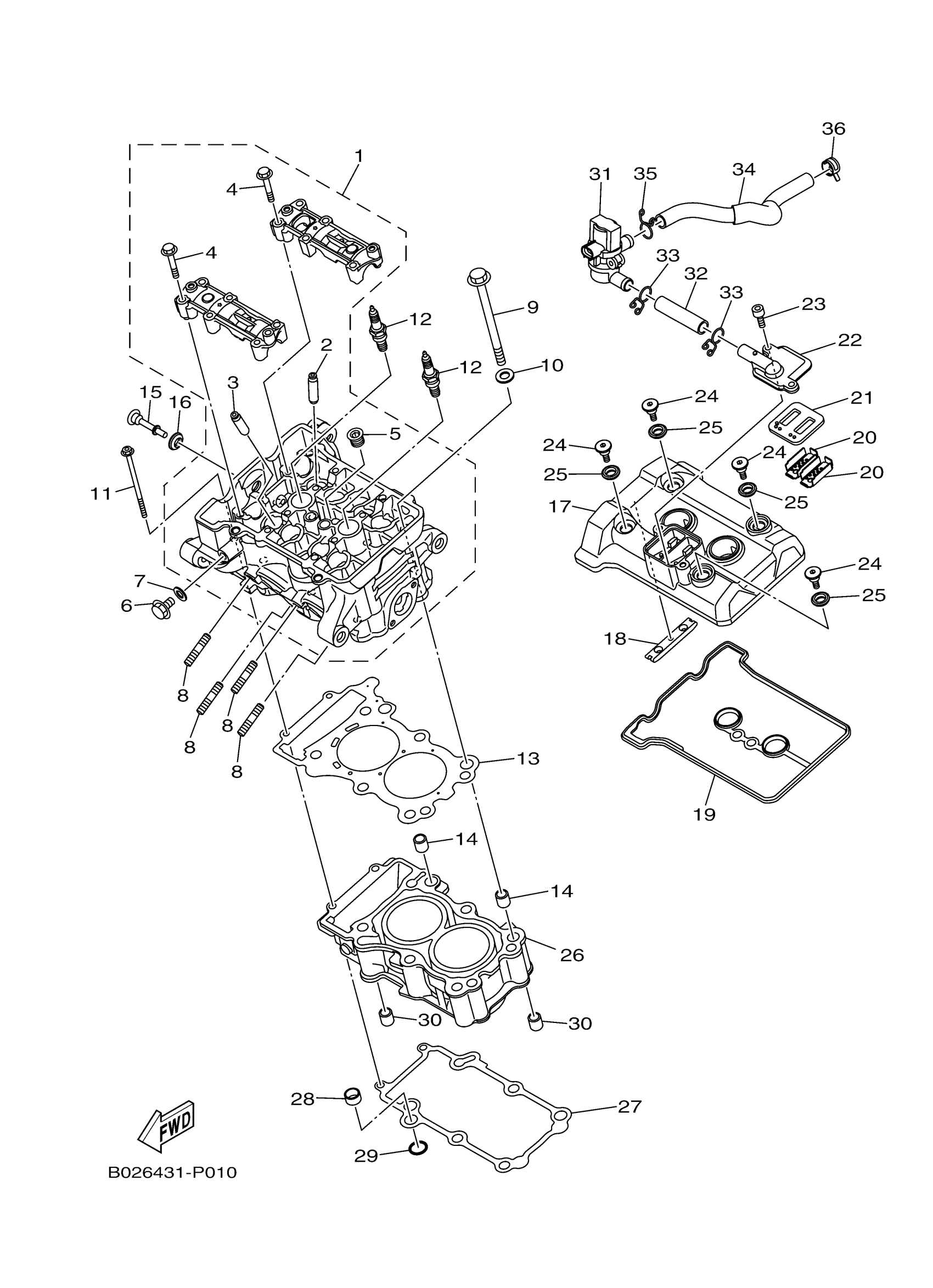

Yamaha MT03RGY (MT-03) B5WM 2024 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

2MS-E1102-11-00

Unavailable

2

. GUIDE, VALVE 1

2MS-E1133-10-00

Unavailable

3

. GUIDE, VALVE 1

1WD-E1133-10-00

Unavailable

4

BOLT, WASHER BASED

90105-06027-00

$7.49

5

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

6

BOLT, FLANGE

95022-08012-00

$12.49

7

GASKET

90430-08119-00

$6.62

8

BOLT, STUD

95612-08625-00

$7.49

9

BOLT, CYLINDER HOLDING 1

2MS-11361-00-00

$11.99

10

WASHER, PLATE

90201-10845-00

$3.25

11

BOLT, HEXAGON SOCKET HEAD

90110-06870-00

$8.49

12

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

13

GASKET, CYLINDER HEAD 1

2MS-E1181-00-00

$31.99

14

PIN, DOWEL

99530-14016-00

$3.80

15

BOLT

90109-06898-00

$17.99

16

RUBBER, MOUNT 1

1WD-E111G-00-00

Unavailable

17

COVER, CYLINDER HEAD 1

1WD-E1191-00-00

Unavailable

18

GUIDE, STOPPER 2

1WD-E2241-01-00

Unavailable

19

GASKET, HEAD COVER 1

1WD-E1193-00-00

Unavailable

20

PLATE

5VY-1482K-00-00

Unavailable

21

REED VALVE ASSY

1WD-E4890-00-00

Unavailable

22

CAP, CASE

1WD-E4899-00-00

Unavailable

23

BOLT

91332-06020-00

Unavailable

24

BOLT

90109-06899-00

Unavailable

25

RUBBER, MOUNT 1

1WD-E111G-00-00

Unavailable

26

CYLINDER 1

2MS-E1311-10-00

Unavailable

27

GASKET, CYLINDER

B1X-E1351-00-00

Unavailable

28

PIPE, WATER

5NL-12564-00-00

Unavailable

29

O-RING (M124)

93210-16772-00

Unavailable

30

PIN, DOWEL

99530-14016-00

$3.80

31

AIR CUT VALVE ASSY

1WD-E4840-10-00

Unavailable

32

HOSE, BEND 1

1WD-E4881-00-00

Unavailable

33

CLIP(62Y)

90467-15M14-00

Unavailable

34

HOSE, BEND 2

1WD-E4882-01-00

Unavailable

35

CLIP(62Y)

90467-15M14-00

Unavailable

36

CLIP

90467-16800-00

Unavailable
