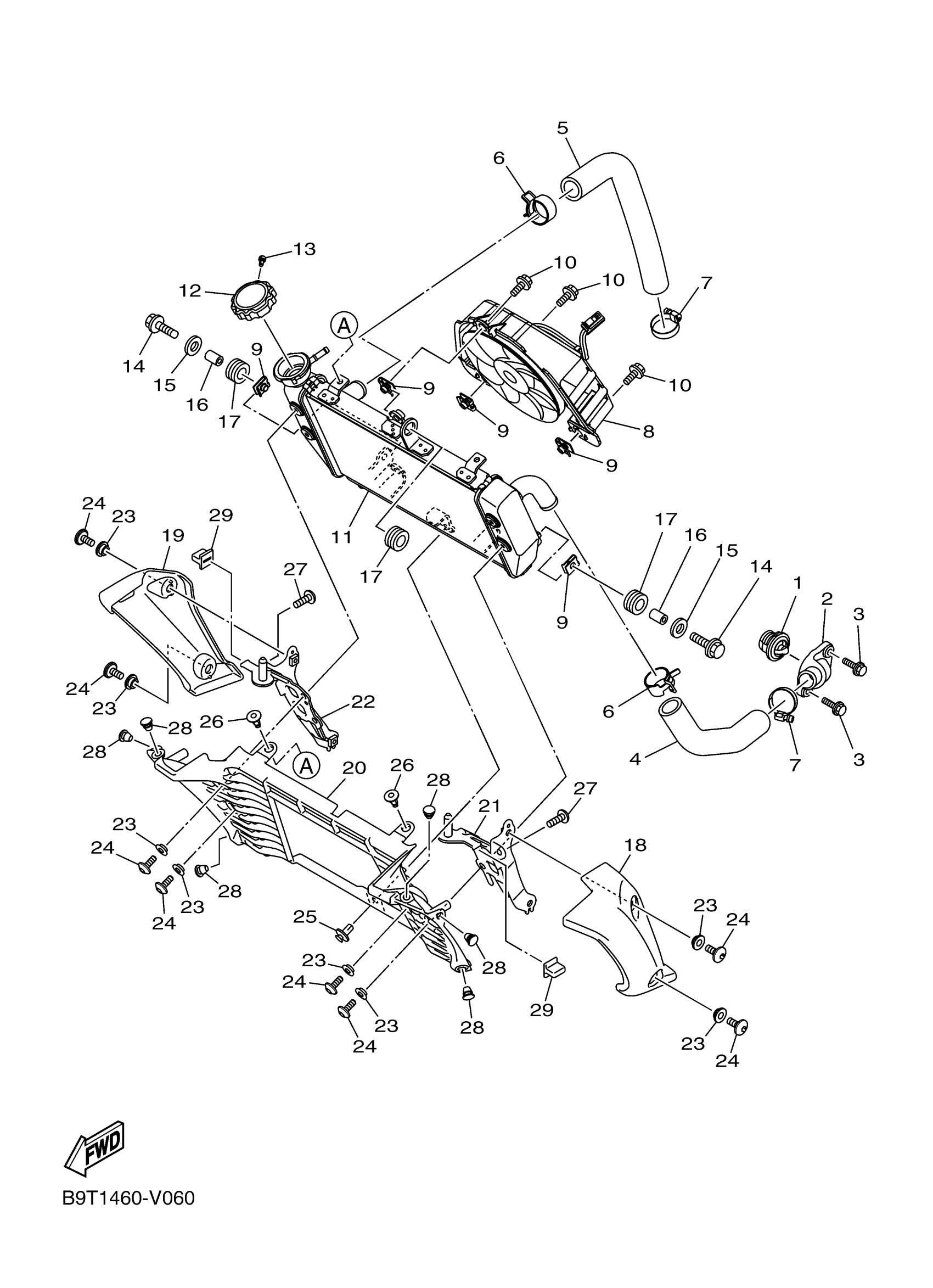

Yamaha MT03PL (MT-03) B5WH 2023 RADIATOR & HOSE Diagram

#

Description
Price

1

THERMOSTAT

5P0-12411-01-00

Unavailable

2

COVER, THERMOSTAT

1WD-E2413-00-00

$19.99

3

BOLT, FLANGE

95022-06020-00

$3.62

4

HOSE 2

2MS-E2577-00-00

$10.49

5

HOSE 3

1WD-E2578-00-00

$17.99

6

CLIP

90467-250A1-00

$3.28

7

HOSE CLAMP ASSY

90450-28001-00

$14.99

8

BLOWER ASSY

2MS-E2405-00-00

$141.99

9

NUT 1

1WD-E2671-00-00

$2.28

10

BOLT, BLOWER HOLDING

5YP-E2675-00-00

$4.11

11

RADIATOR COMP

B04-E2461-00-00

Unavailable

12

CAP, RADIATOR

B04-E2462-00-00

$31.99

13

SCREW, TAPPING

97707-30505-00

$0.54

14

BOLT, FLANGE

95817-06025-00

Unavailable

15

WASHER PLATE 137241870000

90201-06072-00

$9.49

16

COLLAR

90387-06144-00

Unavailable

17

GROMMET

90480-15808-00

Unavailable

18

GUIDE, AIR 1

B9T-F137U-00-00

Unavailable

19

GUIDE, AIR 2

B9T-F137V-00-00

Unavailable

20

DUCT, AIR

B9T-F1557-00-00

Unavailable

21

BRACKET 1

B9T-F175T-00-00

Unavailable

22

BRACKET 2

B9T-F175U-00-00

Unavailable

23

COLLAR

90387-06130-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable

25

RIVET

90269-07012-00

Unavailable

26

RIVET

90269-06816-00

Unavailable

27

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

28

PLUG(1NL)

90338-07180-00

Unavailable

29

DAMPER, LOCATING 1

45P-F1778-00-00

Unavailable
