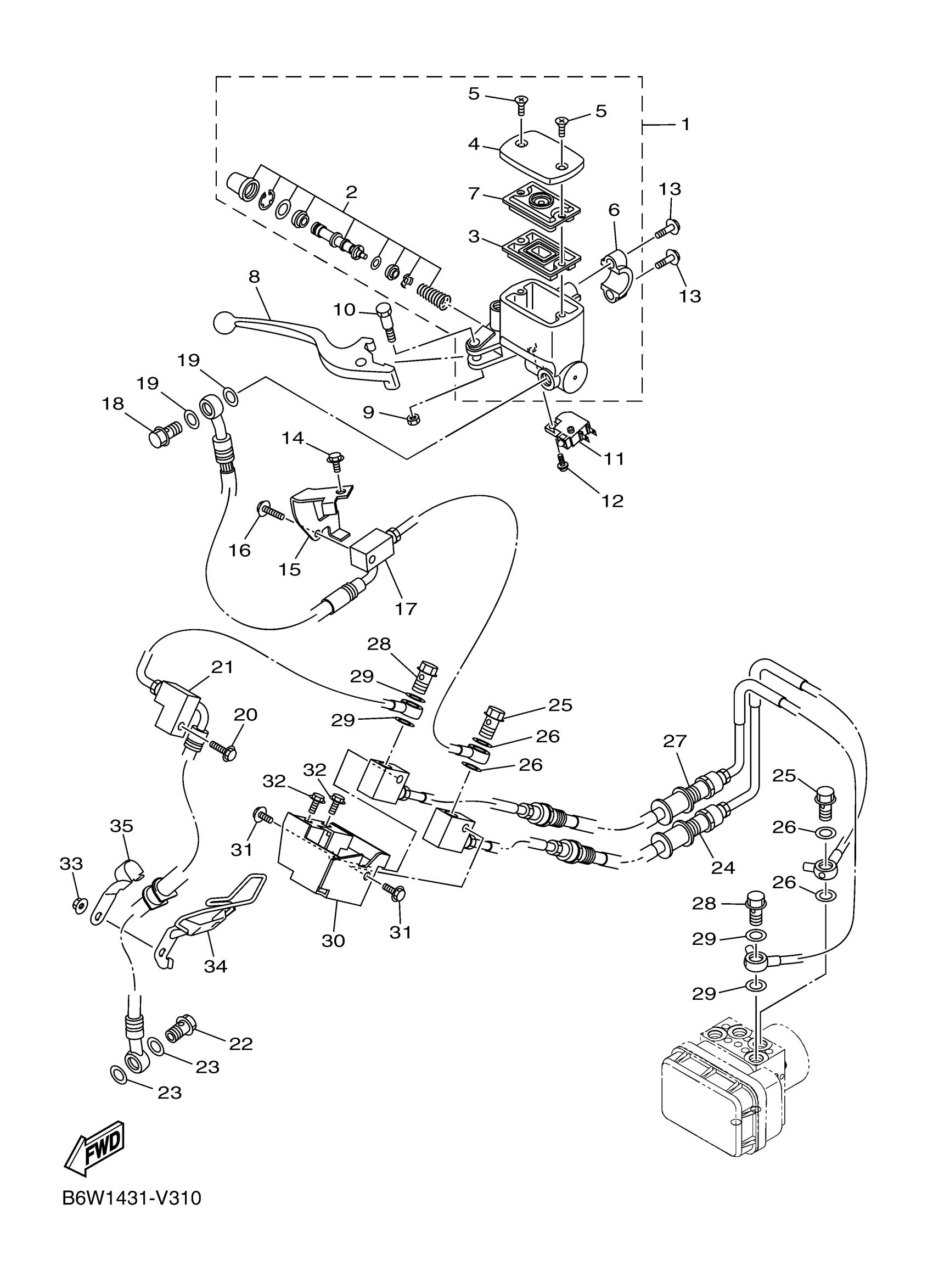

Yamaha MT03NL (MT-03) B5WD 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

1WD-F5870-00-00

Unavailable

2

CYLINDER KIT, MASTER

1WD-F5807-00-00

Unavailable

3

. DIAPHRAGM, RESERVOIR

5RB-25854-00-00

Unavailable

4

CAP, RESERVOIR

1WD-F5852-00-00

$7.49

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BUSH,DIAPHRAGM

3C1-F5855-00-00

$0.43

8

LEVER 2

1WD-H3922-00-00

$9.49

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

BOLT (4L0)

90109-06577-00

$5.60

11

FRONT STOP SWITCH

2DP-H3980-01-00

$12.49

12

SCREW, PAN HEAD WITH WASHER

97602-04216-00

Unavailable

13

BOLT, SMALL FLANGE

95027-06025-00

$4.16

14

BOLT, FLANGE DEEP

95D02-06012-00

$0.54

15

HOLDER, BRAKE HOSE 5

2WD-F588F-00-00

Unavailable

16

BOLT, FLANGE

95022-06020-00

Unavailable

17

HOSE, BRAKE 1

B6W-F5872-01-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable

20

BOLT, FLANGE

95022-06020-00

Unavailable

21

HOSE, BRAKE 4

B6W-F581J-00-00

Unavailable

22

BOLT, UNION(3GM)

90401-10159-00

Unavailable

23

WASHER, PLATE(481)

90201-10118-00

Unavailable

24

HOSE, BRAKE 2

2WD-F5873-00-00

Unavailable

25

BOLT, UNION(3GM)

90401-10159-00

Unavailable

26

WASHER, PLATE(481)

90201-10118-00

Unavailable

27

HOSE, BRAKE

B5L-F5874-00-00

Unavailable

28

BOLT, UNION(3GM)

90401-10159-00

Unavailable

29

WASHER, PLATE(481)

90201-10118-00

Unavailable

30

HOLDER, BRAKE HOSE 6

2WD-F588G-00-00

Unavailable

31

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

32

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

33

NUT, CROWN(2GM)

90176-06065-00

Unavailable

34

HOLDER, BRAKE HOSE

B6W-F5887-00-00

Unavailable

35

HOLDER, BRAKE HOSE

B5L-F587A-00-00

Unavailable
