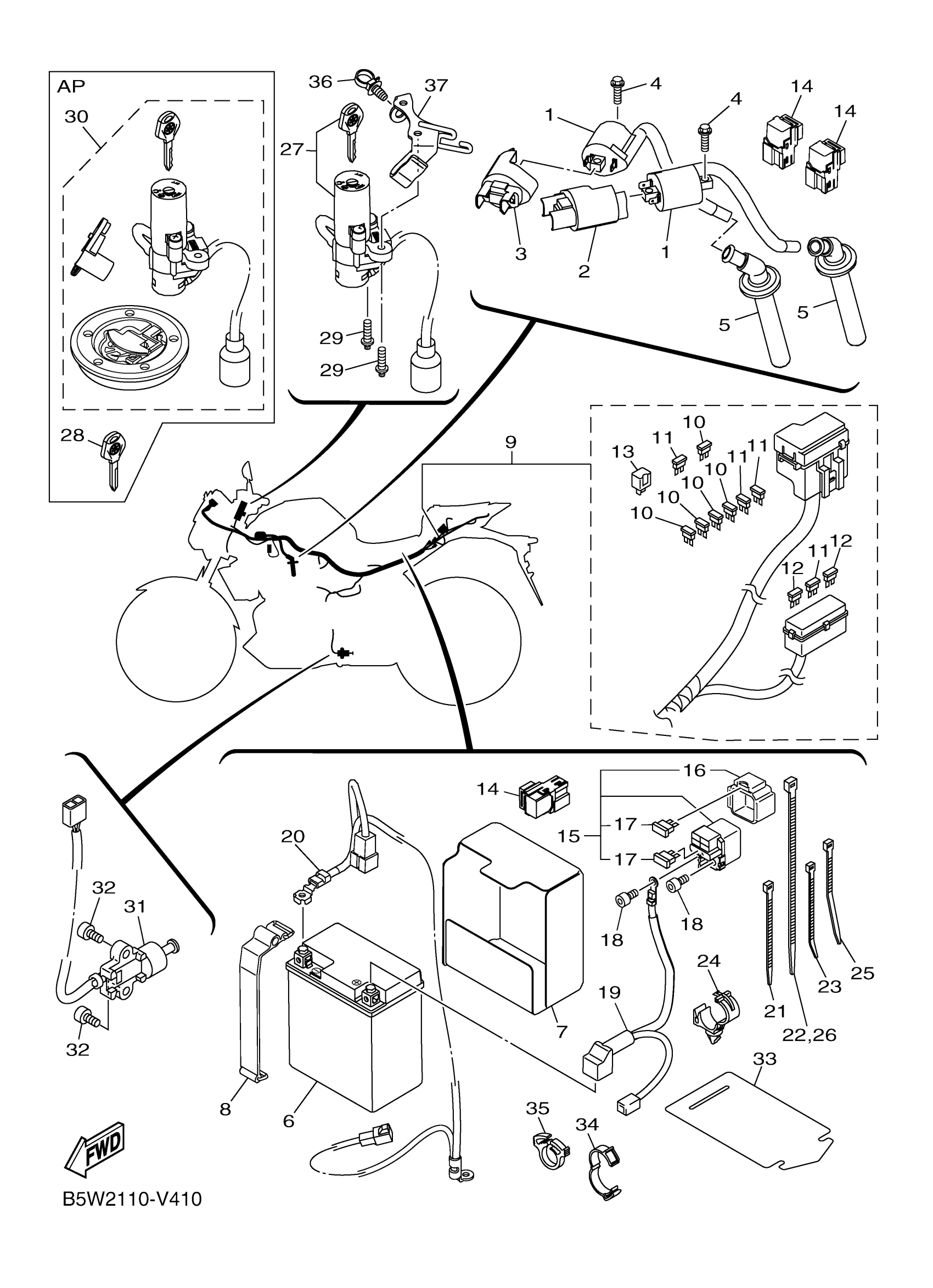

Yamaha MT03NL (MT-03) B5WD 2022 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

1WD-H2310-02-00

$18.49

2

COVER, IGNITION CO

B9T-H2314-00-00

Unavailable

3

COVER, IGNITION CO

B9T-H2314-10-00

Unavailable

4

BOLT, FLANGE

95022-06020-00

$3.62

5

PLUG CAP ASSY

1WD-H2370-00-00

Unavailable

6

BATTERY (GSGTZ8V) "FA"

GTZ-8V000-00-00

Unavailable

7

PAD, BATTERY

1WD-H2121-00-00

$10.49

8

BAND, BATTERY

1WD-H2131-00-00

$8.49

9

WIRE HARNESS ASSY

B5W-H2590-10-00

Unavailable

10

. FUSE (75A BL)

1WD-H2151-20-00

Unavailable

11

FUSE (15A-BL)

1WD-H2151-10-00

$9.49

12

FUSE

1WD-H2151-30-00

$2.39

13

DIODE ASSY

4B4-H1980-00-00

$30.99

14

RELAY ASSY

1WD-H1950-00-00

$43.99

15

STARTER RELAY ASSY

1WD-H1940-00-00

$34.99

16

BAND

1WD-H2155-00-00

Unavailable

17

FUSE

1WD-H2151-01-00

Unavailable

18

BOLT

91312-05008-00

Unavailable

19

WIRE, PLUS LEAD

2WD-H2115-00-00

Unavailable

20

WIRE, MINUS LEAD

B5W-H2116-00-00

Unavailable

21

BAND

1UA-82591-00-00

Unavailable

22

CLAMP

90464-70800-00

Unavailable

23

CLAMP (5MX1)

90464-22800-00

Unavailable

24

CLAMP

90464-20010-00

Unavailable

25

CLAMP

90464-36005-00

Unavailable

26

CLAMP

90464-70800-00

Unavailable

27

MAIN SWITCH STEERI

B9T-H2501-00-00

Unavailable

28

BLANK KEY

1WD-H2511-09-00

Unavailable

29

BOLT

90109-06282-00

Unavailable

30

MAIN SW. STRG. LOCK SUB ASSY

B9T-XH250-10-00

Unavailable

31

SWITCH, SIDE STAND

1WD-H2566-02-00

Unavailable

32

BOLT, SOCKET

91317-05018-00

Unavailable

33

BAND

1WD-H2591-00-00

Unavailable

34

CLAMP

90464-26001-00

Unavailable

35

CLAMP

90464-08009-00

Unavailable

36

CLAMP

90464-30009-00

Unavailable

37

STAY 3

B9T-F8358-00-00

Unavailable
