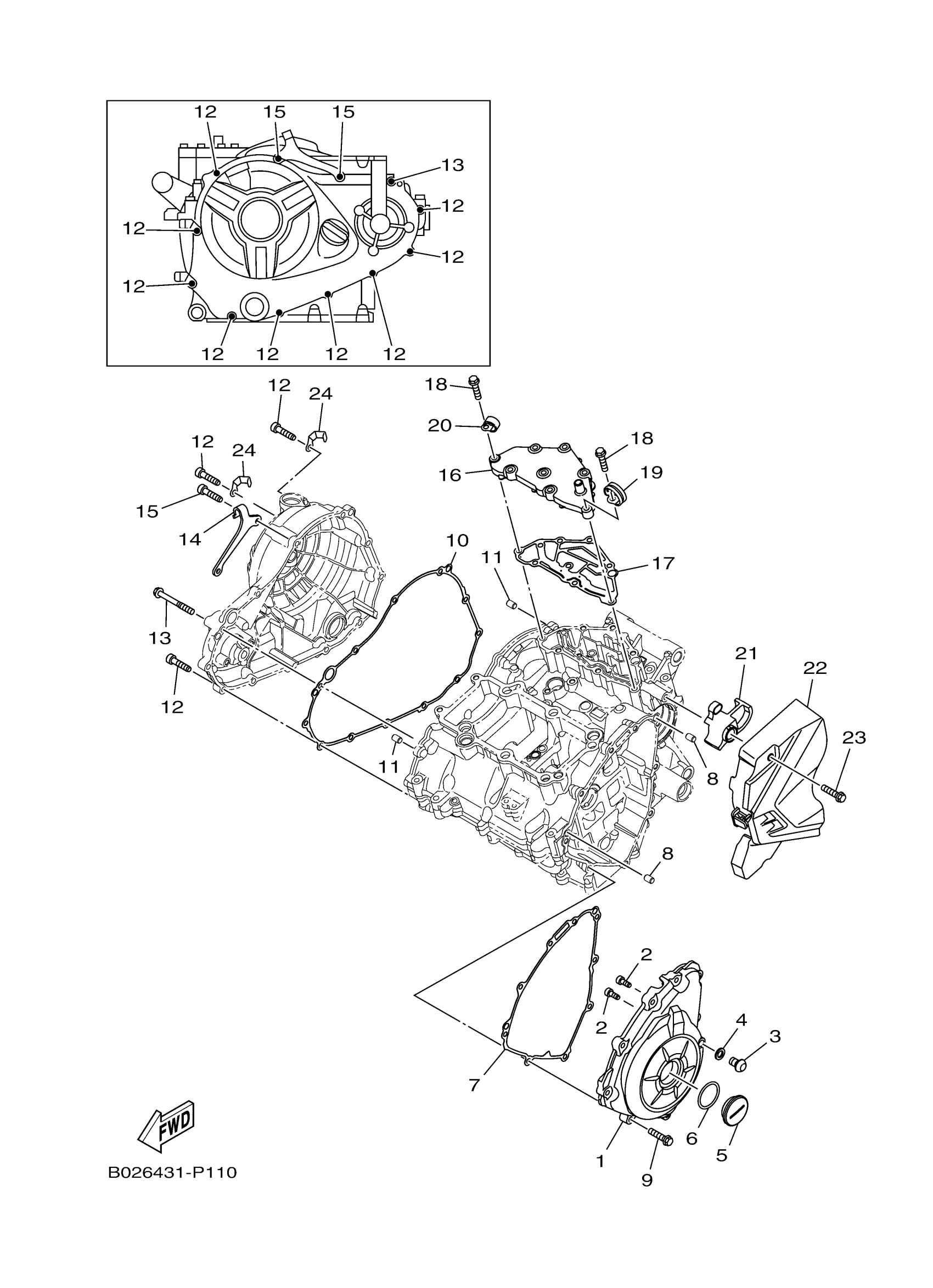

Yamaha MT03NL (MT-03) B5WD 2022 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1WD-E5411-00-00

$83.72

2

BOLT(47X)

91312-05012-00

$2.42

3

BOLT, BUTTON HEAD

92014-08012-00

$6.76

4

. GASKET

90430-08143-00

$2.88

5

PLUG, STRAIGHT SCREW

90340-32819-00

$9.99

6

O-RING

93210-32816-00

$2.34

7

GASKET, CRANKCASE COVER 1

1WD-E5451-00-00

$4.81

8

PIN, DOWEL

99530-08012-00

$4.89

9

BOLT, FLANGE

95022-06025-00

$1.37

10

GASKET, CRANKCASE COVER 2

1WD-E5461-00-00

$45.19

11

PIN, DOWEL

99530-08012-00

$4.89

12

BOLT, FLANGE

95022-06025-00

$1.37

13

BOLT, FLANGE

95022-06050-00

$1.36

14

HOLDER, CLUTCH CABLE

2MS-E5441-10-00

$2.06

15

BOLT,SOCKET

91317-06025-00

$1.91

16

COVER

1WD-E5413-10-00

Unavailable

17

GASKET, CRANKCASE COVER 3

1WD-E5462-00-00

Unavailable

18

BOLT, FLANGE

95022-06025-00

$1.37

19

CLAMP

90462-08819-00

Unavailable

20

CLAMP

90462-08806-00

Unavailable

21

GUIDE, INLET

BS7-E5377-00-00

Unavailable

22

COVER, CHAIN CASE

1WD-E5418-00-00

Unavailable

23

BOLT, FLANGE

95022-06025-00

$1.37

24

CLAMP(4AJ)

90462-08225-00

Unavailable
