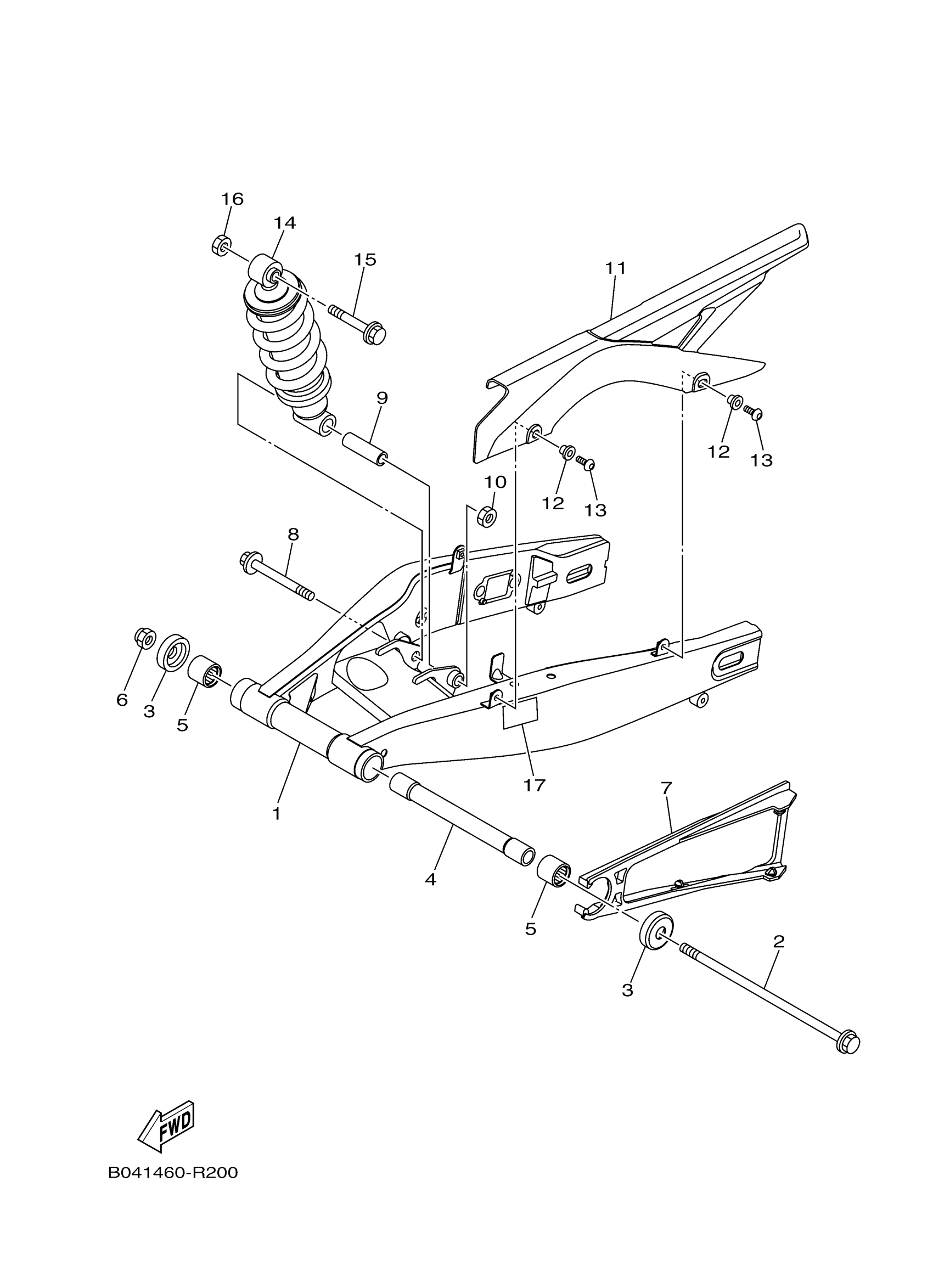

Yamaha MT03MGY (MT-03) B5W8 2021 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

1WD-F2110-00-00

$230.99

2

SHAFT, PIVOT

1WD-22141-00-00

Unavailable

3

COVER, THRUST 2

1WD-F2129-01-00

$4.56

4

BUSH

1WD-F2184-00-00

Unavailable

5

BEARING (4X7)

93320-32403-00

$46.99

6

NUT, U FLANGE

95602-14200-00

$11.49

7

SEAL, GUARD

1WD-F2151-00-00

$40.99

8

BOLT, WASHER BASED(36Y)

90105-12309-00

$11.49

9

COLLAR, ROD 1

1WD-F248B-00-00

$11.49

10

NUT, U (4PM)

95617-12100-00

$4.16

11

CASE, CHAIN

1WD-F2311-01-00

$4.73

12

COLLAR

90387-06242-00

Unavailable

13

BOLT,HEX. SOCKET BUTTON

90111-06119-00

$8.49

14

SHOCK ABSORBER ASS

BS7-F2210-20-00

Unavailable

15

BOLT, FLANGE

90105-12093-00

Unavailable

16

NUT, U (4PM)

95617-12100-00

$4.16

17

LABEL, TIRE

2MS-F1668-21-00

Unavailable
