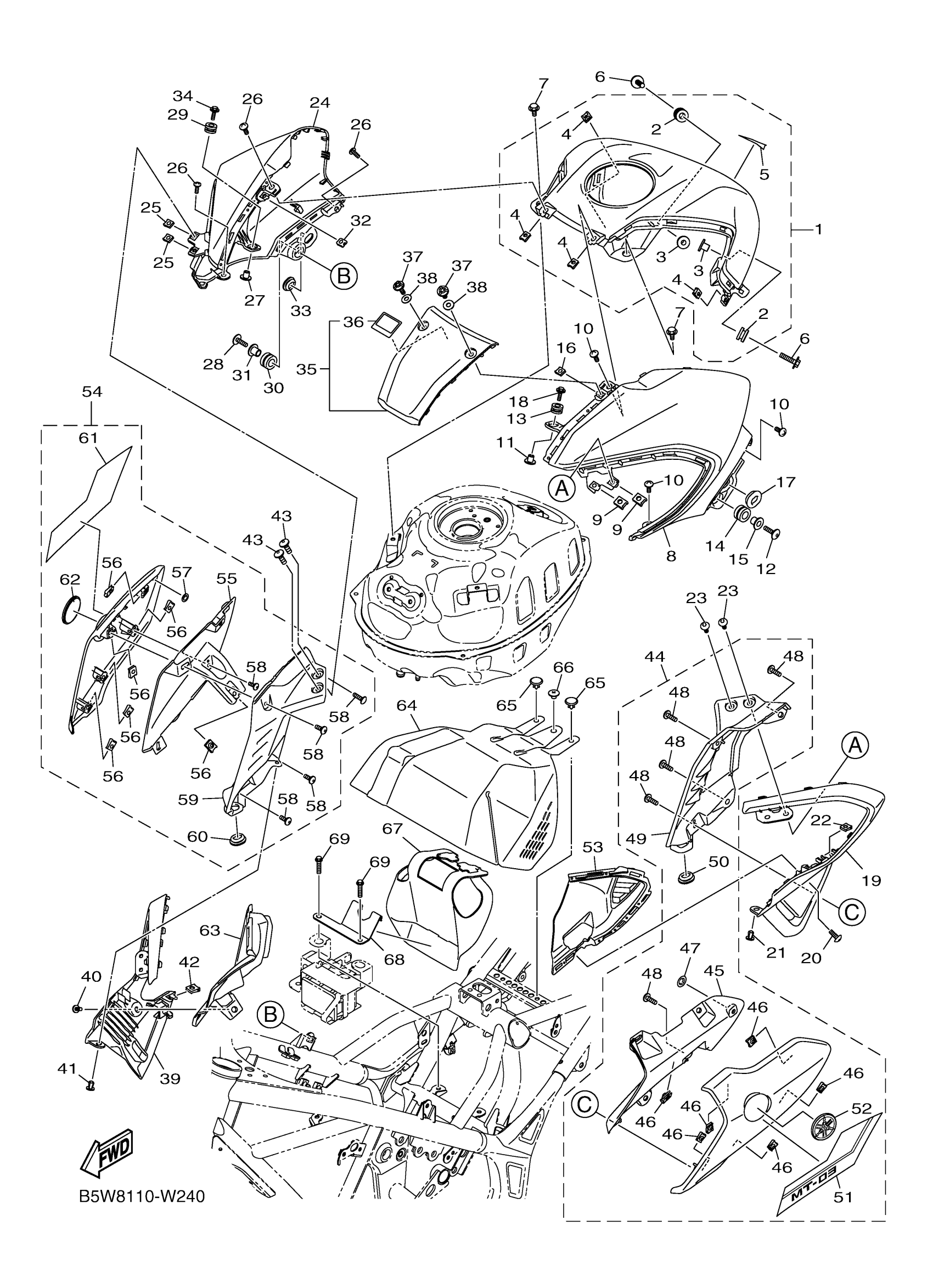

Yamaha MT03MGY (MT-03) B5W8 2021 FUEL TANK 2 Diagram

#

Description
Price

1

TANK SIDE COVER 1

B9T-XF41D-00-P3

$45.99

2

GROMMET (3P91)

90480-12808-00

$2.29

3

COLLAR

90387-06899-00

$3.24

4

NUT, SPRING(1YT)

90183-05042-00

$5.60

5

GRAPHIC, FUEL TANK 7

B04-F4254-C1-00

$0.69

6

BOLT, WITH WASHER

90119-06309-00

Unavailable

7

BOLT (B9B1)

90109-068B2-00

$0.54

8

COVER, SIDE 1

B9T-F4129-00-P4

$28.99

9

NUT, SPRING(1YT)

90183-05042-00

$5.60

10

SCREW, TAPPING

97702-50016-00

$2.39

11

COLLAR

90387-06899-00

$3.24

12

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

13

GROMMET (3P91)

90480-12808-00

$2.29

14

GROMMET

90480-17007-00

Unavailable

15

COLLAR

90387-10107-00

$5.60

16

NUT, SPRING

90183-050A6-00

Unavailable

17

GROMMET(4BH)

90480-01559-00

Unavailable

18

BOLT, W/WASHER (3V2)

90119-05020-00

Unavailable

19

DUCT 1

B9T-F838N-00-00

Unavailable

20

SCREW, ROUND TAPPING

90160-05009-00

Unavailable

21

RIVET

90269-06816-00

Unavailable

22

NUT, SPRING(1YT)

90183-05042-00

$5.60

23

SCREW, ROUND TAPPING

90160-05009-00

Unavailable

24

COVER, SIDE 2

B9T-F4139-00-P4

Unavailable

25

NUT, SPRING(1YT)

90183-05042-00

$5.60

26

SCREW, TAPPING

97702-50016-00

$2.39

27

COLLAR

90387-06899-00

$3.24

28

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

29

GROMMET (3P91)

90480-12808-00

$2.29

30

GROMMET

90480-17007-00

Unavailable

31

COLLAR

90387-10107-00

$5.60

32

NUT, SPRING

90183-050A6-00

Unavailable

33

GROMMET(4BH)

90480-01559-00

Unavailable

34

BOLT, W/WASHER (3V2)

90119-05020-00

Unavailable

35

COVER, TOP

B9T-XF17D-10-P4

Unavailable

36

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

37

BOLT,HEX. SOCKET B

90111-05056-00

Unavailable

38

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

39

DUCT 2

B9T-F838R-00-00

Unavailable

40

SCREW, ROUND TAPPING

90160-05009-00

Unavailable

41

RIVET

90269-06816-00

Unavailable

42

NUT, SPRING(1YT)

90183-05042-00

$5.60

43

SCREW, ROUND TAPPING

90160-05009-00

Unavailable

44

SCOOP & GUIDE AIR

B9T-XF137-00-P5

Unavailable

45

PANEL, INNER 1

B9T-F836K-00-00

Unavailable

46

NUT, SPRING(1YT)

90183-05042-00

$5.60

47

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

48

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

49

GUIDE, AIR 3

B9T-F137K-00-00

Unavailable

50

GROMMET(4BH)

90480-01559-00

Unavailable

51

GRAPHIC 1

B6W-F8391-50-00

Unavailable

52

EMBLEM

1WD-F413B-01-00

Unavailable

53

GRILL, AIR INTAKE

B9T-F837N-00-00

Unavailable

54

SCOOP & GUIDE AIR

B9T-XF13A-00-P5

Unavailable

55

PANEL, INNER 2

B9T-F836L-00-00

Unavailable

56

NUT, SPRING(1YT)

90183-05042-00

$5.60

57

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

58

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

59

GUIDE, AIR 4

B9T-F137L-00-00

Unavailable

60

GROMMET(4BH)

90480-01559-00

Unavailable

61

GRAPHIC 2

B6W-F8392-50-00

Unavailable

62

EMBLEM

1WD-F413B-01-00

Unavailable

63

GRILL, AIR INTAKE

B9T-F837R-00-00

Unavailable

64

COVER, AIR CLEANER

B04-E449E-00-00

Unavailable

65

RIVET(4JH)

90269-07076-00

Unavailable

66

RIVET

90269-09001-00

Unavailable

67

GUARD, FLAP

B04-F1642-00-00

Unavailable

68

STAY, FLAP

B04-F1533-00-00

Unavailable

69

BOLT, FLANGE

95022-06025-00

Unavailable
