Description

Price

1

BEARING(3FV)

93399-99931-00

$57.99

2

COVER, BALL RACE 2

5BP-F3416-10-00

$3.40

3

NUT(3XP)

90179-25615-00

$26.99

4

WASHER, PLATE (26H)

90202-26142-00

$9.49

5

WASHER, SPECIAL

5BP-F3418-00-00

$3.40

6

CROWN, HANDLE

B9T-F3435-00-00

$81.99

7

DAMPER

90388-10816-00

$23.99

8

BOLT (2A2)

90105-14102-00

$5.60

9

BOLT, SOCKET

91317-08030-00

$8.49

10

HOLDER, HANDLE UPP

B04-F3441-00-P2

Unavailable

11

BOLT, SOCKET

91317-08025-00

$8.49

12

PLUG

90338-06810-00

$2.17

13

HOLDER, HANDLE LOW

B9T-F3442-00-00

Unavailable

14

NUT, U

95617-10100-00

$8.49

15

WASHER, PLATE

90201-10074-00

$3.50

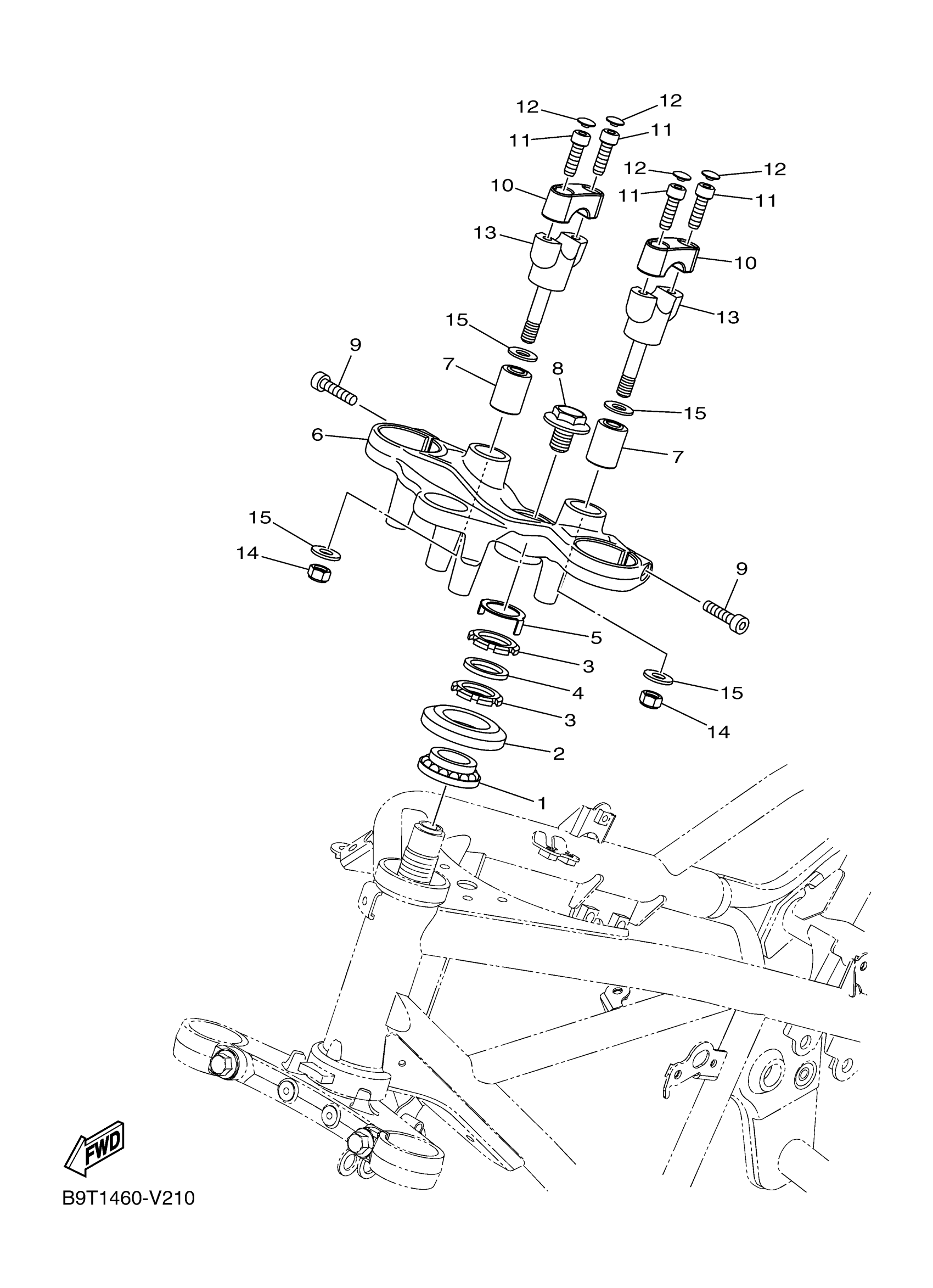

Yamaha MT03LGY (MT03) B5W20 2020 STEERING Diagram

BEARING(3FV)

COVER, BALL RACE 2

NUT(3XP)

WASHER, PLATE (26H)

WASHER, SPECIAL

CROWN, HANDLE

DAMPER

BOLT (2A2)

BOLT, SOCKET

HOLDER, HANDLE UPP

BOLT, SOCKET

PLUG

HOLDER, HANDLE LOW

NUT, U

WASHER, PLATE
