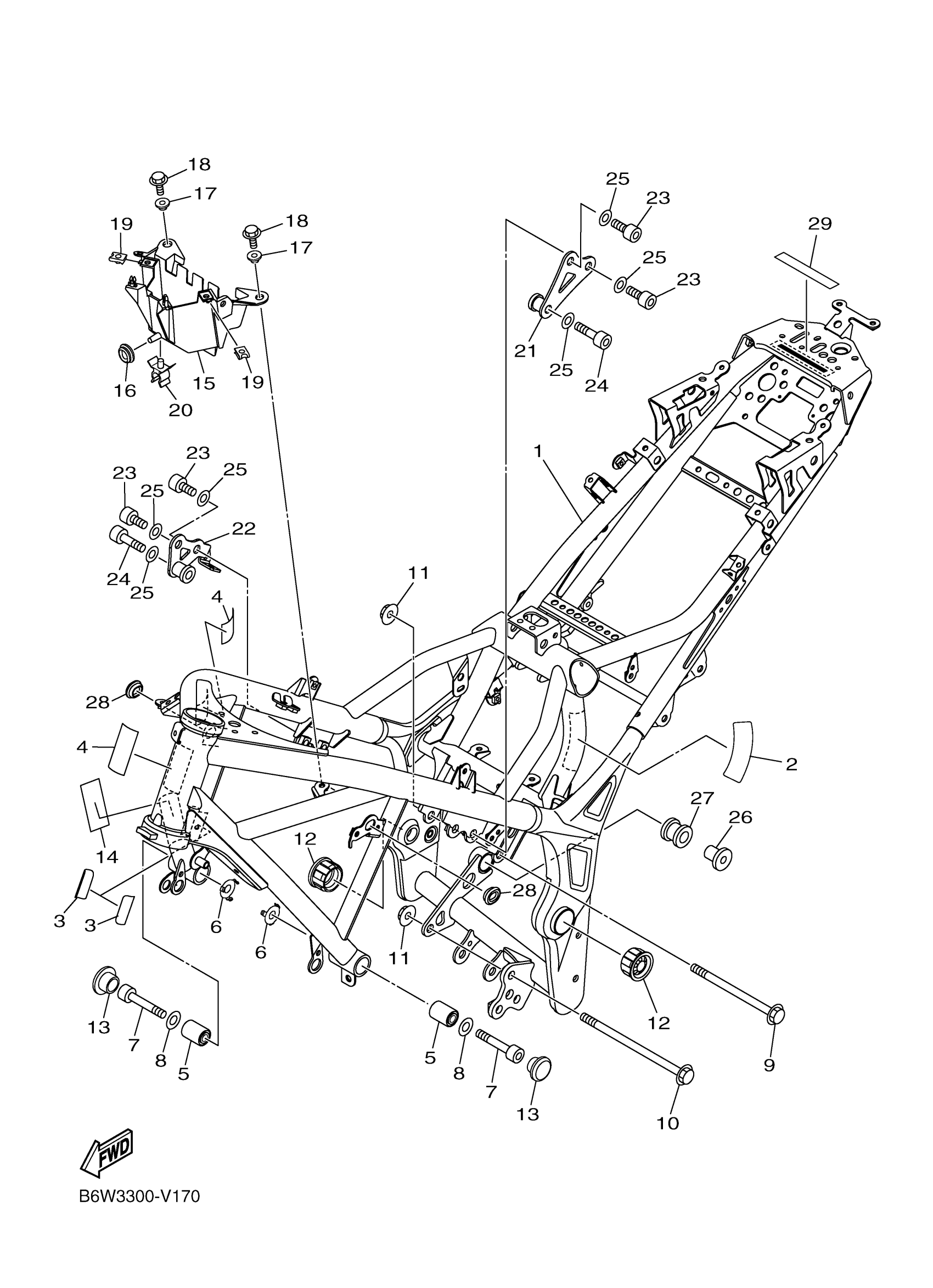

Yamaha MT03LGY (MT03) B5W20 2020 FRAME Diagram

#

Description
Price

1

FRAME COMP.

B04-F1110-01-P1

Unavailable

2

PROTECTOR

1WD-F1652-00-00

$14.99

3

PROTECTOR

1WD-F193A-00-00

$1.59

4

SEAL

5D9-F414G-00-00

$1.07

5

DAMPER

90388-10816-00

$23.99

6

PLATE 1

1WD-F191B-00-00

Unavailable

7

BOLT, SOCKET

91317-10060-00

$8.49

8

WASHER, PLATE

90201-10854-00

Unavailable

9

BOLT, FLANGE

90105-10889-00

$3.71

10

BOLT, FLANGE

90105-10891-00

$4.29

11

NUT (1S72,5C81)

90179-10805-00

Unavailable

12

COVER

1WD-F135F-00-00

$3.23

13

PLUG

90338-23801-00

$1.01

14

SEAL

B04-F414G-00-00

$2.55

15

BOX

1WD-F1171-00-00

Unavailable

16

GROMMET

90480-13014-00

Unavailable

17

COLLAR

90387-07819-00

Unavailable

18

BOLT, FLANGE

95022-06014-00

Unavailable

19

. NUT, SPRING

90183-06818-00

Unavailable

20

CLAMP

90464-12015-00

Unavailable

21

STAY 1

1WD-F122A-00-00

Unavailable

22

STAY 2

B04-F122B-00-00

Unavailable

23

BOLT, SOCKET

91317-10020-00

Unavailable

24

BOLT, SOCKET

91317-10045-00

Unavailable

25

WASHER(6TA)

92907-10600-00

Unavailable

26

COLLAR

90387-08812-00

Unavailable

27

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

28

GROMMET(4DN)

90480-01558-00

Unavailable

29

SEAL 2

2DS-F414E-00-00

Unavailable
