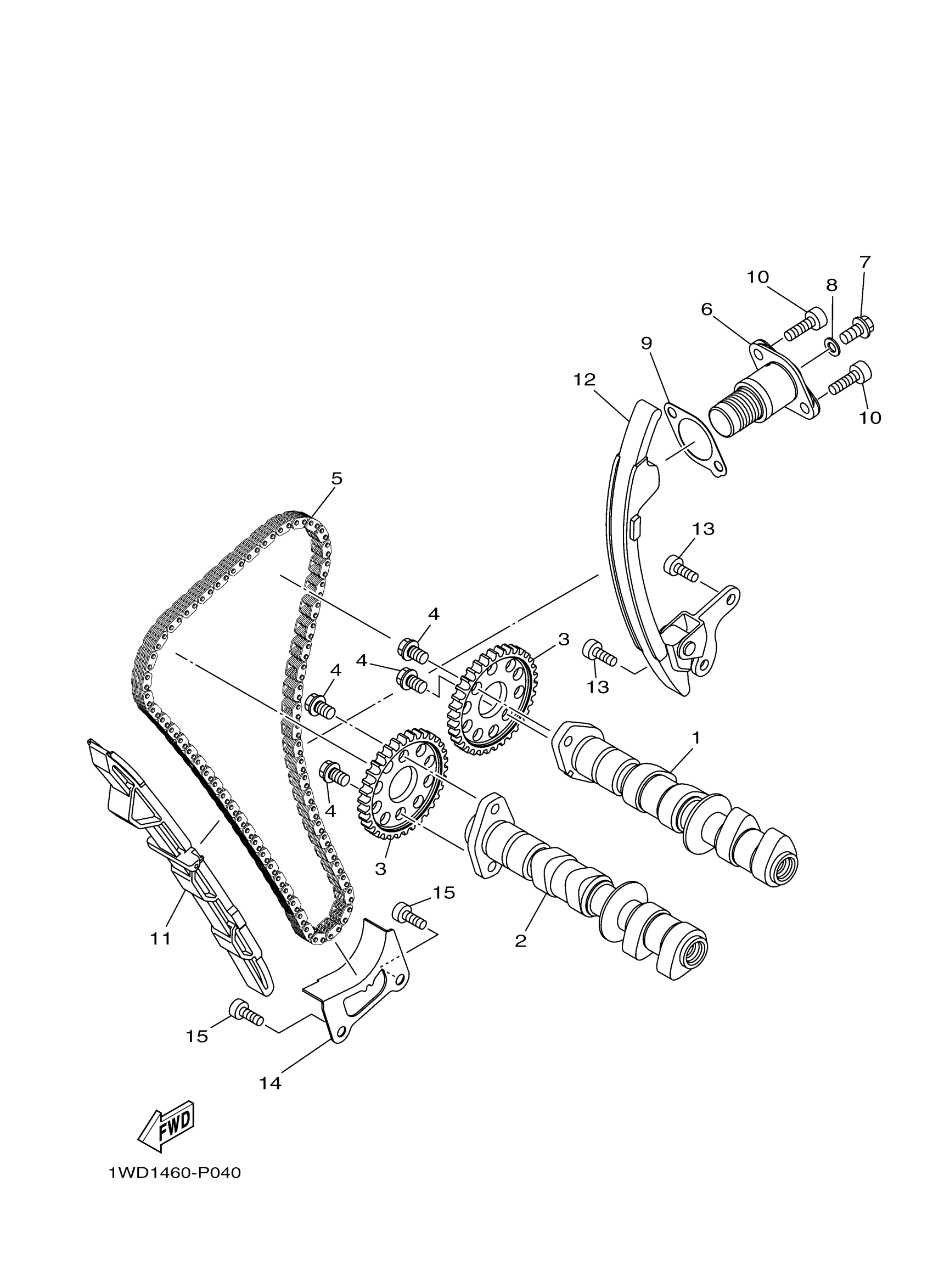

Yamaha MT03LGY (MT03) B5W20 2020 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

2MS-E2170-01-00

$149.61

2

CAMSHAFT ASSY 2

2MS-E2180-01-00

$148.81

3

SPROCKET, CAM CHAIN

1WD-E2176-00-00

$55.31

4

BOLT, FLANGE

90105-07800-00

$0.51

5

CHAIN

94591-64118-00

$56.93

6

TENSIONER ASSY, CAM CHAIN

2MS-12210-00-00

Unavailable

7

BOLT, FLANGE

95022-06008-00

$5.84

8

GASKET 256113960000

90430-06014-00

Unavailable

9

GASKET, TENSIONER CASE

1WD-E2213-00-00

$1.69

10

BOLT

91332-06020-00

$0.23

11

DAMPER, CHAIN 1

1WD-E2251-00-00

Unavailable

12

DAMPER, CHAIN 2

2MS-E2252-01-00

$197.00

13

BOLT,SOCKET

91317-06016-00

$1.15

14

COVER, CHAIN

1WD-E2256-00-00

$4.40

15

BOLT,SOCKET

91317-06016-00

$1.15
