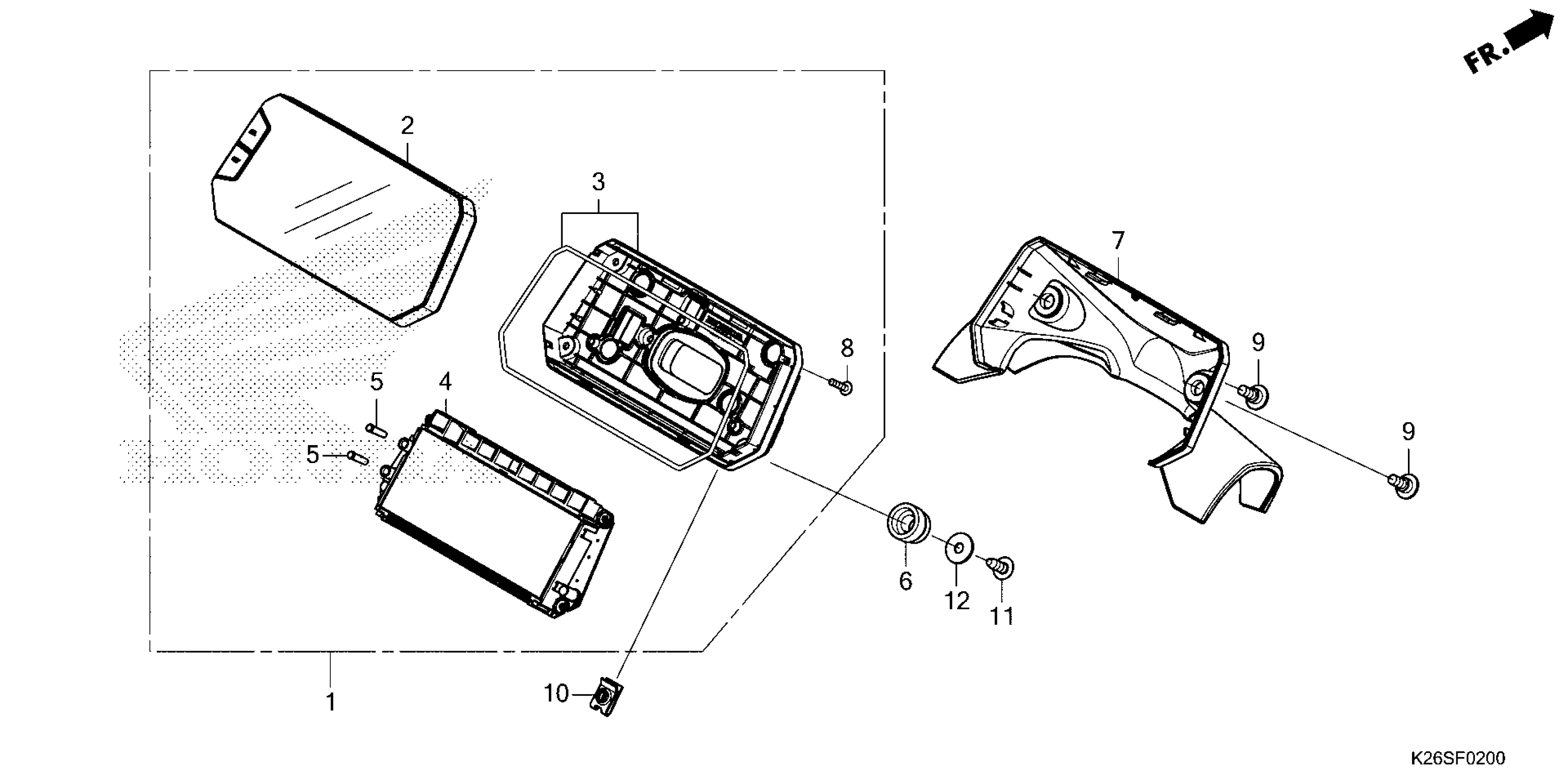

Honda MSX1252AC (25) MOTORCYCLE, THA, VIN# MLHJC921-S5300001 TO MLHJC921-S5399999 SPEEDOMETER Diagram

#

Description
Price

1

METER ASSY., COMBINATION (KPH/MPH)

37100-K26-G11

$214.31

2

CASE ASSY. (UPPER)

37110-K26-G01

$41.48

3

CASE ASSY. (LOWER)

37120-K26-G01

$16.04

4

METER, LCD

37130-K26-G11

$166.88

5

KEY, TOP

37205-K26-G01

$1.04

6

RUBBER, METER SETTING

37215-KZZ-900

$1.29

7

COVER, METER

61341-K26-G00

$9.03

8

SCREW, TAPPING (3X14)

90101-KY6-008

$2.38

9

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

10

NUT, CLIP (5MM)

90677-KAN-961

$3.79

11

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.83

12

WASHER, PLAIN (5MM)

94103-05700

$0.86
