SHROUD and STORAGE - W045305CA/IA/CB/IB/IE/CC/IC/CD/ID/IF (4990579057A04)

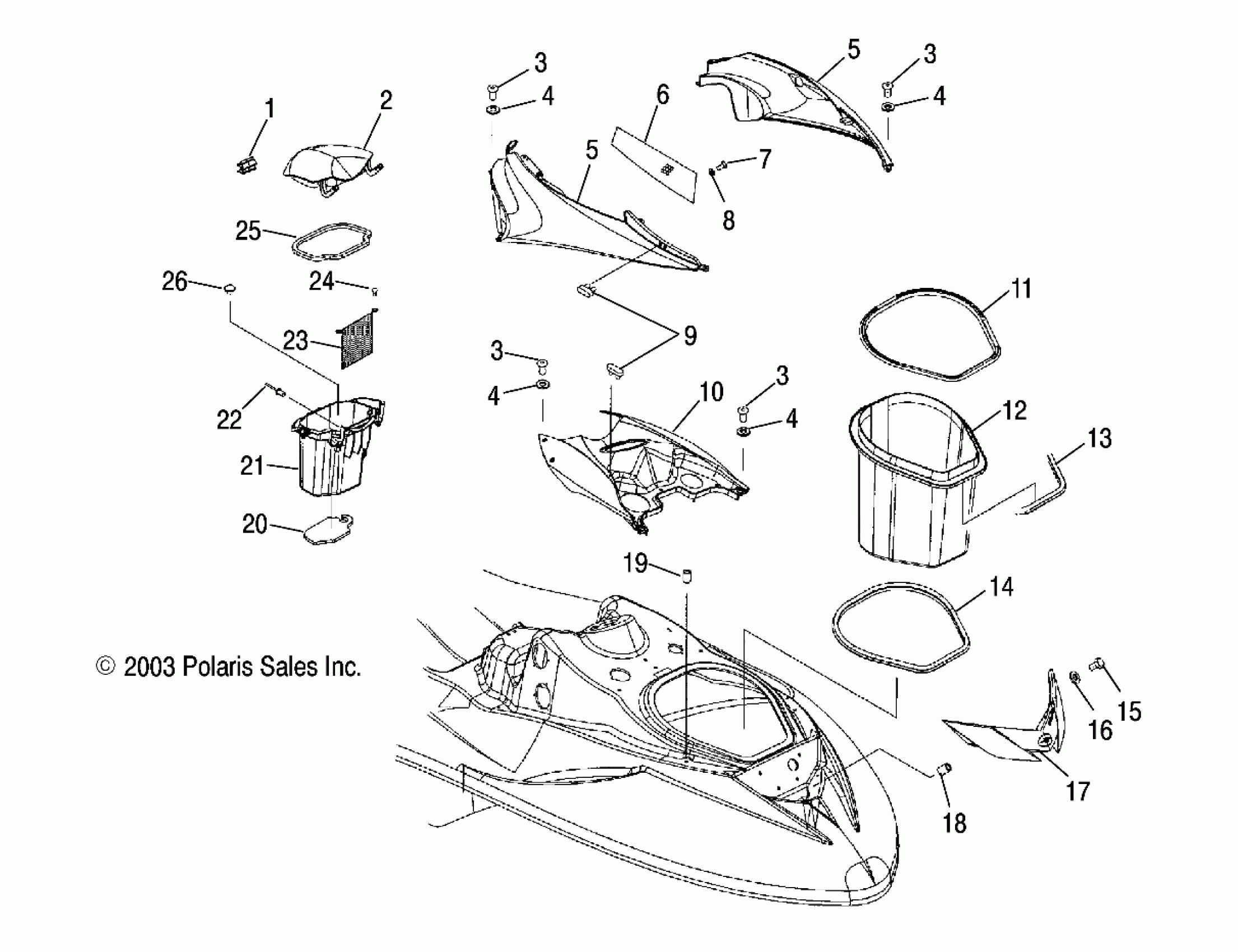

Polaris MSX 150 - W045305CA SHROUD and STORAGE - W045305CA/IA/CB/IB/IE/CC/IC/CD/ID/IF (4990579057A04) Diagram
#
1
Latch
5435640
Unavailable
2
Lid, Glove Box, Solar Red [CB]
5434521-444
Unavailable
2
Lid, Glove Box, Stealth Blk [CD][IF]
5434521-1093
Unavailable
2
Lid, Glove Box, Turbo Silver [CA]
5434521-445
Unavailable
2
Lid, Glove Box, Catalina Blue [CC][IE]
5434521-441
Unavailable
3
Screw
7518042
$9.99
3
Screw
7518042
$9.99
3
Screw
7518042
$9.99
3
Screw
7518042
$9.99
4
Washer, Nylon, Spacer
7556286
Unavailable
4
Washer, Nylon, Spacer
7556286
Unavailable
4
Washer, Nylon, Spacer
7556286
Unavailable
4
Washer, Nylon, Spacer
7556286
Unavailable
5
Shroud, Left, Solar Red [CB]
5434518-444
Unavailable
5
Shroud, Right, Solar Red [CB]
5434519-444
Unavailable
5
Shroud, Left, Stealth Blk [CD][IF]
5434518-1093
Unavailable
5
Shroud, Right, Stealth Blk [CD][IF]
5434519-1093
Unavailable
5
Shroud, Left, Turbo Silver [CA]
5434518-445
Unavailable
5
Shroud, Right, Turbo Silver [CA]
5434519-445
Unavailable
5
Shroud, Left, Catalina Blue [CC][IE]
5434518-441
Unavailable
5
Shroud, Right, Catalina Blue [CC][IE]
5434519-441
Unavailable
5
Shroud, Left, Solar Red [CB]
5434518-444
Unavailable
5
Shroud, Right, Solar Red [CB]
5434519-444
Unavailable
5
Shroud, Left, Stealth Blk [CD][IF]
5434518-1093
Unavailable
5
Shroud, Right, Stealth Blk [CD][IF]
5434519-1093
Unavailable
5
Shroud, Left, Turbo Silver [CA]
5434518-445
Unavailable
5
Shroud, Right, Turbo Silver [CA]
5434519-445
Unavailable
5
Shroud, Left, Catalina Blue [CC][IE]
5434518-441
Unavailable
5
Shroud, Right, Catalina Blue [CC][IE]
5434519-441
Unavailable
6
Mesh, Wire, Eyelet, LH
5247054
Unavailable
6
Mesh, Wire, Eyelet, RH
5247055
Unavailable
7
Screw
7518130
Unavailable
8
Washer, Flat
7556252
Unavailable
9
Bumper
5224854
Unavailable
10
Asm., Shroud, Upper, Solar Red [CB]
1014182-444
Unavailable
10
Asm., Shroud, Upper, Turbo Silver [CA]
1014182-445
Unavailable
10
Asm., Shroud, Upper, Stealth Blk [CD][IF]
1014182-1093
Unavailable
10
Asm., Shroud, Upper, Catalina Blue [CC][IE]
1014182-441
Unavailable
11
Seal, Bucket, Top
5521658
Unavailable
12
Bucket, Storage
5434678
Unavailable
13
Seal, Bucket, Bottom
5521660
Unavailable
14
Seal, Bucket, Bottom
5521642
Unavailable
15
Screw
7518042
$9.99
16
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
17
Guard, Splash
5434513
Unavailable
18
Insert
7547244
Unavailable
19
Insert
7547245
Unavailable
20
Pad
5830234
Unavailable
21
Box, Glove
5434666
Unavailable
22
Rivet
7621336
$1.59
23
Net, Cargo
2683618
Unavailable
24
Clip
5434770-070
Unavailable
25
Seal
5830235
Unavailable
26
Plug
5434726
Unavailable
