REVERSE - W045305CA/IA/CB/IB/IE/CC/IC/CD/ID/IF (4990579057A13)

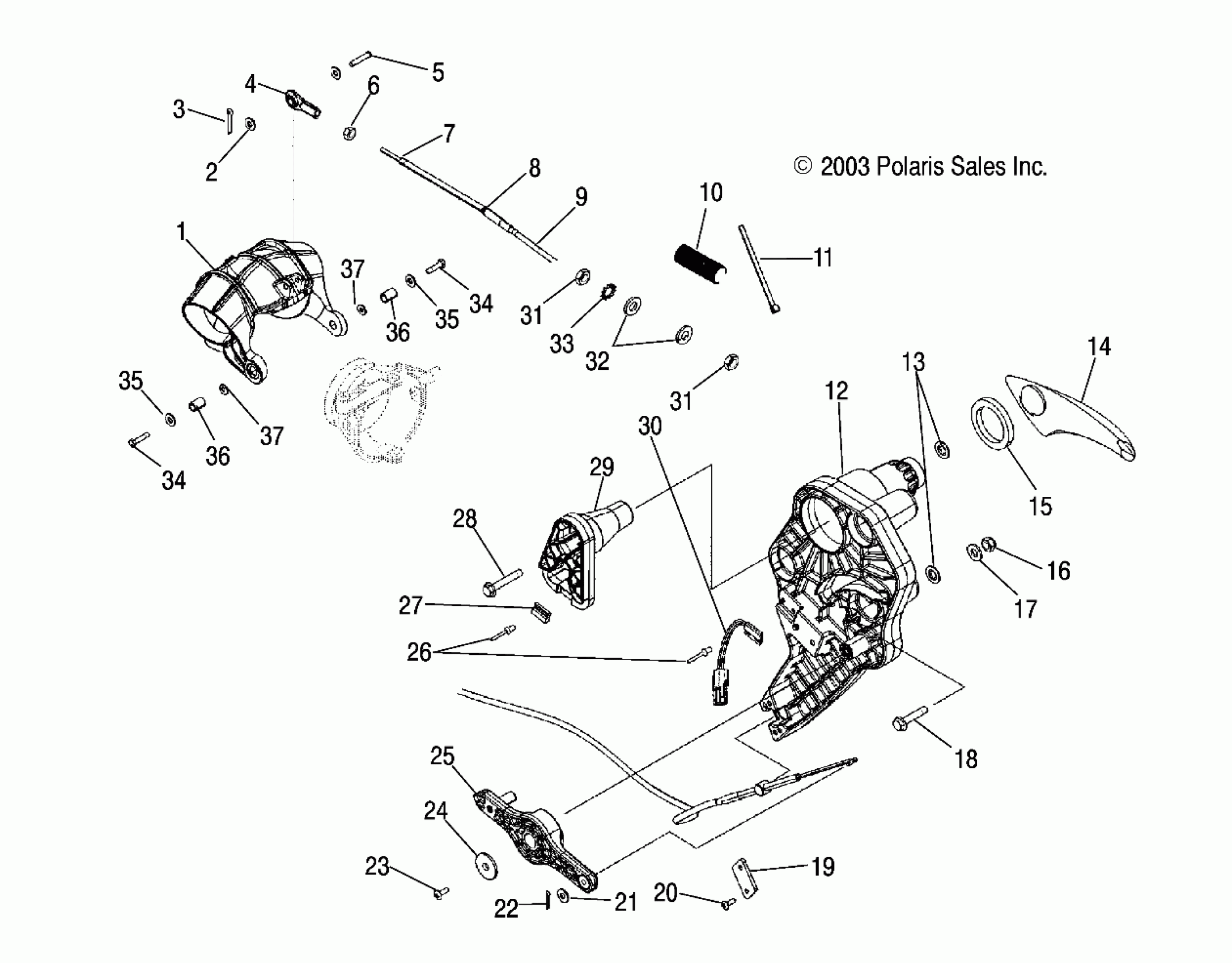

Polaris MSX 150 - W045305CA REVERSE - W045305CA/IA/CB/IB/IE/CC/IC/CD/ID/IF (4990579057A13) Diagram
#
1
Gate, Reverse
5435313
Unavailable
2
Washer, Flat
7555839
Unavailable
3
Pin, Cotter
7661010
$1.49
4
Rod, End
7061062
Unavailable
5
Pin, Clevis
7661117
Unavailable
6
Nut
7542150
Unavailable
7
Seal, Rod
5412206
Unavailable
8
Seal, Rod
5411818
Unavailable
9
Cable, Reverse
7081089
Unavailable
10
Conduit, Convoluted
4010051-100
$13.75
11
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
12
Plate, Base, Reverse
5435282
Unavailable
13
Retainer
7710556
Unavailable
14
Asm., Handle, Reverse
2632646-070
Unavailable
15
Gasket, Base, Reverse
5812529
Unavailable
16
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
17
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
18
Bolt
7516807
Unavailable
19
Plate, Cable Alignment
5435279
Unavailable
20
Screw
7512049
Unavailable
21
Washer, Flat
7555837
Unavailable
22
Pin, Cotter
7661010
$1.49
23
Screw
7518298
Unavailable
24
Washer, Flat
7556299
Unavailable
25
Arm, Reverse
5435281
Unavailable
26
Rivet
7661159
Unavailable
27
Sensor, Reed, Magnet
2410417
Unavailable
28
SCREW
7516817
Unavailable
29
Track, Reverse Driver
5435280
Unavailable
30
Sensor, Reed, Switch, Reverse
2410442
Unavailable
31
Nut
7547001
Unavailable
31
Nut
7547001
Unavailable
32
Washer, Flat
7555856
Unavailable
33
Washer, Lock
7556269
Unavailable
34
Bolt
7515368
Unavailable
34
Bolt
7515368
Unavailable
35
Washer, Flat
7555874
$2.39
35
Washer, Flat
7555874
$2.39
36
Collar
5020683
Unavailable
36
Collar
5020683
Unavailable
37
Washer
7555866
Unavailable
37
Washer
7555866
Unavailable
