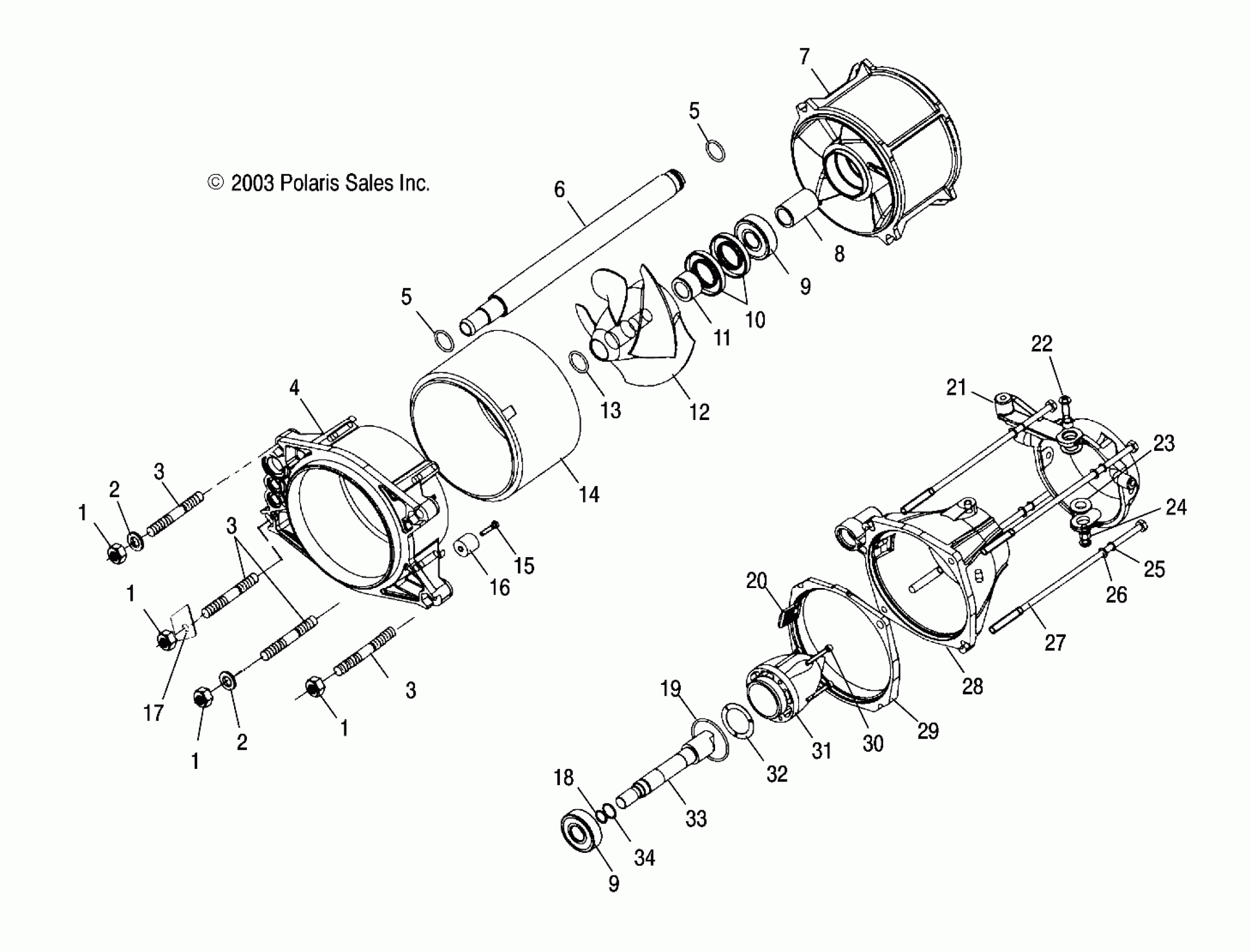

Polaris MSX 150 - W045305CA PROPULSION - W045305CA/IA/CB/IB/IE/CC/IC/CD/ID/IF (4990579057A14) Diagram

#

Description
Price

1

Nut, Hex

7542455

Unavailable

1

Nut, Hex

7542455

Unavailable

1

Nut, Hex

7542455

Unavailable

1

Nut, Hex

7542455

Unavailable

2

Washer

7555966

$2.62

2

Washer

7555966

$2.62

3

Stud, Mounting, Pump, Long

5132111

Unavailable

3

Stud, Mounting, Pump, Long

5132111

Unavailable

3

Stud, Mounting, Pump, Long

5132111

Unavailable

4

Housing, Pump w/o Ring

5131573

Unavailable

5

O-Ring

5410735

$0.79

5

O-Ring

5410735

$0.79

6

Pipe, Water, Engine

5432269

$30.71

7

Stator

5132088

$364.99

8

Spacer

5010294

Unavailable

9

Bearing

3514008

Unavailable

9

Bearing

3514008

Unavailable

10

Seal, Stator Bearing

3610043

Unavailable

11

Spacer, Impeller

5134505

Unavailable

12

Impeller

5134338

Unavailable

13

O-Ring

5410731

Unavailable

14

Extension, Pump

5131196

$204.99

15

Screw

7522019

$0.95

16

Anode, Zinc

5630598

Unavailable

17

Bracket, Steering Cable Nut

5244556

Unavailable

18

O-Ring

5410817

Unavailable

19

O-Ring

5410819

$0.79

20

Screen, Engine Inlet

5431523

Unavailable

21

Nozzle, Steering

5130999

Unavailable

22

Bolt

7515366

Unavailable

23

Bearing, Steering Nozzle

5431518

Unavailable

24

Collar

5130938

Unavailable

25

Washer, Lock

7552610

Unavailable

26

Washer, Flat

7555835

$0.69

27

Bolt

7515389

Unavailable

28

Asm., Nozzle

1350097

$196.83

29

Wedge, Pump

5432841

Unavailable

30

Screw

7512064

Unavailable

31

Cone, Pump

5431519

Unavailable

32

Seal, Tail Cone

5811984

Unavailable

33

Shaft, Stub

5132674

$47.62

34

O-Ring

5410818

$0.79
