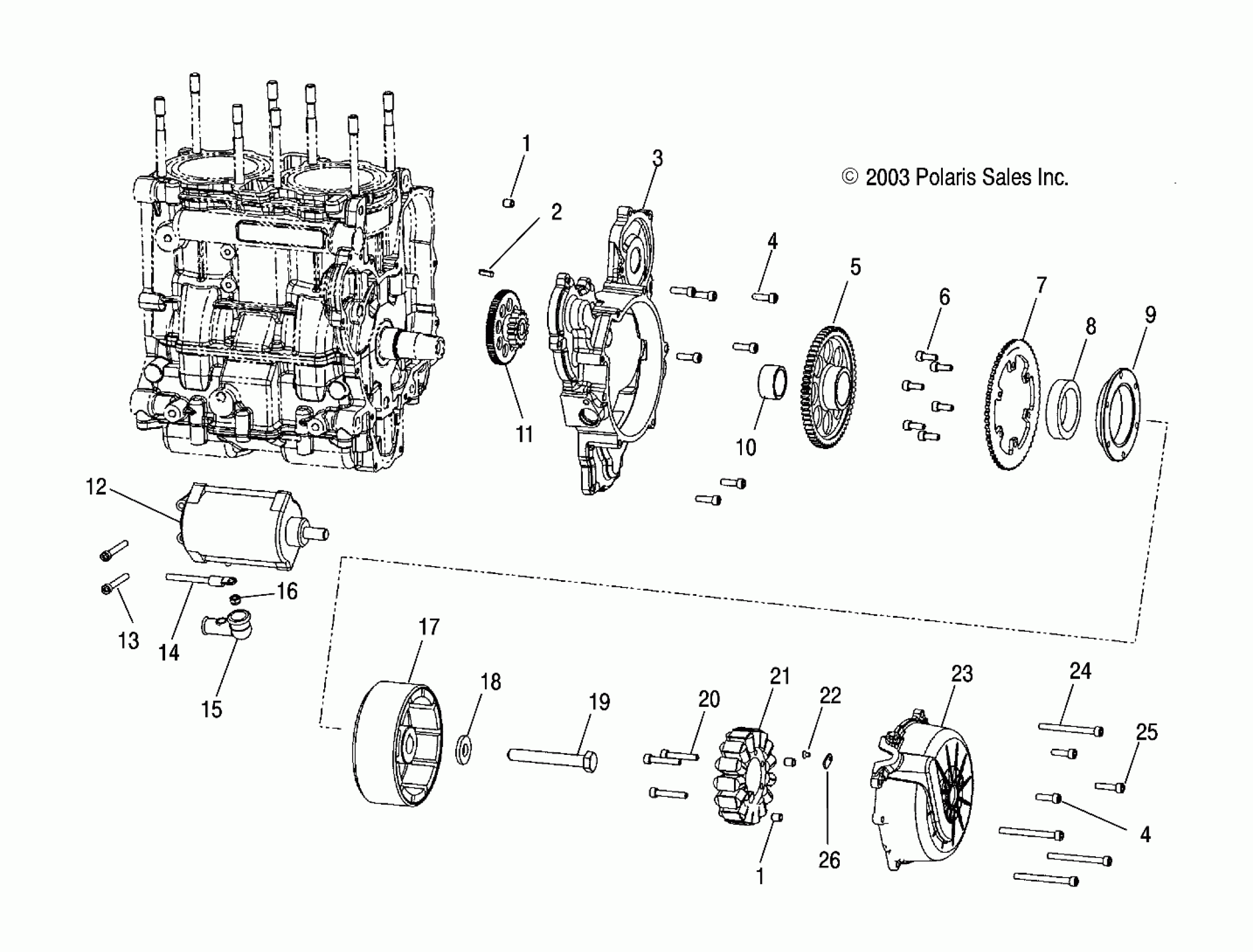

Polaris MSX 150 - W045305CA MAGNETO - W045305CA/IA/CB/IB/IE/CC/IC/CD/ID/IF (4990579057C01) Diagram

#

Description
Price

1

SLEEVE, CENTERING

0451447

$2.39

1

SLEEVE, CENTERING

0451447

$2.39

2

Key

0451892

Unavailable

3

Cover, Front

0451982

Unavailable

4

Bolt

0451542

$3.19

4

Bolt

0451542

$3.19

5

GEAR, STARTER, WHEEL

-------

Unavailable

6

Bolt

0451494

Unavailable

7

WHEEL, SPEED SENSOR

-------

Unavailable

8

WHEEL

-------

Unavailable

9

CLUTCH, STARTER

-------

Unavailable

10

BEARING, NEEDLE

0451579

$19.99

11

Asm., Starter Gear Wheel

0451931

$335.99

12

MOTOR, STARTER

0451411

$319.99

13

Bolt

0451568

$3.19

14

Lead, Starter

0451904

Unavailable

15

Gromment, Rubber

0451868

Unavailable

16

NUT

0451906

Unavailable

17

Rotor, Alternator [Incl. 5-9]

0451961

Unavailable

18

Washer

0451932

Unavailable

19

Bolt

0451417

Unavailable

20

Bolt

0451544

Unavailable

21

Stator, Alternator

0451486

Unavailable

22

Bolt

0451494

Unavailable

23

Cover, Alternator

0451988

Unavailable

24

BOLT

0451570

Unavailable

25

Bolt

0451543

$3.19

26

Clamp, Cable

0451493

Unavailable
