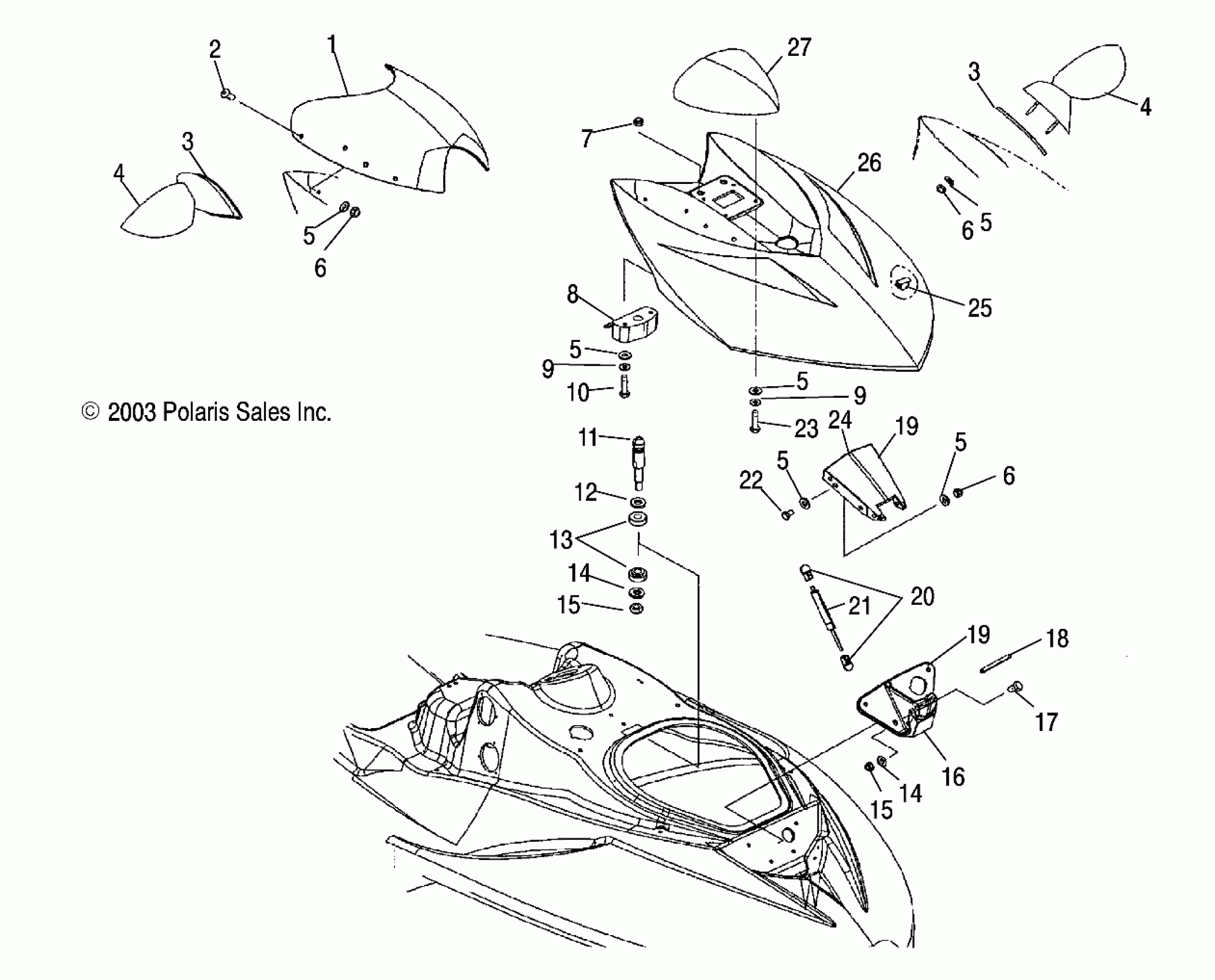

Polaris MSX 150 - W045305CA COMPARTMENT DOOR - W045305CA/IA/CB/IB/IE/CC/IC/CD/ID/IF (4990579057A03) Diagram

#

Description
Price

1

Windshield, Smokin' Clear

5435307-466

Unavailable

2

Screw

7518042

$5.49

3

Gasket, Mirror, LH

5412344

Unavailable

3

Gasket, Mirror, RH

5412345

Unavailable

3

Gasket, Mirror, LH

5412344

Unavailable

3

Gasket, Mirror, RH

5412345

Unavailable

4

Asm., Mirror, Blk, LH [CD][IF]

2632908-070

$130.95

4

Asm., Mirror, Blk, RH [CD][IF]

2632909-070

$119.05

4

Asm., Mirror, Turbo Silver, LH [CA][If built before 2/1/04]

2632518-445

$115.08

4

Asm., Mirror, Turbo Silver, RH [CA][If built before 2/1/04]

2632519-445

Unavailable

4

Asm., Mirror, Turbo Silver, LH [CA]

2632908-445

$115.08

4

Asm., Mirror, Turbo Silver, RH [CA]

2632909-445

Unavailable

4

Asm., Mirror, Catalina Blue, LH [CC][IE]

2632908-441

$123.02

4

Asm., Mirror, Catalina Blue, RH [CC][IE]

2632909-441

$119.05

4

Asm., Mirror, Solar Red, LH [CB]

2632908-444

$119.05

4

Asm., Mirror, Solar Red, RH [CB]

2632909-444

$119.05

4

Asm., Mirror, Blk, LH [CD][IF]

2632908-070

$130.95

4

Asm., Mirror, Blk, RH [CD][IF]

2632909-070

$119.05

4

Asm., Mirror, Turbo Silver, LH [CA][If built before 2/1/04]

2632518-445

$115.08

4

Asm., Mirror, Turbo Silver, RH [CA][If built before 2/1/04]

2632519-445

Unavailable

4

Asm., Mirror, Turbo Silver, LH [CA]

2632908-445

$115.08

4

Asm., Mirror, Turbo Silver, RH [CA]

2632909-445

Unavailable

4

Asm., Mirror, Catalina Blue, LH [CC][IE]

2632908-441

$123.02

4

Asm., Mirror, Catalina Blue, RH [CC][IE]

2632909-441

$119.05

4

Asm., Mirror, Solar Red, LH [CB]

2632908-444

$119.05

4

Asm., Mirror, Solar Red, RH [CB]

2632909-444

$119.05

5

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

5

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

5

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

5

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

5

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

5

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

6

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

6

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

6

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

7

Nut

7546705

$4.76

8

Latch

7081088

Unavailable

9

Washer, Lock

7552613

Unavailable

9

Washer, Lock

7552613

Unavailable

10

Screw

7517528

Unavailable

11

Plunger, Latch

5134119

Unavailable

12

Washer, Flat

7555841

Unavailable

13

Bumper, Rubber, Latch Post

5412299

Unavailable

14

Washer, Flat

7555831

Unavailable

14

Washer, Flat

7555831

Unavailable

15

Nut, Hex, Nylok

7546804

$1.19

15

Nut, Hex, Nylok

7546804

$1.19

16

HINGE, LOWER

----

Unavailable

17

Screw

7518185

Unavailable

18

Pin, Dowel

5133641

Unavailable

19

Asm., Hinge, Front [Incl. 15,16,21,24]

2632863

$81.75

19

Asm., Hinge, Front [Incl. 15,16,21,24]

2632863

$81.75

20

End, Gas Shock

5435401

Unavailable

21

Spring, Gas

7042260

Unavailable

22

Bolt

7516807

Unavailable

23

Screw

7518187

$3.97

24

HINGE, UPPER

----

Unavailable

25

Clip

7080703

$1.10

26

Door, Compartment, Solar Red [CB]

5434520-444

Unavailable

26

Door, Compartment, Turbo Silver [CA]

5434520-445

$545.99

26

Door, Compartment, Stealth Blk [CD][IF]

5434520-1093

Unavailable

26

Door, Compartment, Catalina Blue [CC][IE]

5434520-441

Unavailable

27

Gauge, NGI

3280458

$559.99
