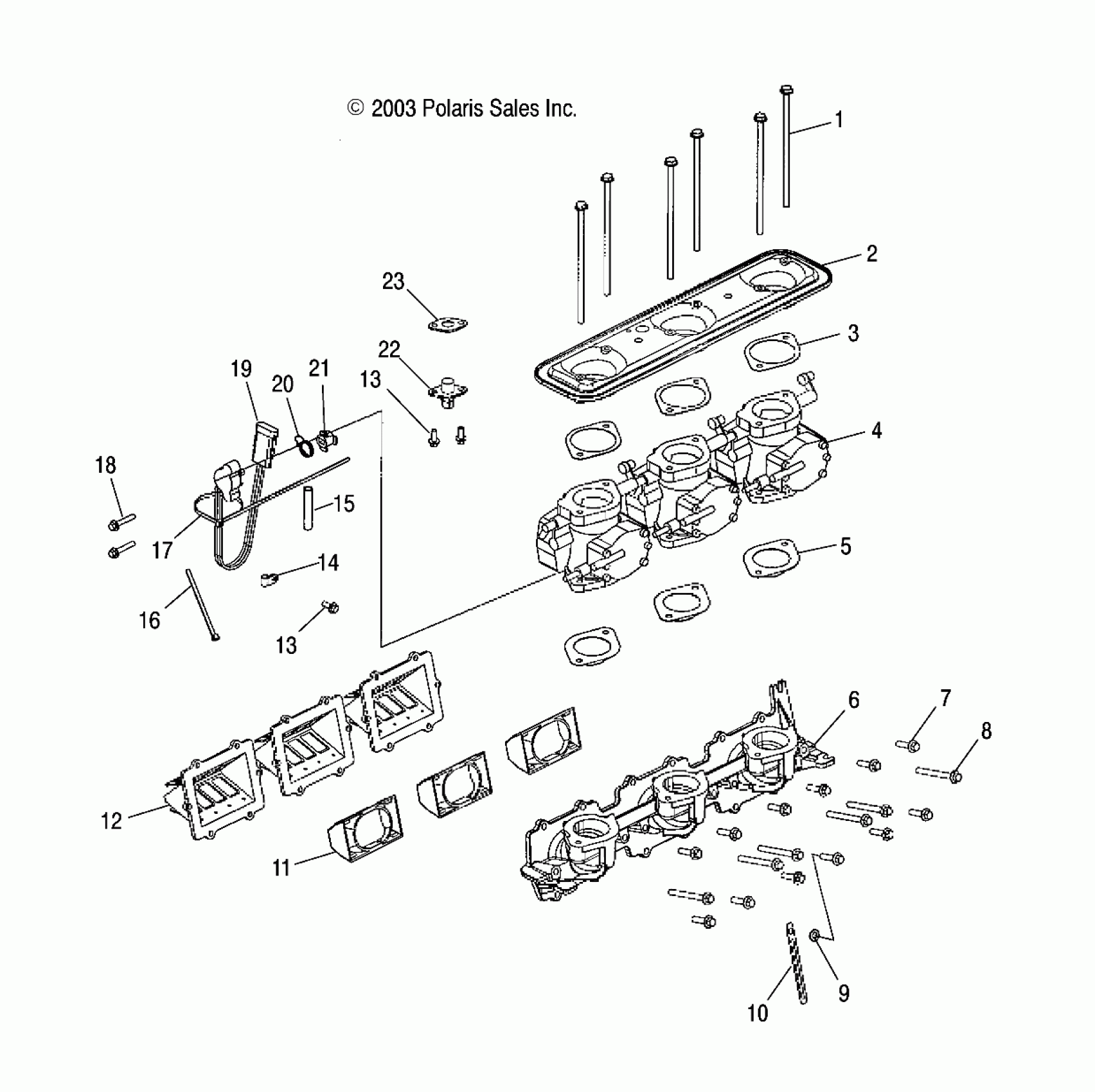

Polaris MSX 140 - W045303CA/IA THROTTLE BODY - W045303CA/IA (4990539053C01) Diagram

#

Description
Price

1

SCR-M6X1.00X145-HX/FL-SS

7516816

$23.99

2

Base, Intake Silencer

5630907

Unavailable

3

Gasket, Carburetor, Upper

5830062

Unavailable

4

Asm., Throttle Body

1253497

Unavailable

5

Gasket, Carburetor

5830043

Unavailable

6

Adaptor, Carburetor

5630582-329

Unavailable

7

Bolt

7516807

Unavailable

8

Bolt

7516814

Unavailable

9

Washer

7555836

$3.99

10

Retainer

7080654

$18.32

11

Stuffer, Reed Block

5432162

Unavailable

12

Asm., Block, Triple Reed

1201595

Unavailable

13

BOLT

7516603

$10.39

13

BOLT

7516603

$10.39

14

Clamp, Nylon, Cable

7080539

$4.79

15

Conduit

5521663-09

Unavailable

16

Strap

7080571

$2.47

17

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

Screw

7516606

Unavailable

19

Kit, Sensor, Throttle Position

2202740

Unavailable

20

Spring

7042274

Unavailable

21

Coupler

5434096

Unavailable

22

Sensor, Air Temperature

2410299

Unavailable

23

Spacer

5812576

Unavailable
