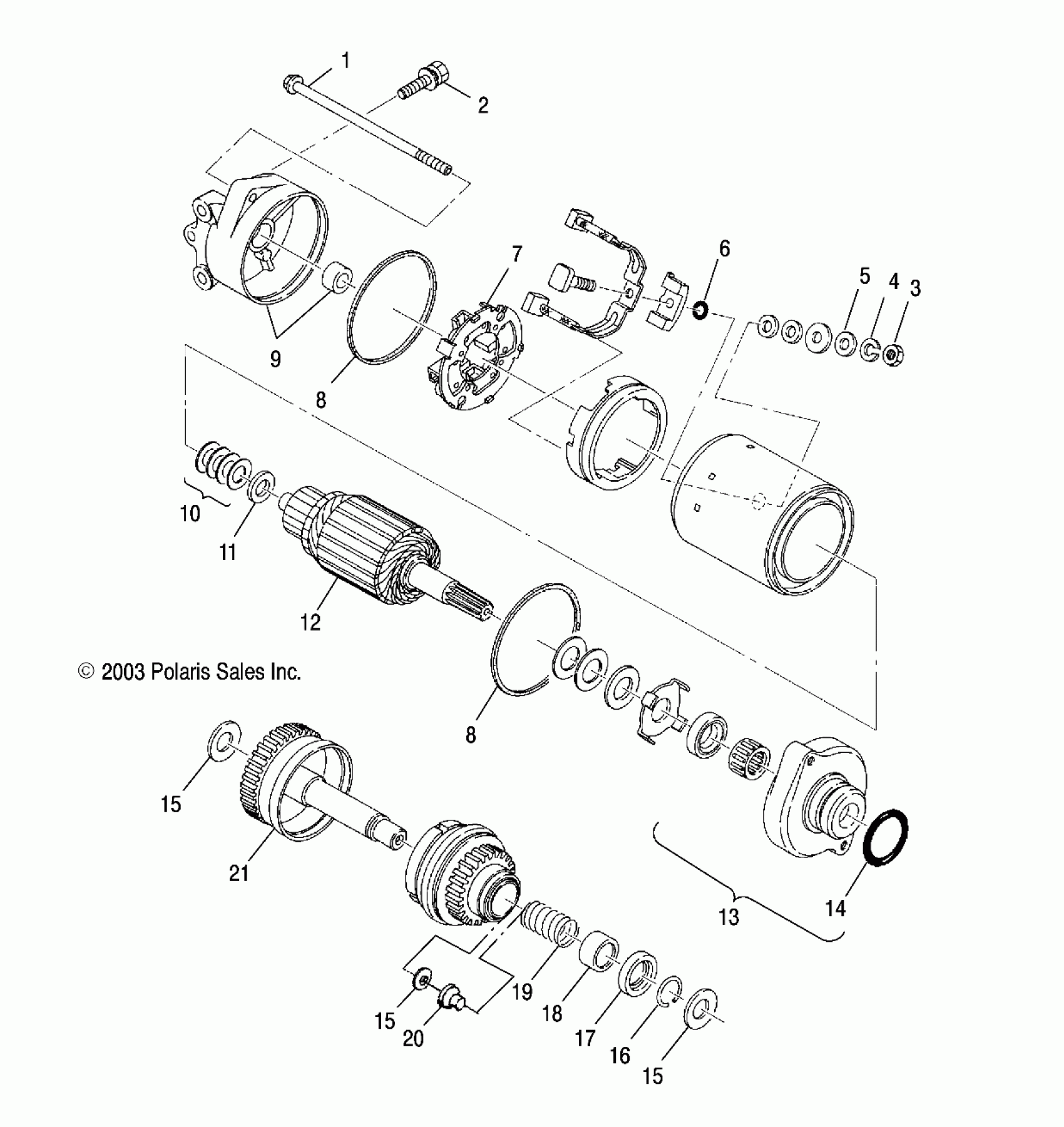

Polaris MSX 140 - W045303CA/IA STARTING MOTOR - W045303CA/IA (4990539053C04) Diagram

#

Description

Price

-

Asm., Bendix [Incl. 15-21](If built after 10/15/03)

4010418

Unavailable

-

Asm., Bendix [Incl. 15-21](If built before 10/15/03)

4060119

Unavailable

-

Brush, Complete [Incl. 4-7]

3240115

Unavailable

-

Starter, Long Stud [Incl. 1,3-14]

4010675

Unavailable

1

Bolt, Through

3240113

Unavailable

2

Bolt

7516807

Unavailable

3

Nut

3240116

Unavailable

4

Washer, Spring

3240117

Unavailable

5

Washer

3240119

Unavailable

6

O-RING

3084408

Unavailable

7

Spring, Brush

3240111

Unavailable

8

RING, RUBBER

3084405

Unavailable

8

RING, RUBBER

3084405

Unavailable

9

Asm., Rear Bracket

3240207

Unavailable

10

Washer, Thrust

3240118

Unavailable

11

Washer, Thrust

3240112

Unavailable

12

Asm., Armature

3240205

Unavailable

13

Asm., Front Bracket

3240206

Unavailable

14

O-Ring

3240114

$5.59

15

WASHER

7555908

$3.17

15

WASHER

7555908

$3.17

15

WASHER

7555908

$3.17

16

Ring, Snap

3240126

Unavailable

17

Stopper

3240125

Unavailable

18

Cover

3240123

Unavailable

19

Spring

7041457

Unavailable

20

Bushing

3574214

Unavailable

21

Asm., Gear [Incl. 15-20]

3240120

Unavailable
