REVERSE - W045303CA/IA (4990539053A13)

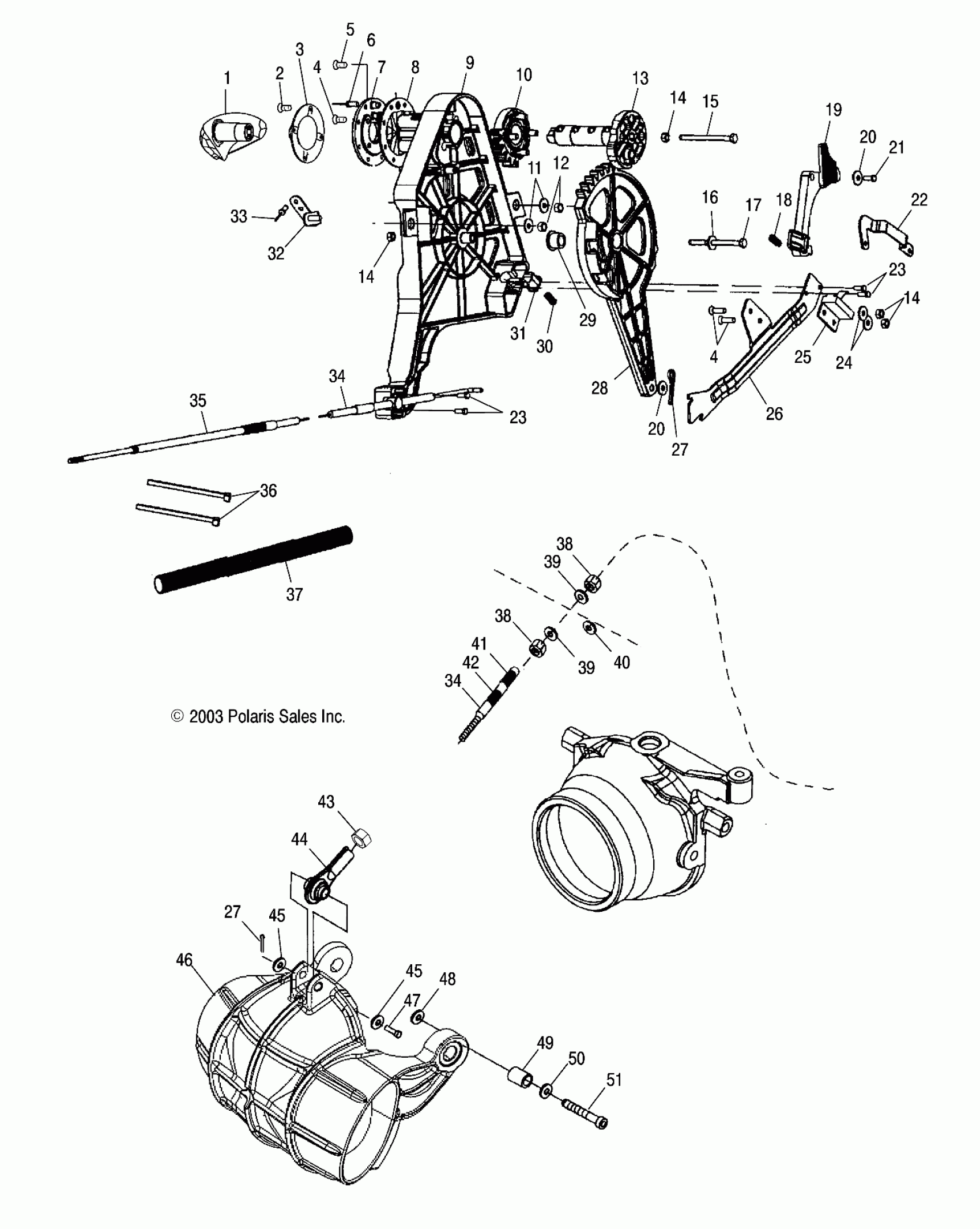

Polaris MSX 140 - W045303CA/IA REVERSE - W045303CA/IA (4990539053A13) Diagram
#
1
Asm., Handle, Reverse
2632646-070
Unavailable
2
Bolt
7516809
Unavailable
3
Support, Handle, Reverse
5434514
Unavailable
4
Screw
7517669
Unavailable
4
Screw
7517669
Unavailable
5
Washer, Lock
7552613
Unavailable
5
Bolt
7516807
Unavailable
5
Insert
7547244
Unavailable
6
Rivet
7661040
Unavailable
7
Flange, Base
5434066
Unavailable
8
Gasket
5811982
Unavailable
9
Plate, Base
5434973
Unavailable
10
Pinion
5434067
Unavailable
11
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
12
Nut
7546705
$4.79
13
Shaft, Cam
5434967
Unavailable
14
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
14
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
14
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
15
SCR-M6X1.00X145-HX/FL-SS
7516816
$23.99
16
Washer, Flat
7555856
Unavailable
17
Bolt
7516806
Unavailable
18
Spring, Compression
7041888
$13.19
19
Arm, Reverse Lock
5433676
Unavailable
20
Washer, Flat
7555837
Unavailable
20
Washer, Flat
7555837
Unavailable
21
Screw
7511882
Unavailable
22
Bracket, Arm Lock Support
5412058
Unavailable
23
Screw
7512049
Unavailable
23
Screw
7512049
Unavailable
24
Washer, Flat
7555857
Unavailable
25
Switch, Limit, Sealed
2410241
Unavailable
26
Bracket, Reverse, Support
5245180
Unavailable
27
Pin, Cotter
7661010
$1.49
27
Pin, Cotter
7661010
$1.49
28
Arm, Reverse
5433871
Unavailable
29
Bushing, Flange
5433647
Unavailable
30
Spring, Compression
7041995
Unavailable
31
Plunger, Detent
5433673
Unavailable
32
Bracket, Reverse Plate, Forward w/Stud
5245635
Unavailable
33
Rivet
7661041
Unavailable
34
Cable, Reverse
7081089
Unavailable
34
Cable, Reverse
7081089
Unavailable
35
Seal, Rod
5411819
Unavailable
36
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
37
Conduit, Convoluted
4010051-100
$13.75
38
Nut
7547001
Unavailable
38
Nut
7547001
Unavailable
39
Washer, Flat
7555856
Unavailable
39
Washer, Flat
7555856
Unavailable
40
Washer, Lock
7556269
Unavailable
41
Seal, Rod
5411818
Unavailable
42
Seal, Rod
5412206
Unavailable
43
Nut
7542150
Unavailable
44
Rod End
7061062
Unavailable
45
Washer, Flat
7555839
Unavailable
45
Washer, Flat
7555839
Unavailable
46
Gate, Reverse, Directional
5435313
Unavailable
47
Pin, Clevis
7661117
Unavailable
48
Washer
7555866
Unavailable
49
Collar
5020683
Unavailable
50
Washer, Flat
7555874
$2.39
51
Bolt
7515368
Unavailable
