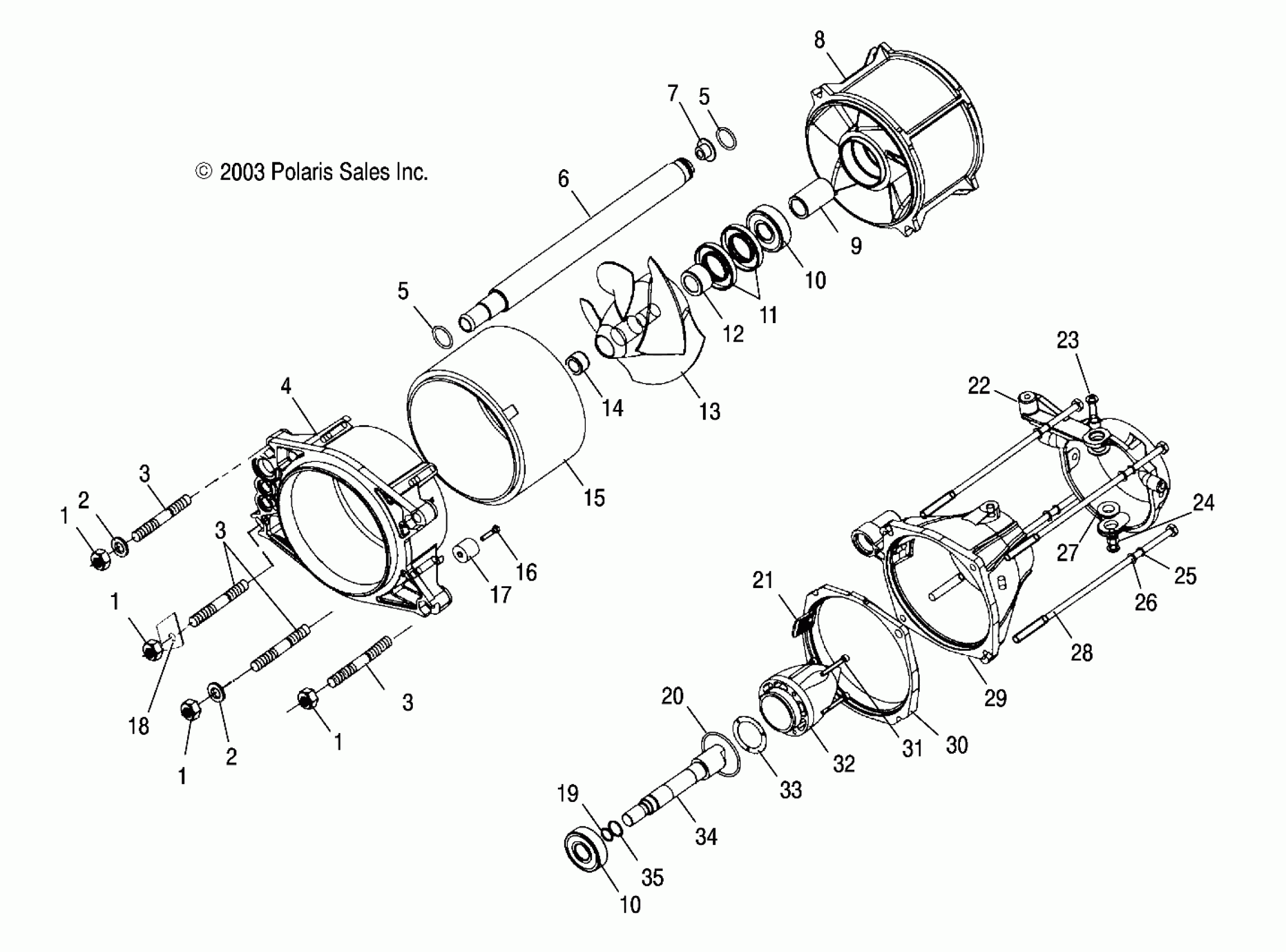

Polaris MSX 140 - W045303CA/IA PROPULSION - W045303CA/IA (4990539053B02) Diagram

#

Description
Price

1

Nut, Hex

7542455

Unavailable

1

Nut, Hex

7542455

Unavailable

1

Nut, Hex

7542455

Unavailable

1

Nut, Hex

7542455

Unavailable

2

Washer

7555966

$2.62

2

Washer

7555966

$2.62

3

Stud, Mounting, Pump, Long

5132111

Unavailable

3

Stud, Mounting, Pump, Long

5132111

Unavailable

3

Stud, Mounting, Pump, Long

5132111

Unavailable

4

Housing, Pump

5131573

Unavailable

5

O-Ring

5410735

$0.79

5

O-Ring

5410735

$0.79

6

Pipe, Water, Engine

5432269

$30.71

7

Fitting

5133977

$8.73

8

Stator

5132088

$364.99

9

Spacer

5010294

Unavailable

10

Bearing

3514008

Unavailable

10

Bearing

3514008

Unavailable

11

Seal, Stator Bearing

3610043

Unavailable

12

Spacer, Impeller (If built before 2/12/04)

5010295

Unavailable

12

Spacer, Impeller (If built after 2/12/04)

5134505

Unavailable

13

Impeller

5132707

Unavailable

14

Seal, Impeller/Shaft

5411644

Unavailable

15

Extension, Pump

5131196

$204.99

16

Screw

7522019

$0.95

17

Anode, Zinc

5630598

Unavailable

18

Bracket, Steering Cable Nut

5244556

Unavailable

19

O-Ring

5410817

Unavailable

20

O-Ring

5410819

$0.79

21

Screen, Engine Inlet

5431523

Unavailable

22

Nozzle, Steering

5130999

Unavailable

23

Bolt

7515366

Unavailable

24

Collar

5130938

Unavailable

25

Washer, Lock

7552610

Unavailable

26

Washer, Flat

7555835

$0.69

27

Bearing, Steering Nozzle

5431518

Unavailable

28

Bolt

7515389

Unavailable

29

Asm., Nozzle, Pump

1350013

Unavailable

30

Wedge, Pump

5432841

Unavailable

31

Screw (If built before 3/15/04)

7512064

Unavailable

31

Screw (If built after 3/15/04)

7518396

Unavailable

32

Cone, Pump

5431519

Unavailable

33

Seal, Tail Cone

5811984

Unavailable

34

Shaft, Stub

5132674

$47.62

35

O-Ring

5410818

$0.79
