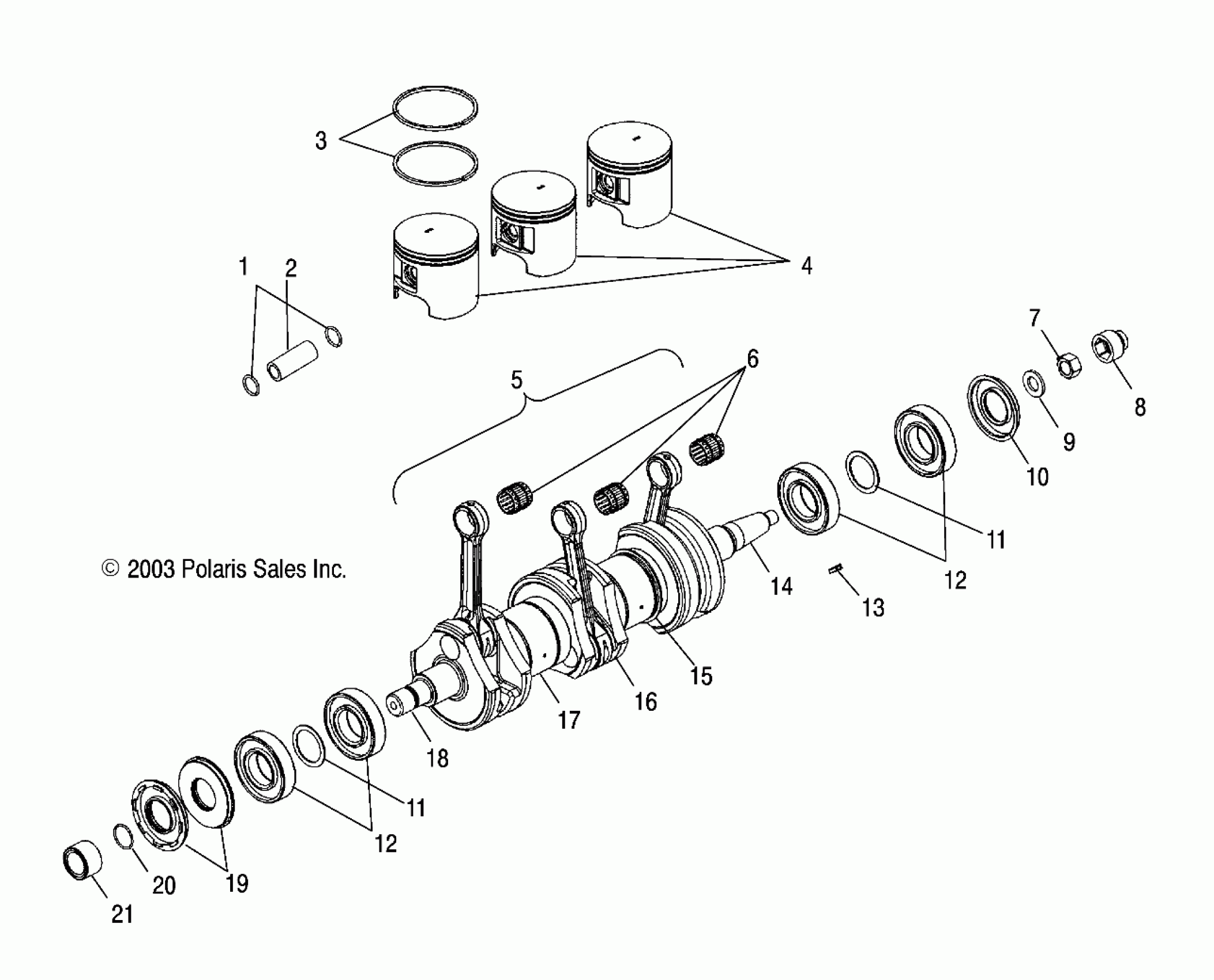

Polaris MSX 140 - W045303CA/IA CRANKSHAFT and PISTON - W045303CA/IA (4990539053C02) Diagram

#

Description
Price

-

Kit, Crankshaft [Incl. 6,11-18]

2202422

Unavailable

1

Circlip, Piston

3021179

$8.79

2

PIN, PISTON

-------

Unavailable

3

Kit, Piston Rings, Standard

2201631

Unavailable

4

Kit, Piston Asm., Standard [Incl. 1-3]

2202337

$199.98

5

Kit, Connecting Rod Asm.

2201445

Unavailable

6

Bearing (If built after 10/15/03)

3514357

$23.99

6

Bearing (If built before 10/15/03)

3552112

Unavailable

7

Nut

7546909

Unavailable

8

Coupler, Pump Drive

5432576

Unavailable

9

WASHER

7555907

$5.59

10

Seal

3610044

$24.27

11

Bushing

7555905

$3.99

11

Bushing

7555905

$3.99

12

Bearing, Ball

3585503

$31.99

12

Bearing, Ball

3585503

$31.99

13

KEY, WOODRUFF

7721117

$24.99

14

Crankweb, MAG

5131744

Unavailable

15

BEARING, BALL

3514318

$43.99

16

Crankweb, Center

5131745

Unavailable

17

Labyrinth

5131086

Unavailable

18

Crankweb, PTO

5131746

Unavailable

19

Seal, Flange

5412091

$29.99

20

O-RING

5410613

$1.99

21

Collar, Crankshaft

5131195

Unavailable
