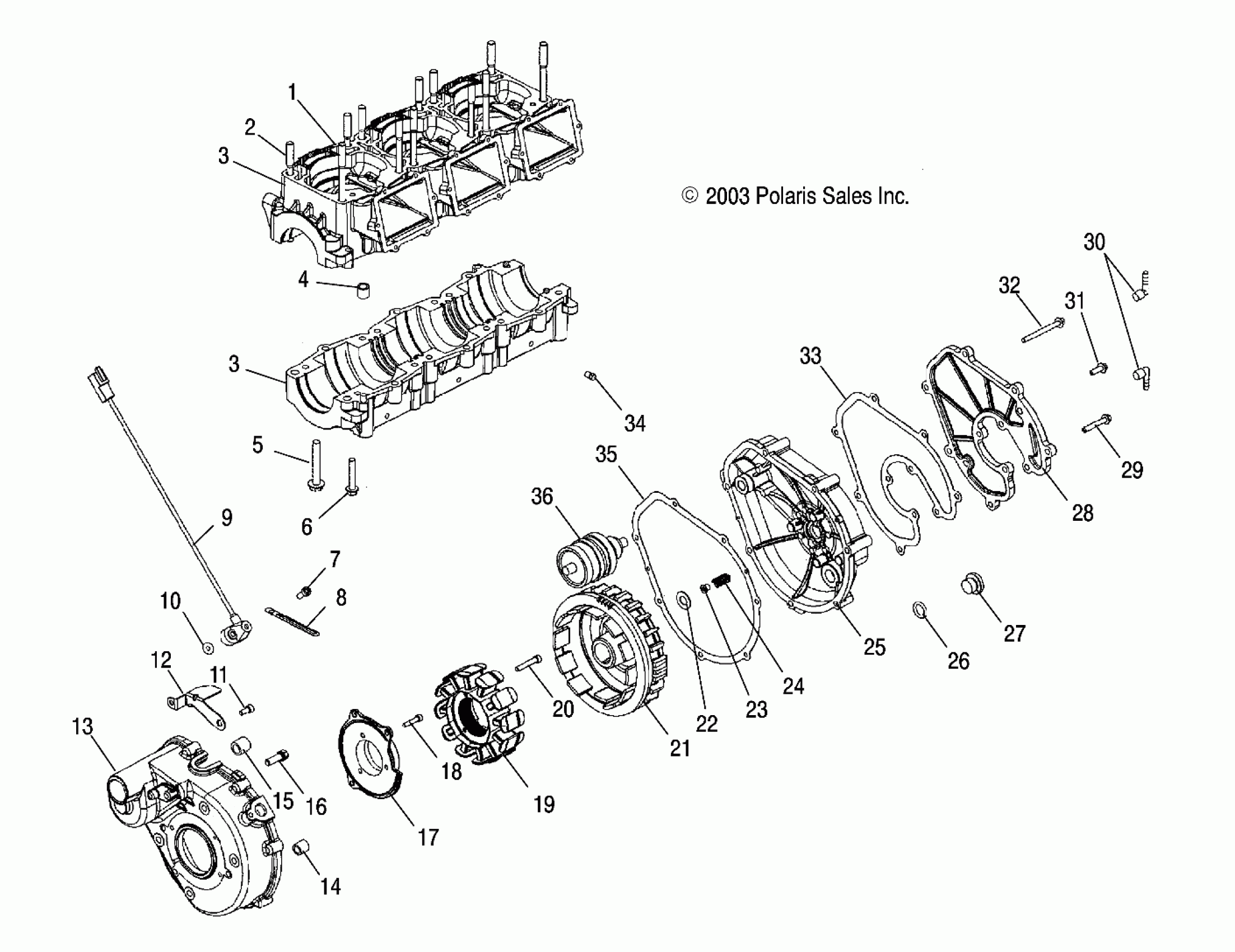

Polaris MSX 140 - W045303CA/IA CRANKCASE - W045303CA/IA (4990539053B12) Diagram

#

Description
Price

1

Stud, Cylinder

5133418

Unavailable

2

Stud, Cylinder Flange

5131677

Unavailable

3

Kit, Crankcase, 1200 [Incl. 4-6]

2202423

Unavailable

3

Kit, Crankcase, 1200 [Incl. 4-6]

2202423

Unavailable

4

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

5

Bolt

7516913

Unavailable

6

Screw

7517628

Unavailable

7

Screw

7517974

Unavailable

8

Retainer

7080654

$18.32

9

Sensor, Crank Position

2410128

Unavailable

10

O-Ring

5411564

$4.03

11

SCREW

7517431

$5.59

12

Clamp, Stator Wires

5243231

Unavailable

13

Flywheel Housing [Incl. 14,15]

1202023

Unavailable

14

Pin, Dowel

7663002

$4.79

15

Bushing

3514378

$12.39

16

Bolt

7516723

Unavailable

17

Plate, Stator Mount

5631069

Unavailable

18

Screw

7517620

Unavailable

19

Stator, Ignition

4010320

Unavailable

20

Screw

7517602

$4.99

21

Flywheel

4010646

Unavailable

22

Bushing

3569806

Unavailable

23

Bushing

3574214

Unavailable

24

Spring

7041457

Unavailable

25

Asm., Cover, Flywheel

1202574

Unavailable

26

WASHER

7555908

$3.17

27

Plug, Timing Hole

5433820

$20.22

28

Cover, Water Jacket

5631431-329

Unavailable

29

Bolt

7516806

Unavailable

30

Fitting, 90 Degree

7052156

$30.00

31

Bolt

7516809

Unavailable

32

Screw

7517662

Unavailable

33

Gasket, Water Jacket Cover

5812474

Unavailable

34

Plug

7051529

$15.99

35

Gasket, Flywheel Cover

5811550

Unavailable

36

Asm., Bendix (See Starting Motor Pg. C4 for Details)

-------

Unavailable
