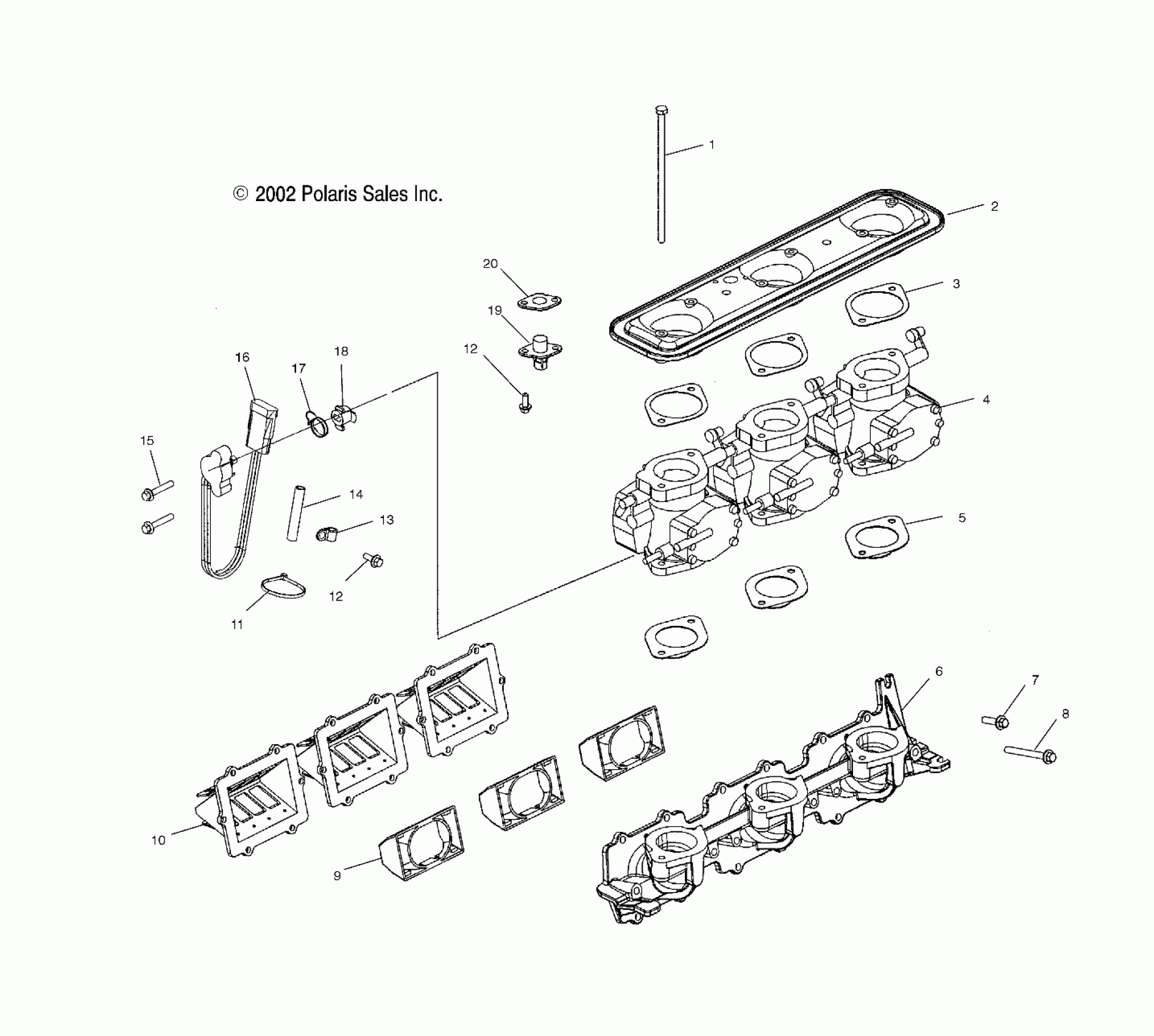

Polaris MSX 140 - W035303CA/CB/IA/IB THROTTLE BODY - W035303CA/CB/IA/IB (4981068106B14) Diagram

#

Description
Price

1

SCR-M6X1.00X145-HX/FL-SS

7516816

$23.99

2

Base, Intake Silencer

5630907

Unavailable

3

Gasket, Carburetor, Upper

5830062

Unavailable

4

Asm., Throttle Body

1253497

Unavailable

5

Gasket, Carburetor

5830043

Unavailable

6

Adaptor, Carburetor

5630582-329

Unavailable

7

Screw

7516807

Unavailable

8

Screw

7516814

Unavailable

9

Stuffer, Reed Block

5432162

Unavailable

10

Block, Triple Reed

1201595

Unavailable

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

BOLT

7516603

$10.39

12

BOLT

7516603

$10.39

13

Clamp, Nylon, Cable

7080539

$4.79

14

Conduit

5521663-09

Unavailable

15

Screw

7516606

Unavailable

16

Kit, Sensor, Throttle Position

2202740

Unavailable

17

Spring

7042274

Unavailable

18

Coupler

5434096

Unavailable

19

Sensor, Air Temperature

2410299

Unavailable

20

Spacer

5812576

Unavailable
