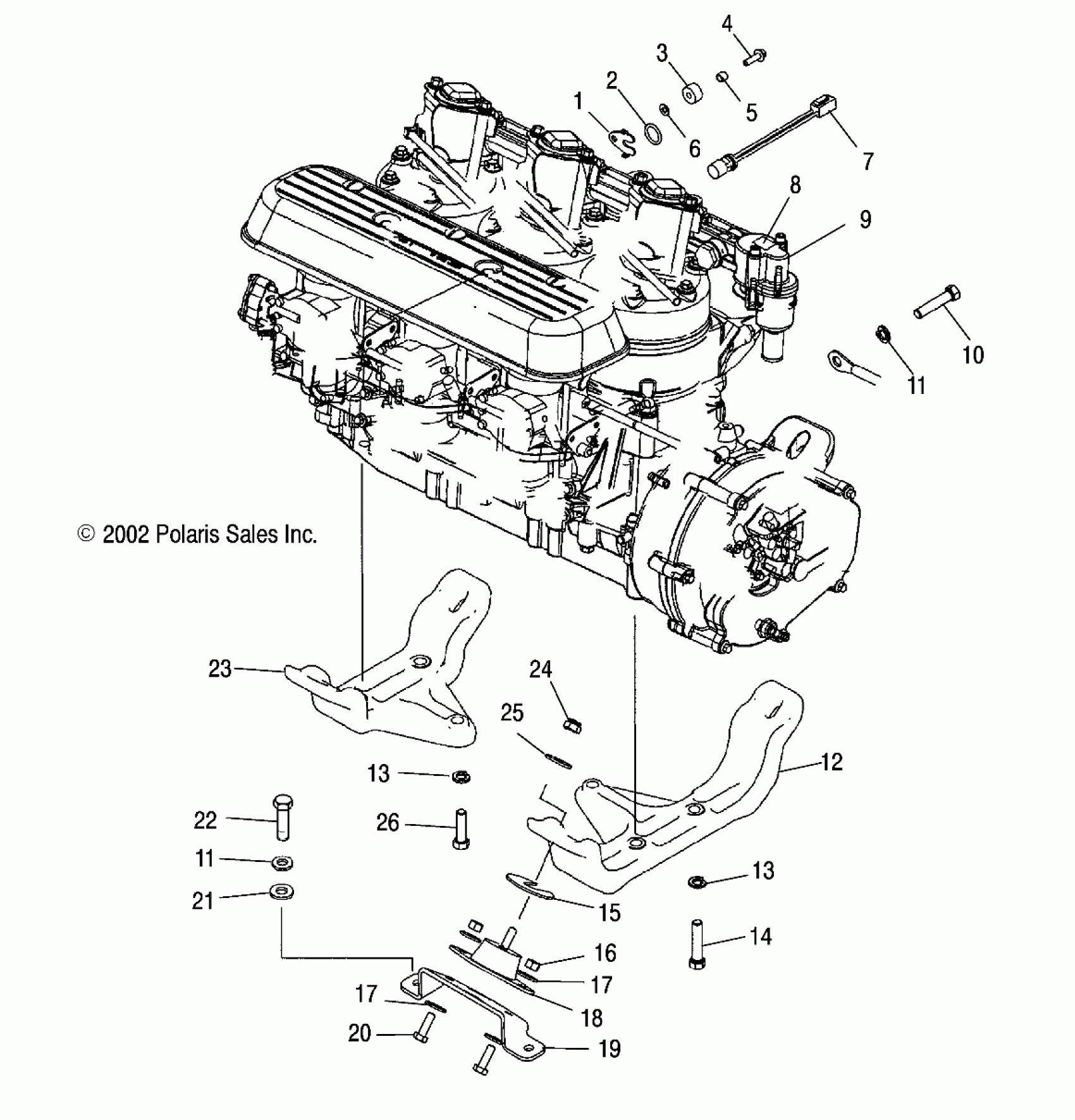

Polaris MSX 140 - W035303CA/CB/IA/IB ENGINE MOUNTING - W035303CA/CB/IA/IB (4981068106B10) Diagram

#

Description

Price

1

Clip, Retainer

5244176

Unavailable

2

O-Ring

5410817

Unavailable

3

Bumper, Temp Sensor

5412626

Unavailable

4

Screw

7516605

Unavailable

5

Spacer

5134513

Unavailable

6

WASHER, FLAT

7556271

Unavailable

7

Sensor, Water Temperature

2410125

Unavailable

8

Decal, Spark Plug

7077026

$2.95

9

Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly.

2202421

Unavailable

10

Screw

7517497

$3.97

11

Washer, Lock

7556055

Unavailable

11

Washer, Lock

7556055

Unavailable

12

Plate, Mount, Front

5631161-329

Unavailable

13

Washer, Lock

7552609

Unavailable

13

Washer, Lock

7552609

Unavailable

14

Screw

7518132

Unavailable

15

Shim, Slotted

5246894

Unavailable

16

NUT, NYLOK

7546804

$1.49

17

Washer

7556293

Unavailable

17

Washer

7556293

Unavailable

18

Mount, Engine

3021253

Unavailable

19

Plate, Motor Mount

5247362

Unavailable

20

Screw

7518104

Unavailable

21

Washer, Flat

7556249

Unavailable

22

Screw

7518119

Unavailable

23

Plate, Mount, Rear

5631160-329

Unavailable

24

Nut, Nylok

7542725

Unavailable

25

Washer, Flat

7555848

Unavailable

26

Screw

7517330

Unavailable
