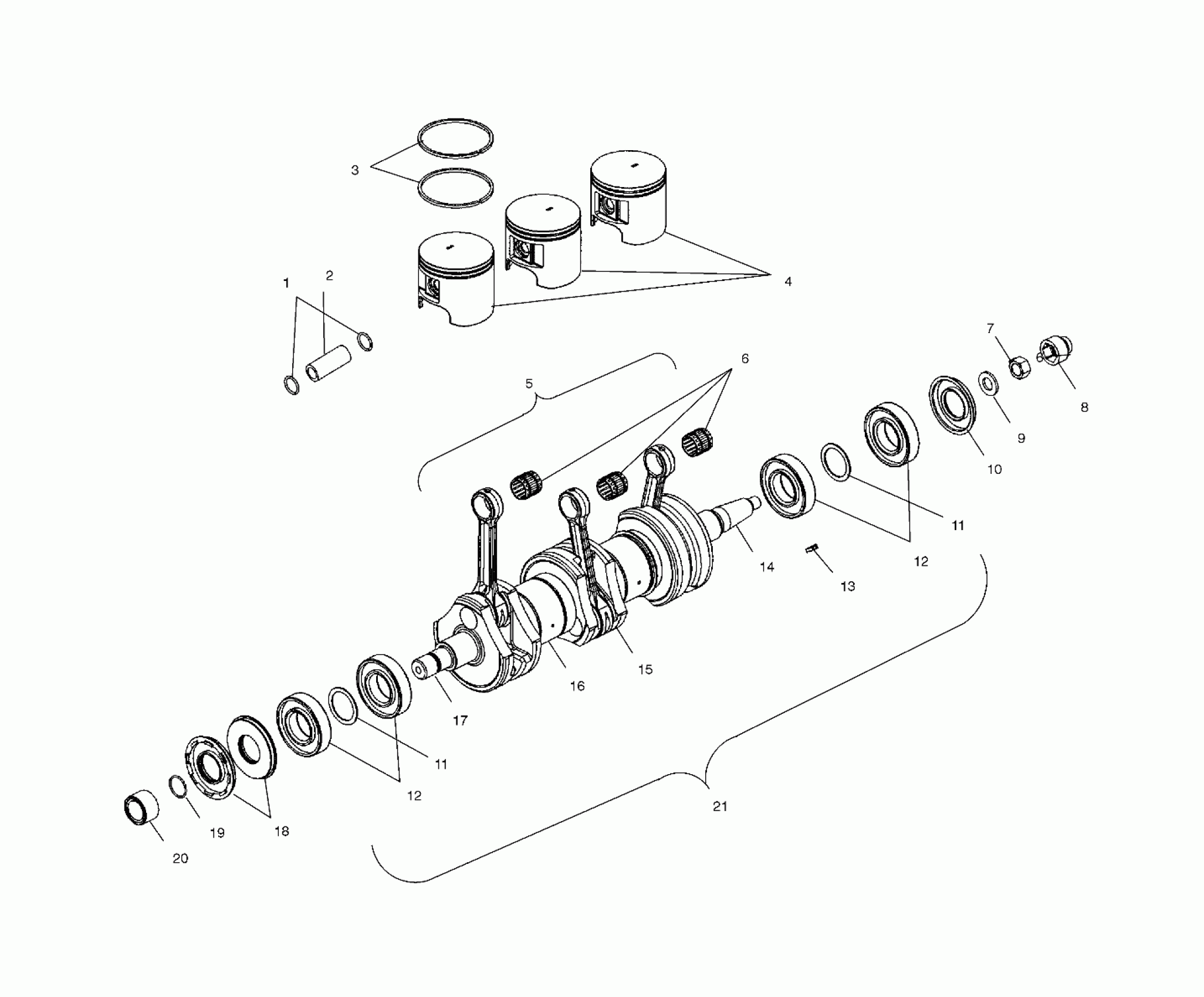

Polaris MSX 140 - W035303CA/CB/IA/IB CRANKSHAFT and PISTON - W035303CA/CB/IA/IB (4981068106C01) Diagram

#

Description
Price

1

Circlip, Piston

3021179

$8.79

2

Pin, Piston

3023030

Unavailable

3

Kit, Piston Rings [Standard]

2201631

Unavailable

3

Kit, Piston Rings [.25 mm O/S]

-------

Unavailable

3

Kit, Piston Rings [.50 mm O/S]

-------

Unavailable

4

Kit, Piston Asm. [Std.][Incl.1,2,3]

2202337

$199.98

4

Kit, Piston Asm. [.25 mm O/S][Incl.1,2,3]

-------

Unavailable

4

Kit, Piston Asm. [.50 mm O/S][Incl. 1,2,3]

-------

Unavailable

5

Kit, Connecting Rod Asm.

2201445

Unavailable

6

Bearing (If built after 10/15/03)

3514357

$23.99

6

Bearing (If built before 10/15/03)

3552112

Unavailable

7

Nut

7546909

Unavailable

8

Coupler, Pump Drive

5432576

Unavailable

9

WASHER

7555907

$5.59

10

Seal

3610044

$24.27

11

Bushing

7555905

$3.99

11

Bushing

7555905

$3.99

12

Bearing, Ball, Deep Groove

3585503

$31.99

12

Bearing, Ball, Deep Groove

3585503

$31.99

13

KEY, WOODRUFF

7721117

$24.99

14

Crankweb, MAG, 70 mm

5131744

Unavailable

15

Crankweb, Center, 70 mm

5131745

Unavailable

16

Labyrinth

5131086

Unavailable

17

Crankweb, PTO, 70 mm

5131746

Unavailable

18

Seal

5412091

$29.99

19

O-RING

5410613

$1.99

20

Collar, Crankshaft

5131195

Unavailable

21

Kit, Crankshaft [Incl. 6,11-17]

2202422

Unavailable
