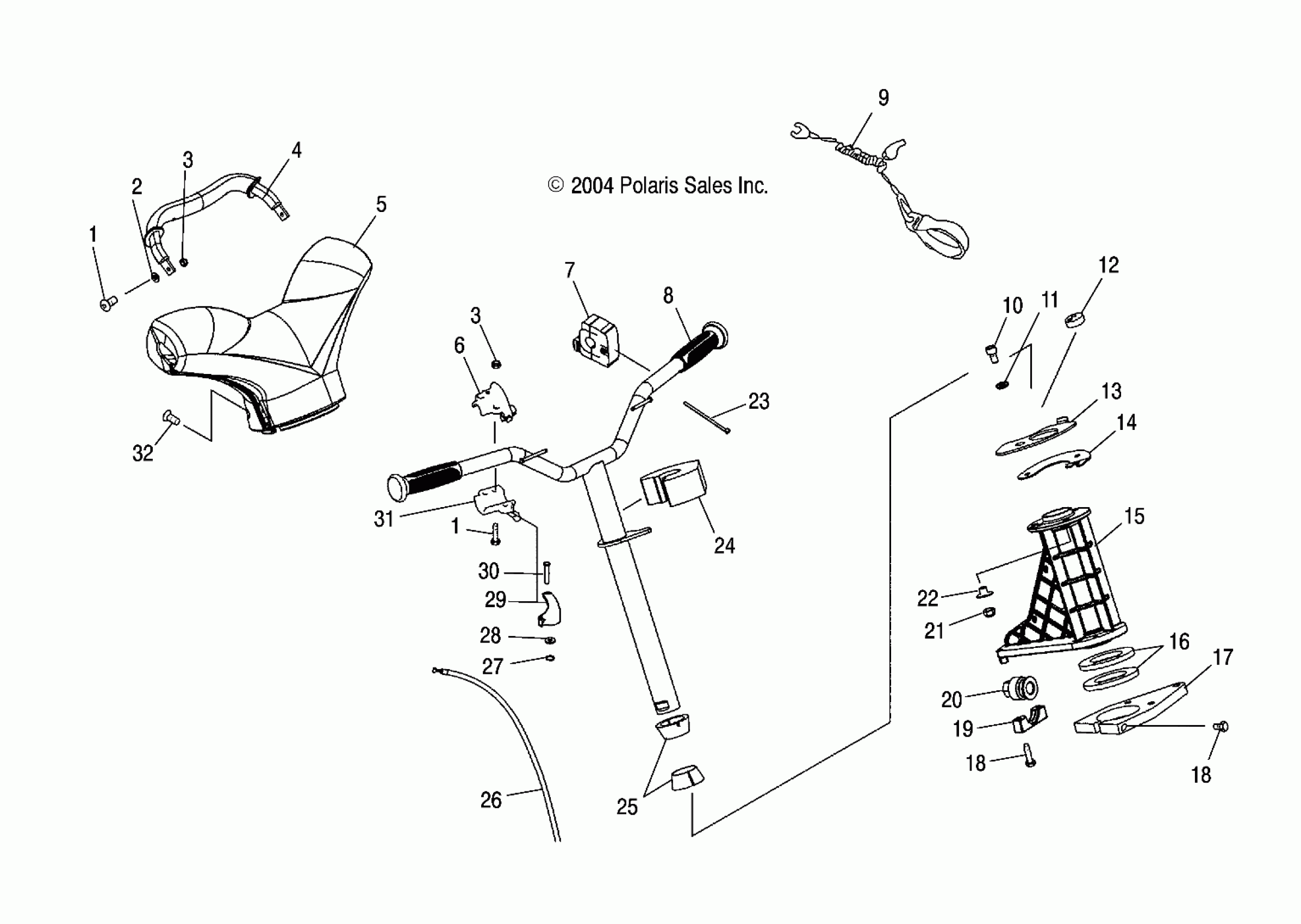

Polaris MSX 110 - W045304CA STEERING - W045304CA/IA/CB/IB/CC/IC (4990559055A10) Diagram

#

Description
Price

1

Screw

7517520

$2.38

1

Screw

7517520

$2.38

2

Washer, Flat

7555837

$1.59

3

Nut, Hex

7541931

$5.99

3

Nut, Hex

7541931

$5.99

4

Handle, Grab, Black

5433355-070

Unavailable

5

Pad, Handlebar, Black

5434516-070

$77.78

6

Block, Split, Throttle

5432729

$9.05

7

Switch, Start/Stop

2410381

$126.98

8

Asm., Handlebar/Column, Black

1821342-070

$216.99

9

Lanyard w/Whistle

7080675

Unavailable

10

Screw

7518247

Unavailable

11

Washer, Flat

7555831

Unavailable

12

Grommet, Cable

5410836

Unavailable

13

Bracket, Grommet

5246810

Unavailable

14

Plate, Top

5246438

Unavailable

15

Housing, Steering

5434771

$57.94

16

Washer, Shim

7556262

Unavailable

17

Arm, Steering

5631307

$24.60

18

Screw

7517528

Unavailable

18

Screw

7517528

Unavailable

19

Clamp

5434772

Unavailable

20

Adjuster, Mount

5434773

Unavailable

21

Nut, Hex

7542335

Unavailable

22

T-Nut

7547250

$3.33

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

Pad, Foam

5812485

$3.97

25

Bushing, Tapered

5434915

$8.17

26

Cable, Throttle

7081186

$65.87

27

Ring, Retaining

7710426

Unavailable

28

Washer, Flat

7555840

$3.33

29

Lever, Throttle

5434913

Unavailable

30

Pin, Retaining

7661628

Unavailable

31

Clamp, Split, Throttle, Black

5432728

Unavailable

32

Washer

7555836

$3.99

32

Washer, Lock

7552613

Unavailable

32

Screw

7518151

$2.06
