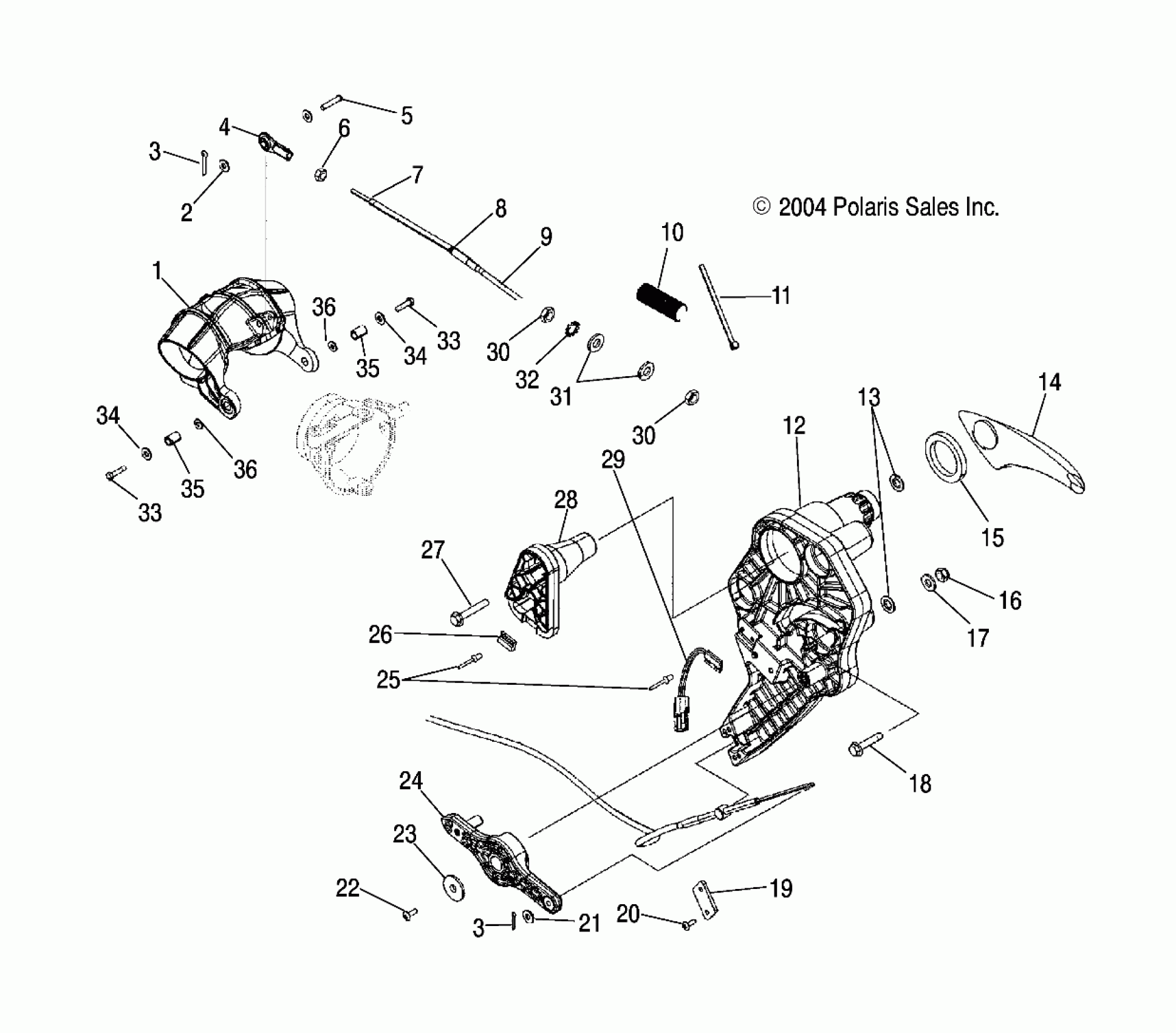

Polaris MSX 110 - W045304CA REVERSE - W045304CA/IA/CB/IB/CC/IC (4990559055A13) Diagram

#

Description
Price

1

Gate, Reverse

5435313

Unavailable

2

Washer, Flat

7555839

Unavailable

3

Pin, Cotter

7661010

$1.19

3

Pin, Cotter

7661010

$1.19

4

Rod, End

7061062

$27.94

5

Pin, Clevis

7661117

Unavailable

6

Nut

7542150

Unavailable

7

Seal, Rod

5412206

$2.94

8

Seal, Rod

5411818

Unavailable

9

Cable, Reverse

7081089

Unavailable

10

Conduit, Convoluted

4010051-100

$9.89

11

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

12

Plate, Base, Reverse

5435282

Unavailable

13

Retainer

7710556

Unavailable

14

Asm., Handle, Reverse, Black

2632646-070

$81.75

15

Gasket, Base, Reverse

5812529

Unavailable

16

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

17

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

18

Bolt

7516807

Unavailable

19

Plate, Cable Alignment

5435279

$23.02

20

Screw

7512049

Unavailable

21

Washer, Flat

7555837

$1.59

22

Screw

7518298

$1.90

23

Washer, Flat

7556299

$0.51

24

Arm, Reverse

5435281

$15.27

25

Rivet

7661159

Unavailable

26

Sensor, Reed, Magnet

2410417

Unavailable

27

SCREW

7516817

$2.06

28

Track, Reverse Driver

5435280

$21.27

29

Sensor, Reed, Switch, Reverse

2410442

$25.40

30

Nut

7547001

$1.90

30

Nut

7547001

$1.90

31

Washer, Flat

7555856

$3.19

32

Washer, Lock

7556269

$6.35

33

Bolt

7515368

Unavailable

33

Bolt

7515368

Unavailable

34

Washer, Flat

7555874

$2.38

34

Washer, Flat

7555874

$2.38

35

Collar

5020683

$6.59

35

Collar

5020683

$6.59

36

Washer

7555866

Unavailable

36

Washer

7555866

Unavailable
