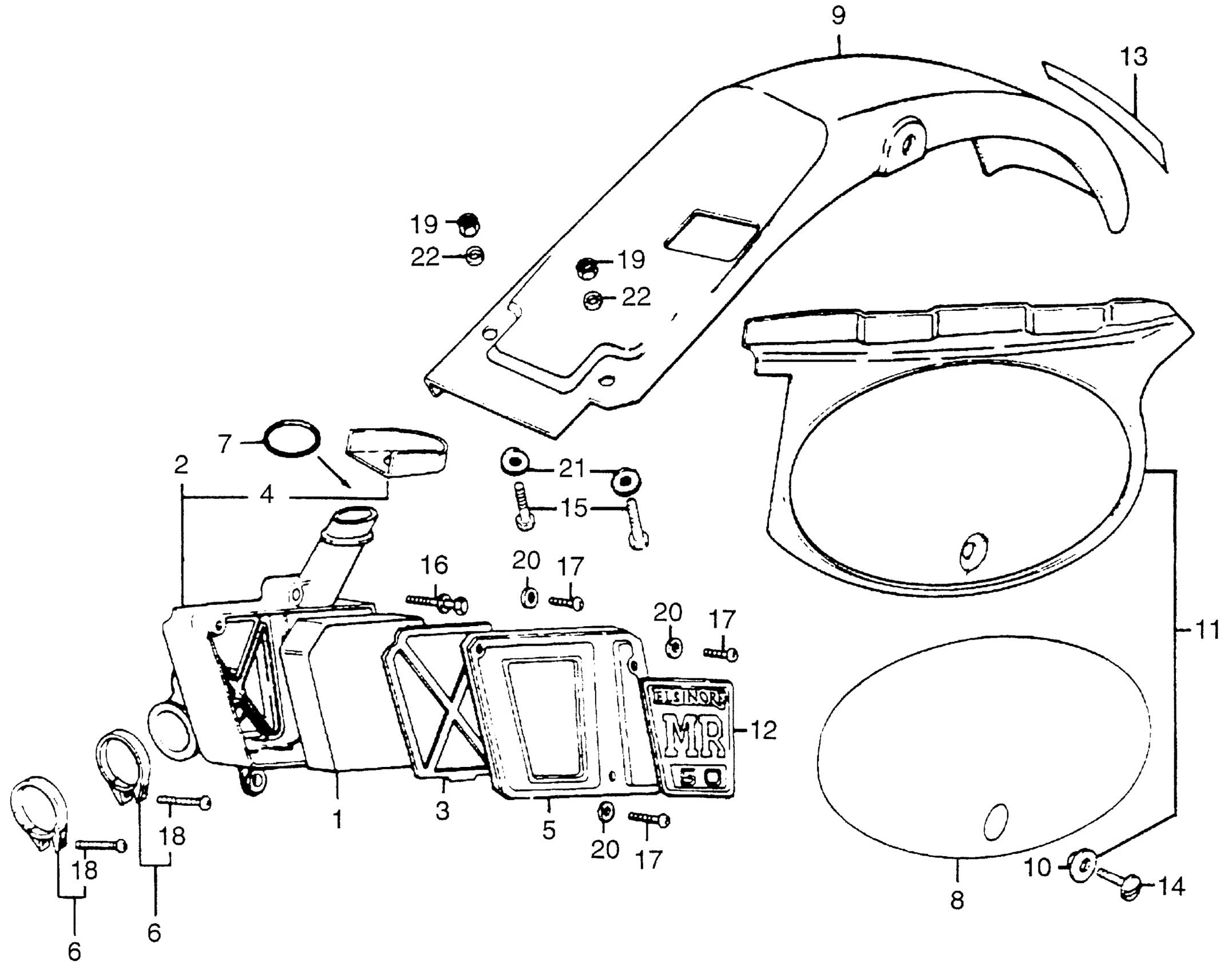

Honda MR50K1A MOTORCYCLE, JPN, VIN# MR50-2000001 REAR FENDER + AIR CLEANER + SIDE COVER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-131-000

Unavailable

2

HOUSING, AIR CLEANER (NOT AVAILABLE)

17221-131-000

Unavailable

3

PLATE B, CLEANER ELEMENT MOUNT (NOT AVAILABLE)

17223-131-000

Unavailable

4

COVER, AIR CLEANER DUCT (NOT AVAILABLE)

17224-131-000

Unavailable

5

COVER, AIR CLEANER (NOT AVAILABLE)

17231-131-000

Unavailable

6

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 17255-131-000.

95018-34250

$7.78

6

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 17257-GS7-000.

95018-34250

$7.78

6

BAND, AIR CLEANER CONNECTING TUBE (34) This part replaces 90652-GHB-600.

95018-34250

$7.78

6

BAND, AIR CLEANER CONNECTING TUBE (34)

95018-34250

$7.78

7

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

7

BAND A, AIR CLEANER IN. PIPE This part replaces 17258-122-000.

17231-051-000

$4.63

8

PLATE A, NUMBER (NOT AVAILABLE)

61132-131-000

Unavailable

8

EMBLEM, SIDE COVER (NOT AVAILABLE)

87128-131-670

Unavailable

9

FENDER, RR. *R23* (TAHITIAN RED) (NOT AVAILABLE)

80100-131-000EC

Unavailable

10

WASHER (6X20)

90512-300-000

$3.08

11

COVER, SIDE *R23* (TAHITIAN RED) (NOT AVAILABLE)

83600-131-000EC

Unavailable

12

EMBLEM, AIR CLEANER HOUSING COVER *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

87203-131-000BB

Unavailable

13

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-131-000

Unavailable

14

BOLT, CARBURETOR COVER MOUNT (NOT AVAILABLE)

90112-124-000

Unavailable

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

16

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

16

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

17

SCREW, PAN (4X8)

93500-04008-0B

Unavailable

18

SCREW, PAN (4X25)

93500-04025-0A

$1.93

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

WASHER, PLAIN (4MM)

94101-04000

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49
