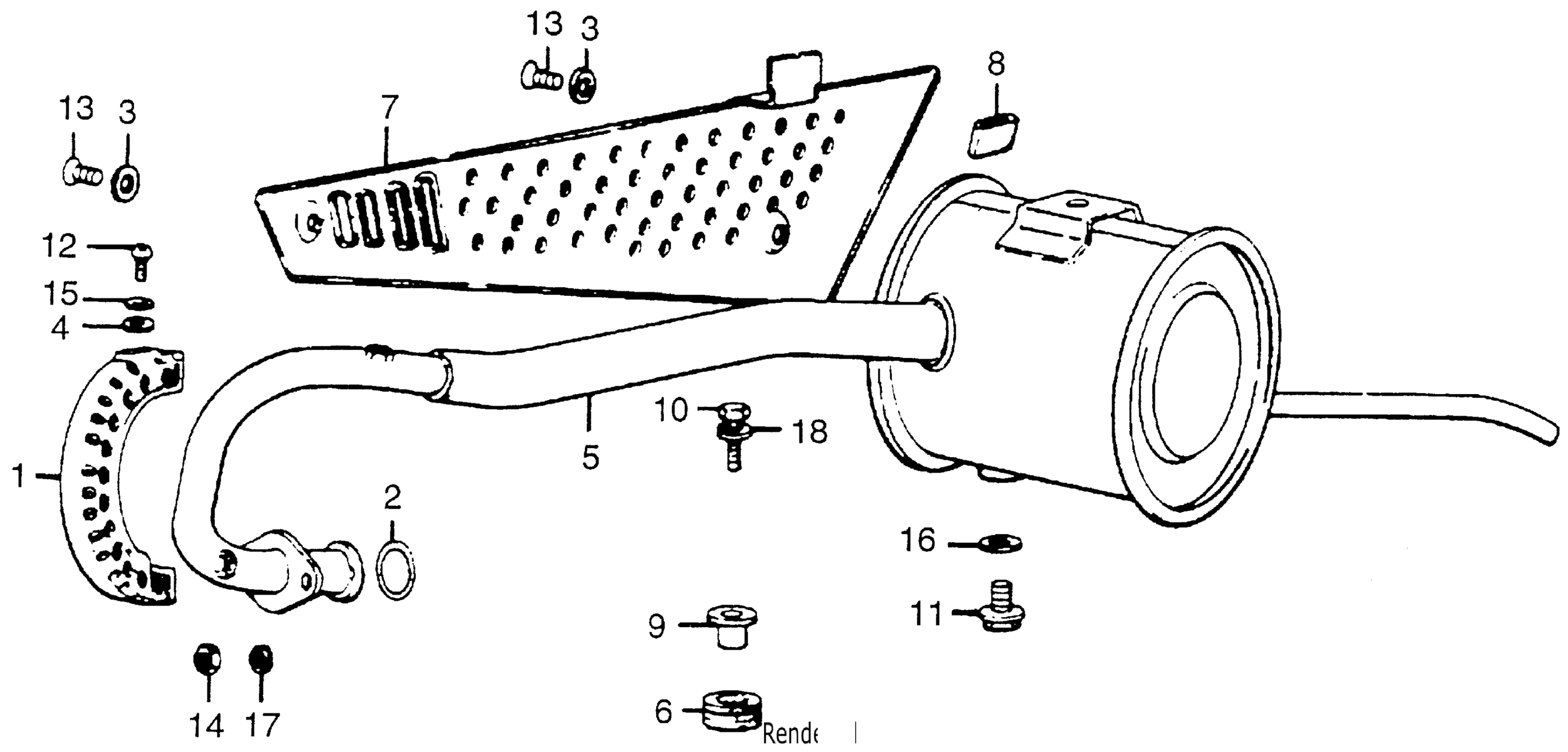

Honda MR50K1A MOTORCYCLE, JPN, VIN# MR50-2000001 MUFFLER Diagram

#

Description
Price

NI

COLLAR, EX. MUFFLER (NOT AVAILABLE)

18302-131-000

Unavailable

1

PROTECTOR, EX. PIPE (NOT AVAILABLE)

18240-131-000

Unavailable

2

GASKET, EX. PIPE This part replaces 18291-131-000.

18291-131-405

Unavailable

2

GASKET, EX. PIPE

18291-131-405

Unavailable

3

GASKET, PROTECTOR

18292-167-890

$1.82

3

GASKET, PROTECTOR This part replaces 18292-254-000.

18292-167-890

$1.82

4

GASKET, PROTECTOR

18292-167-890

$1.82

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.82

5

MUFFLER, EX. (NOT AVAILABLE) This part replaces 18300-131-013.

18300-131-017

Unavailable

5

MUFFLER, EX. (NOT AVAILABLE)

18300-131-017

Unavailable

6

CUSHION, EX. MUFFLER (NOT AVAILABLE)

18301-131-000

Unavailable

7

PROTECTOR, MUFFLER (NOT AVAILABLE)

18400-131-000

Unavailable

8

CAP, PROTECTOR STAY (NOT AVAILABLE)

18401-131-000

Unavailable

9

WASHER (8.3MM)

90534-011-000

$1.43

10

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

Unavailable

10

BOLT, HEX. (8X20)

92101-08020-0A

Unavailable

11

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.26

12

SCREW, PAN (5X8)

93500-05008-0A

$0.87

13

SCREW, OVAL (6X16) (NOT AVAILABLE)

93700-06016-40

Unavailable

14

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

14

NUT, HEX. (6MM)

94001-06200-0S

$1.31

15

WASHER, PLAIN (5MM)

94101-05000

$0.91

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

17

WASHER, SPRING (6MM)

94111-06000

$0.87

18

WASHER, SPRING (8MM)

94111-08000

Unavailable
