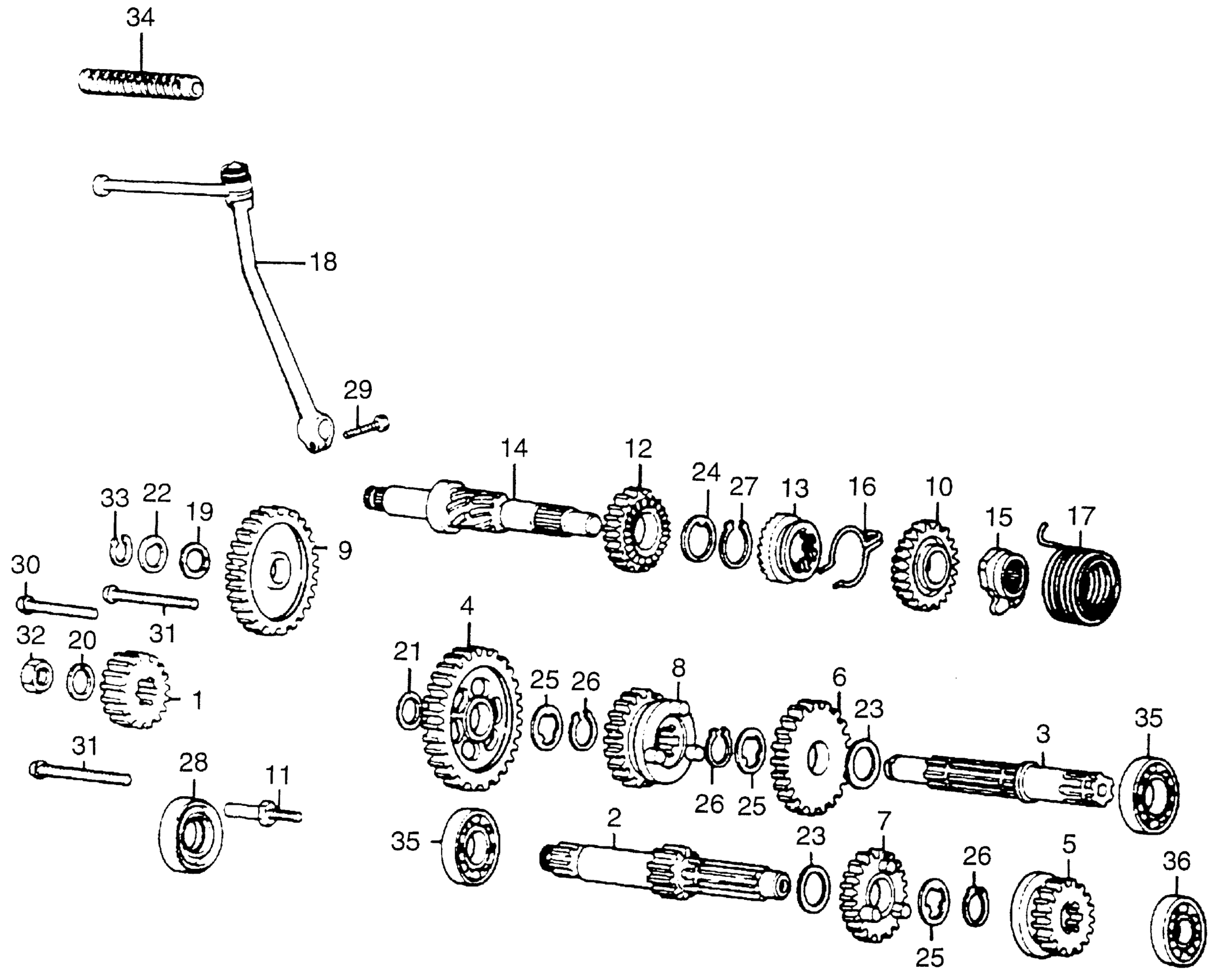

Honda MR50A MOTORCYCLE, JPN, VIN# MR50-1000001 TO MR50-1030570 TRANSMISSION Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

23101-131-000

Unavailable

2

MAINSHAFT, TRANSMISSION (12T) (NOT AVAILABLE)

23211-131-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-131-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (37T) (NOT AVAILABLE)

23426-115-020

Unavailable

5

GEAR, MAINSHAFT SECOND (19T) (NOT AVAILABLE)

23441-131-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (30T) (NOT AVAILABLE)

23451-131-000

Unavailable

7

GEAR, MAINSHAFT FOURTH (23T)

23481-115-000

Unavailable

8

GEAR, COUNTERSHAFT FOURTH (26T)

23491-115-010

$107.61

9

GEAR, PRIMARY STARTER IDLE (NOT AVAILABLE)

23530-131-000

Unavailable

10

GEAR, TRANSMISSION SPLASH (23T) (NOT AVAILABLE)

23535-131-000

Unavailable

11

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

12

PINION, KICK STARTER (24T) (NOT AVAILABLE)

28211-131-000

Unavailable

13

RATCHET, STARTER DRIVE

28221-131-000

Unavailable

14

SPINDLE, KICK STARTER

28251-131-000

Unavailable

16

SPRING, STARTER PINION FRICTION (NOT AVAILABLE)

28271-131-000

Unavailable

17

SPRING, KICK STARTER (NIPPON HATSUJO)

28281-035-003

$8.38

17

SPRING, KICK STARTER (NIPPON HATSUJO) This part replaces 28281-035-010.

28281-035-003

$8.38

18

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-131-000

Unavailable

20

WASHER, LOCK (NOT AVAILABLE)

90401-131-003

Unavailable

21

WASHER (13.5MM)

90451-035-000

Unavailable

22

WASHER, THRUST (19MM) (NOT AVAILABLE)

90451-131-000

Unavailable

23

WASHER B, THRUST (17MM)

90453-115-000

$2.28

24

WASHER, THRUST (25MM) (NOT AVAILABLE)

90458-107-000

Unavailable

25

WASHER, SPLINE (17MM)

90461-115-000

$2.66

26

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

27

CIRCLIP (25MM)

90601-107-000

$3.74

28

OIL SEAL (17X35X9) This part replaces 91201-122-005.

91201-122-305

Unavailable

28

OIL SEAL (17X35X9)

91201-122-305

Unavailable

29

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

29

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

30

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

30

SCREW, PAN (6X32)

93500-06032-0A

$1.49

31

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

31

SCREW, PAN (6X45)

93500-06045-0A

$1.49

32

NUT, HEX. (12MM) This part replaces 91544-371-980.

94001-12000-0S

$1.66

32

NUT, HEX. (12MM) This part replaces 94001-12000.

94001-12000-0S

$1.66

32

NUT, HEX. (12MM)

94001-12000-0S

$1.66

33

CIRCLIP (OUTER) (13MM)

94510-13000

$1.49

34

RUBBER A, KICK STARTER

95011-51000

$3.69

35

BEARING, RADIAL BALL (6003) This part replaces 96100-60030.

96100-60030-00

$9.35

35

BEARING, RADIAL BALL (6003)

96100-60030-00

$9.35

36

BEARING, RADIAL BALL (6201) This part replaces 96100-62010.

96100-62010-00

$8.08

36

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08
