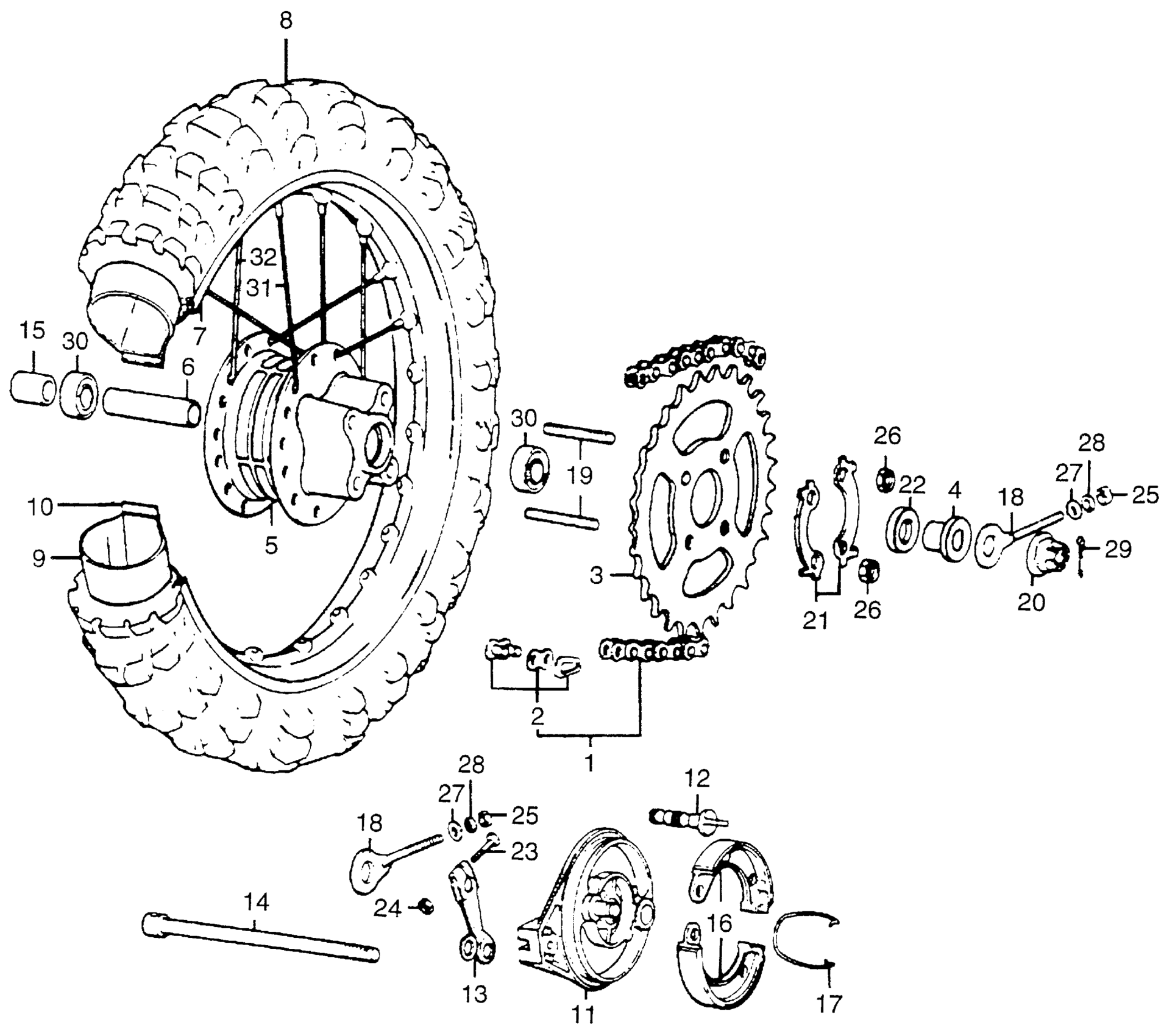

Honda MR50A MOTORCYCLE, JPN, VIN# MR50-1000001 TO MR50-1030570 REAR WHEEL + DRIVE CHAIN Diagram

#

Description
Price

1

CHAIN, DRIVE (92L)

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-098-771.

405W3-179-505

Unavailable

1

CHAIN, DRIVE (92L) This part replaces 40530-098-772.

405W3-179-505

Unavailable

2

MASTER LINK (DAIDO) This part replaces 40531-045-671.

40531-098-003

$3.74

2

MASTER LINK (DAIDO)

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-120-003.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-150-005.

40531-098-003

$3.74

2

MASTER LINK (DAIDO) This part replaces 40531-153-003.

40531-098-003

$3.74

3

SPROCKET, FINAL DRIVEN (43T) (NOT AVAILABLE)

41201-131-000

Unavailable

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-131-000

Unavailable

5

HUB, RR. WHEEL (NOT AVAILABLE)

42601-131-000

Unavailable

6

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-063-010

Unavailable

7

RIM, RR. WHEEL (NOT AVAILABLE)

42701-131-003

Unavailable

8

TIRE, RR. (2.75-12) (INOUE) (NOT AVAILABLE)

42711-131-005

Unavailable

9

TUBE, TIRE (275/300-12) (INOUE) This part replaces 08400-13100.

42712-GF5-005

Unavailable

9

TUBE, TIRE (275/300-12) (INOUE)

42712-GF5-005

Unavailable

9

TUBE, TIRE (275/300-12) (INOUE) This part replaces 42712-131-005.

42712-GF5-005

Unavailable

10

FLAP, TIRE (12) (INOUE) (NOT AVAILABLE)

42713-131-005

Unavailable

11

PANEL, RR. BRAKE

43100-131-003

Unavailable

12

CAM, RR. BRAKE (NOT AVAILABLE)

43141-081-000

Unavailable

12

CAM, RR. BRAKE (NOT AVAILABLE) This part replaces 43141-081-010.

43141-081-000

Unavailable

13

ARM, RR. BRAKE This part replaces 43410-131-003.

43410-131-305

Unavailable

13

ARM, RR. BRAKE

43410-131-305

Unavailable

14

AXLE, FR. WHEEL

44301-107-000

Unavailable

15

COLLAR, FR. WHEEL SIDE

44311-229-000

$6.58

16

SHOE SET, BRAKE

06430-131-405

$15.33

16

SHOE, FR. BRAKE

43120-GZ9-003

Unavailable

16

SHOE, FR. BRAKE This part replaces 45120-GE8-003.

43120-GZ9-003

Unavailable

16

SHOE, FR. BRAKE This part replaces 45120-GE8-505.

43120-GZ9-003

Unavailable

16

SHOE, FR. BRAKE This part replaces 45120-063-003.

43120-GZ9-003

Unavailable

16

SHOE, FR. BRAKE This part replaces 45120-147-010.

43120-GZ9-003

Unavailable

16

SHOE, FR. BRAKE This part replaces 45120-147-672.

43120-GZ9-003

Unavailable

17

SPRING, BRAKE SHOE

45133-044-000

$2.31

18

ADJUSTER A, R. CHAIN

95014-10100

$5.54

19

BOLT, STUD (8X35) (NOT AVAILABLE)

90125-131-000

Unavailable

20

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

20

NUT, AXLE (12MM)

90305-169-000

$6.28

21

WASHER, TONGUED (8MM) (NOT AVAILABLE)

90522-131-000

Unavailable

22

OIL SEAL (17X32X6) This part replaces 90752-044-000.

91201-727-641

Unavailable

22

OIL SEAL (17X32X6)

91201-727-641

Unavailable

23

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

23

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

23

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

24

NUT, HEX. (5MM)

94001-05000-0S

$2.74

25

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

25

NUT, HEX. (6MM)

94001-06200-0S

$1.49

26

NUT, HEX. (8MM)

94030-08000

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

PIN, COTTER (3.0X45)

94201-30450

$1.49

30

BEARING, RADIAL BALL (6201U)

96140-62010-10

$10.28

31

SPOKE B (12X118.5)

97118-22077-10

Unavailable

32

SPOKE B (12X118)

97545-22076-10

Unavailable
