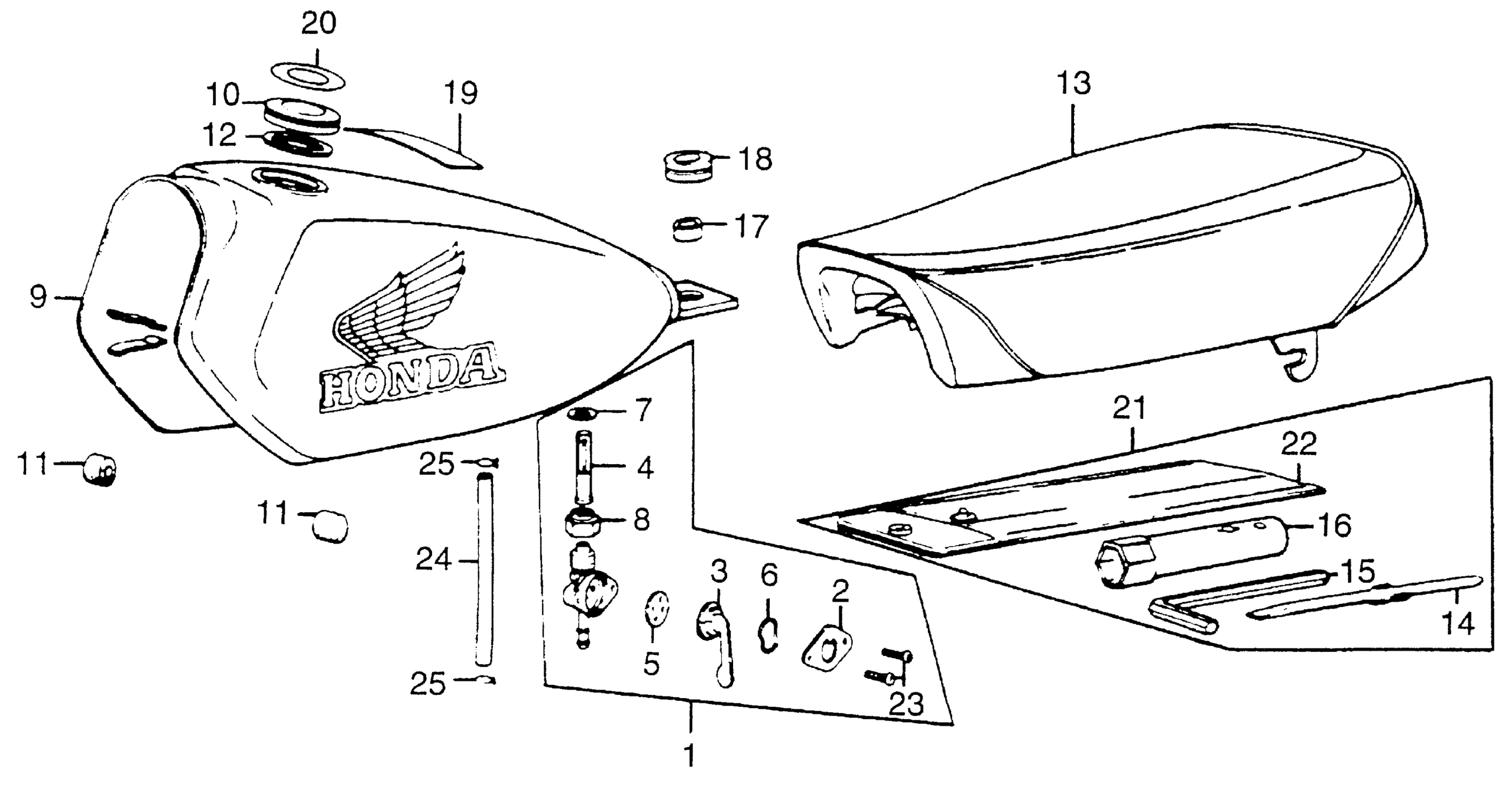

Honda MR50A MOTORCYCLE, JPN, VIN# MR50-1000001 TO MR50-1030570 FUEL TANK + SEAT + TOOL SET Diagram

#

Description
Price

1

PETCOCK ASSY.

16950-045-005

$33.96

2

COVER, PETCOCK (NOT AVAILABLE)

16952-081-005

Unavailable

3

LEVER, VALVE (NOT AVAILABLE)

16953-081-005

Unavailable

4

STRAINER, PETCOCK

16954-045-005

Unavailable

5

GASKET, VALVE

16955-268-020

$4.86

6

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.01

6

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.01

6

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.01

6

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.01

7

GASKET, FUEL STRAINER CUP

16958-081-015

Unavailable

8

NUT, TURN BUCKLE (NOT AVAILABLE)

16962-081-005

Unavailable

9

TANK ASSY., FUEL *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

17500-131-000BB

Unavailable

10

CAP ASSY., FUEL FILLER (NOT AVAILABLE)

17610-131-305

Unavailable

11

RUBBER, FR. FUEL TANK

17611-045-670

$6.34

12

GASKET This part replaces 17631-001-000.

17631-096-702

$2.36

12

GASKET This part replaces 17631-096-701.

17631-096-702

$2.36

13

SEAT ASSY. (NOT AVAILABLE)

77100-131-000

Unavailable

14

DRIVER

83513-044-000

$3.81

15

WRENCH, HEXAGON KEY (NOT AVAILABLE)

83514-131-000

Unavailable

16

WRENCH, BOX (21) (NOT AVAILABLE)

83517-122-000

Unavailable

17

COLLAR B, BATTERY TRAY MOUNT (NOT AVAILABLE)

83614-303-000

Unavailable

18

RUBBER B, BATTERY TRAY MOUNT (NOT AVAILABLE)

83615-303-000

Unavailable

19

LABEL, CAUTION (NOT AVAILABLE)

87560-131-000

Unavailable

20

MARK, OIL CAUTION (NOT AVAILABLE)

87570-131-000

Unavailable

21

TOOL SET (NOT AVAILABLE)

89010-131-000

Unavailable

22

BAG, TOOL

89101-063-000

$2.22

23

SCREW, PAN (3X6)

93500-03006-0A

$0.83

24

BULK HOSE, FUEL (4.5X3000) (4.5X100)

95001-45003-60M

$32.93

24

BULK HOSE, FUEL (4.5X3000) (4.5X100)

95001-45003-60M

$32.93

25

CLIP, TUBE (4.5)

95002-45000

$1.13
