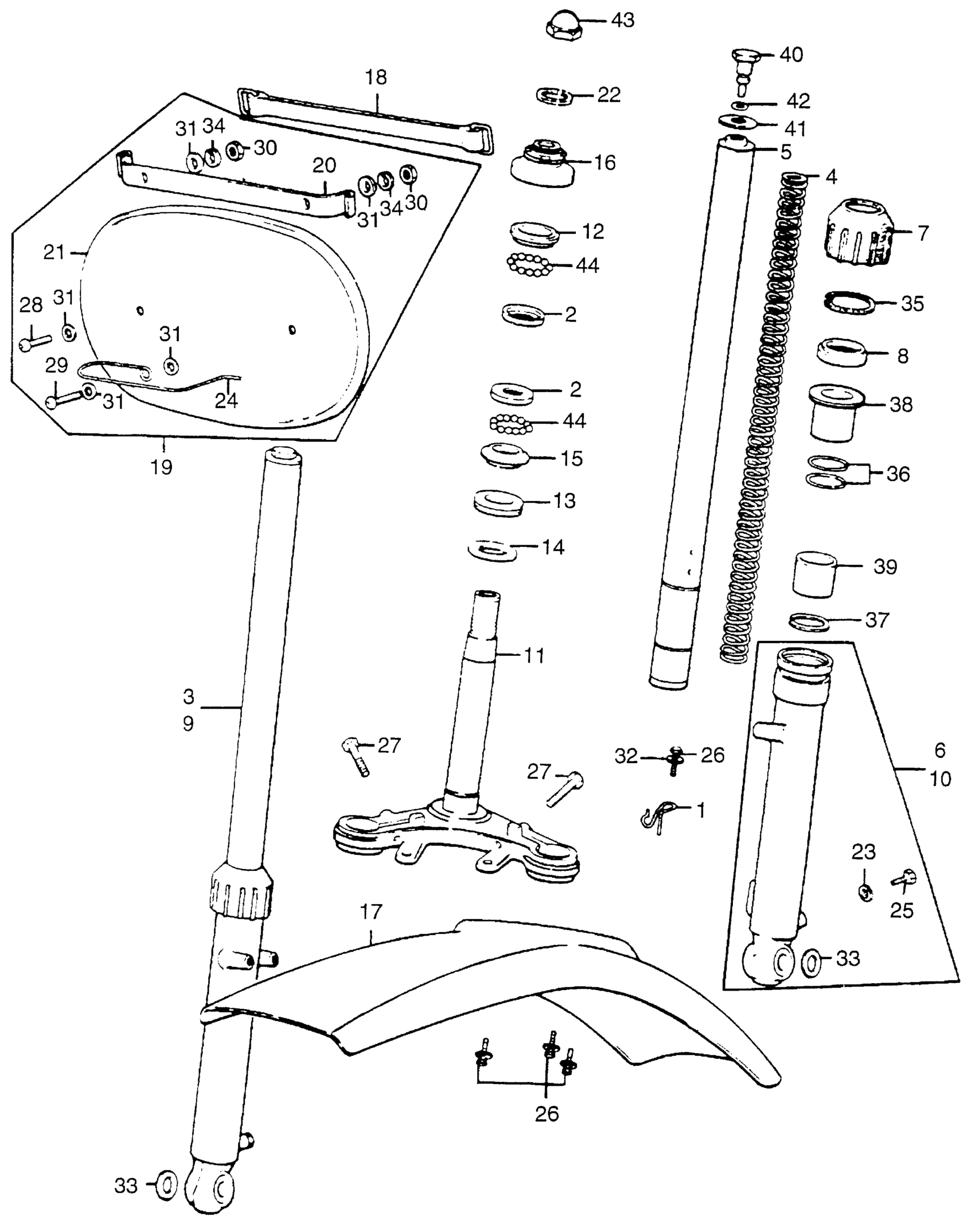

Honda MR50A MOTORCYCLE, JPN, VIN# MR50-1000001 TO MR50-1030570 FRONT FENDER + FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45469-116-670

Unavailable

2

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$11.38

2

RACE, STEERING TOP BALL

50301-041-010

$11.38

2

RACE, STEERING BALL This part replaces 50301-041-305.

50301-041-010

$11.38

3

FORK ASSY., R. FR.

51400-131-003

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-131-003

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-131-003

Unavailable

6

CASE, R. FR. FORK (LOWER) (NOT AVAILABLE)

51420-131-003

Unavailable

7

DUST SEAL, FR. FORK

51425-131-003

Unavailable

8

OIL SEAL, FR. FORK

51432-051-000

$12.28

9

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-131-003

Unavailable

10

CASE, L. FR. FORK (LOWER) (NOT AVAILABLE)

51520-131-003

Unavailable

11

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-131-000B

Unavailable

12

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$10.18

12

RACE, STEERING CONE (UPPER)

53211-028-010

$10.18

12

RACE, STEERING TOP CONE This part replaces 53211-028-305.

53211-028-010

$10.18

13

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.40

14

WASHER, STEERING HEAD DUST SEAL

53215-001-000

$2.74

15

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$9.85

15

RACE, STEERING CONE (LOWER)

53212-030-010

$9.85

15

RACE, STEERING CONE (LOWER) This part replaces 53212-937-000.

53212-030-010

$9.85

15

RACE, STEERING CONE (LOWER) This part replaces 53217-030-305.

53212-030-010

$9.85

16

THREAD, STEERING HEAD TOP

53220-028-000

Unavailable

17

FENDER, FR. *R18* (DAYTONA ORANGE) (NOT AVAILABLE)

61100-131-000BB

Unavailable

18

BAND, FR. NUMBER PLATE (NOT AVAILABLE)

61133-131-000

Unavailable

19

PLATE ASSY., FR. NUMBER *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

64110-131-000ZA

Unavailable

20

STAY, FR. NUMBER PLATE (NOT AVAILABLE)

64111-131-000

Unavailable

21

PLATE, FR. NUMBER *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

64113-116-690WF

Unavailable

22

WASHER, STEERING STEM

90503-051-870

$2.62

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.28

24

GUIDE, CABLE (NOT AVAILABLE)

61138-357-000

Unavailable

25

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.26

25

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.26

25

BOLT, HEX. (6X8)

92101-06008-0A

$1.26

26

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.31

26

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.31

26

BOLT, HEX. (6X12)

92101-06012-0A

$1.31

27

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.80

27

BOLT, HEX. (8X32)

92101-08032-0B

$2.80

28

SCREW, PAN (5X12)

93500-05012-0A

$0.84

29

SCREW, PAN (5X16)

93500-05016-0A

$0.84

30

NUT, HEX. (5MM)

94001-05000-0S

$2.80

31

WASHER, PLAIN (5MM)

94101-05000

$0.91

32

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

32

WASHER, PLAIN (6MM)

94101-06800

Unavailable

33

WASHER, PLAIN (10MM)

94101-10000

Unavailable

34

WASHER, SPRING (5MM)

94111-05000

$1.04

35

CIRCLIP (INNER) (35MM) (NOT AVAILABLE)

94536-35120

Unavailable

36

RING A, SNAP (25MM) (NOT AVAILABLE)

94570-25000

Unavailable

37

RING B, SNAP (25MM) (NOT AVAILABLE)

94580-25000

Unavailable

38

GUIDE, FORK PIPE (25MM) (NOT AVAILABLE)

94602-25000

Unavailable

39

PISTON, FR. FORK

51442-051-010

Unavailable

39

PISTON, FR. FORK This part replaces 94603-25000.

51442-051-010

Unavailable

40

BOLT, FORK A

94605-10101

$4.96

41

WASHER, FORK BOLT (13MM)

94606-13001

$0.81

42

O-RING (8.4X2.4)

94608-10000

$2.41

43

NUT, STEERING STEM

90304-159-000

$6.71

43

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$6.71

44

BALL, STEEL (#6) (3/16)

96211-06000

$0.47
