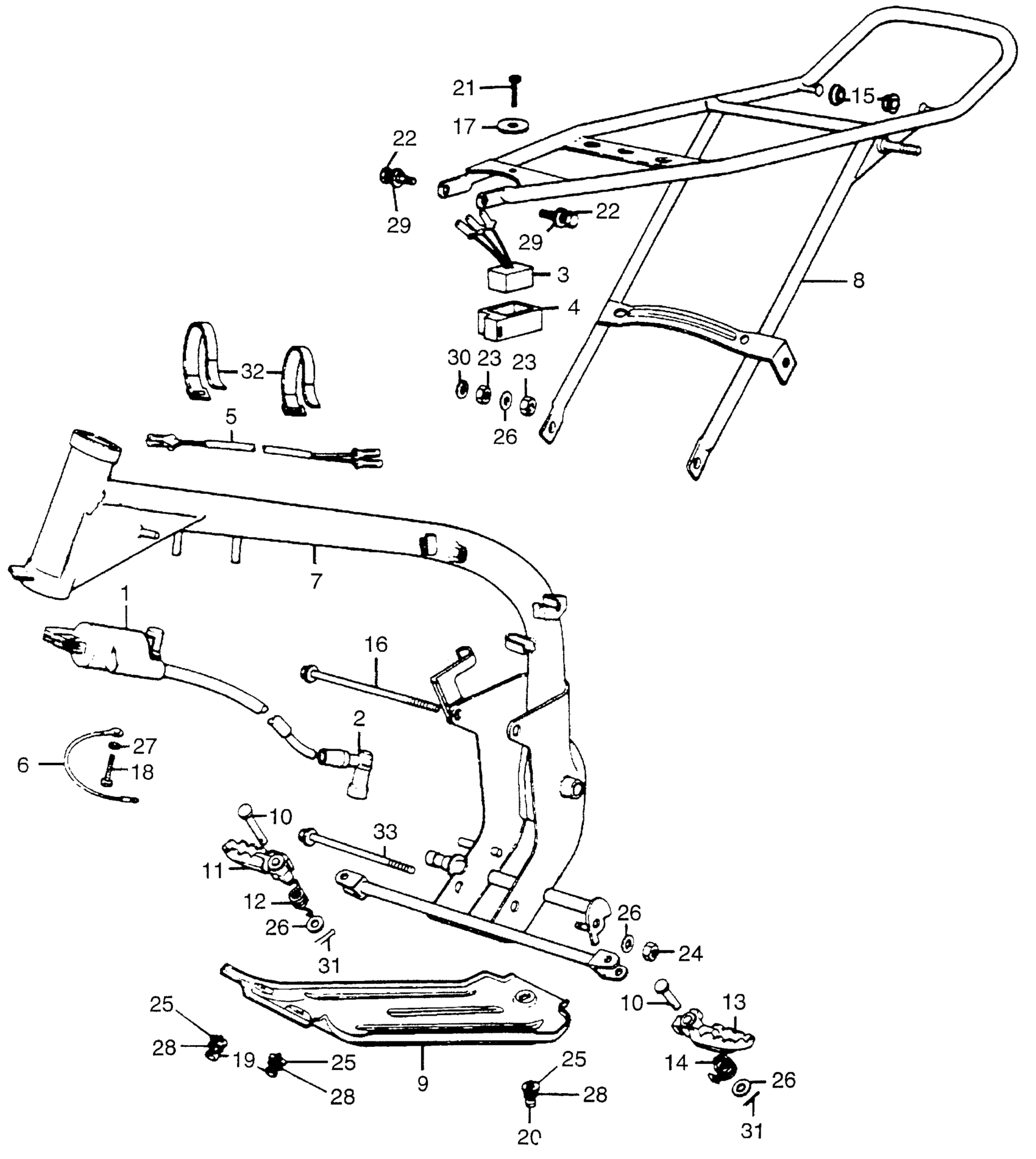

Honda MR50A MOTORCYCLE, JPN, VIN# MR50-1000001 TO MR50-1030570 FRAME Diagram

#

Description
Price

1

COIL, IGNITION (NOT AVAILABLE)

30500-131-003

Unavailable

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-153.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-158.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-098-163.

30700-KE2-942

$17.87

2

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-259-810.

30700-KE2-942

$17.87

3

RECTIFIER ASSY. (NOT AVAILABLE)

31700-131-008

Unavailable

4

RUBBER, SILICON RECTIFIER (NOT AVAILABLE)

31701-131-000

Unavailable

5

WIRE HARNESS (NOT AVAILABLE)

32100-131-000

Unavailable

6

SUB-WIRE, GROUND (NOT AVAILABLE)

32102-131-000

Unavailable

7

FRAME, FR. *NH1* (BLACK)

50105-131-000B

Unavailable

8

FRAME, RR. *NH1* (BLACK) (NOT AVAILABLE)

50110-131-000B

Unavailable

9

PLATE, SKID (NOT AVAILABLE)

50351-131-000

Unavailable

10

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

10

PIN, STEP BAR JOINT

50603-033-010

$3.30

11

STEP, R. (NOT AVAILABLE)

50616-357-000

Unavailable

12

SPRING, R. STEP RETURN

50617-MM9-000

$4.53

12

SPRING, R. STEP RETURN This part replaces 50617-329-000.

50617-MM9-000

$4.53

13

STEP, L. (NOT AVAILABLE)

50642-357-000

Unavailable

14

SPRING, L. STEP RETURN

50644-MM9-000

$4.53

14

SPRING, L. STEP RETURN This part replaces 50644-329-000.

50644-MM9-000

$4.53

15

RUBBER, RR. FENDER SET (NOT AVAILABLE)

80111-131-000

Unavailable

16

BOLT, ENGINE HANGER (NOT AVAILABLE)

90106-131-000

Unavailable

17

WASHER (18MM)

90581-831-650

$1.87

18

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

18

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

18

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

19

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

22

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

23

NUT, HEX. (8MM)

94030-08000

$1.49

24

NUT, HEX. (8MM)

94030-08000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49

29

WASHER, SPRING (8MM)

94111-08000

$1.49

30

WASHER, SPRING (8MM)

94111-08000

$1.49

31

PIN, COTTER (1.6X25)

94201-16250

$1.49

32

BAND A3, CABLE

95014-61300

$1.97

33

BOLT, HEX. (8X75) This part replaces 95300-08075.

95300-08075-00

Unavailable
