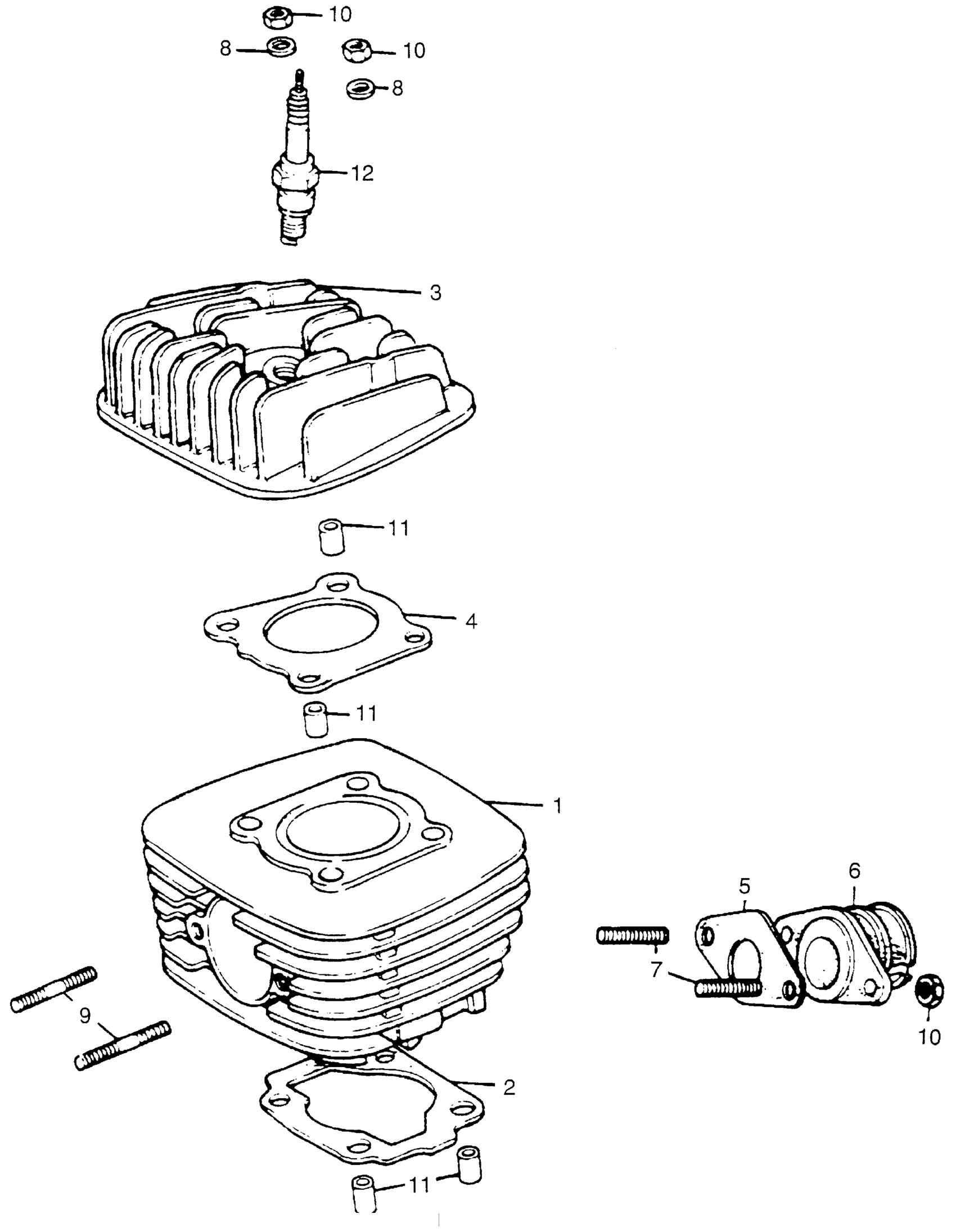

Honda MR50A MOTORCYCLE, JPN, VIN# MR50-1000001 TO MR50-1030570 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-131-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-122-000.

12191-122-306

Unavailable

2

GASKET, CYLINDER

12191-122-306

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-131-000

Unavailable

4

GASKET, CYLINDER HEAD

12251-131-003

Unavailable

5

GASKET, CARBURETOR INSULATOR This part replaces 16267-131-000.

16267-131-405

$3.69

5

GASKET, CARBURETOR INSULATOR

16267-131-405

$3.69

6

FLANGE, CARBURETOR INSULATOR (NOT AVAILABLE)

17114-131-003

Unavailable

7

BOLT, STUD (6X24) (NOT AVAILABLE)

90034-131-000

Unavailable

8

WASHER, SEALING (6MM)

90442-035-000

$2.21

9

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

9

BOLT, STUD (6X18)

92900-06018-0B

$1.55

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

11

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

12

SPARK PLUG (B6HS) (NGK) This part replaces 98076-56710.

98076-56740

$2.00

12

SPARK PLUG (B6HS) (NGK)

98076-56740

$2.00

12

SPARK PLUG (B6HS) (NGK) This part replaces 98076-56741.

98076-56740

$2.00
