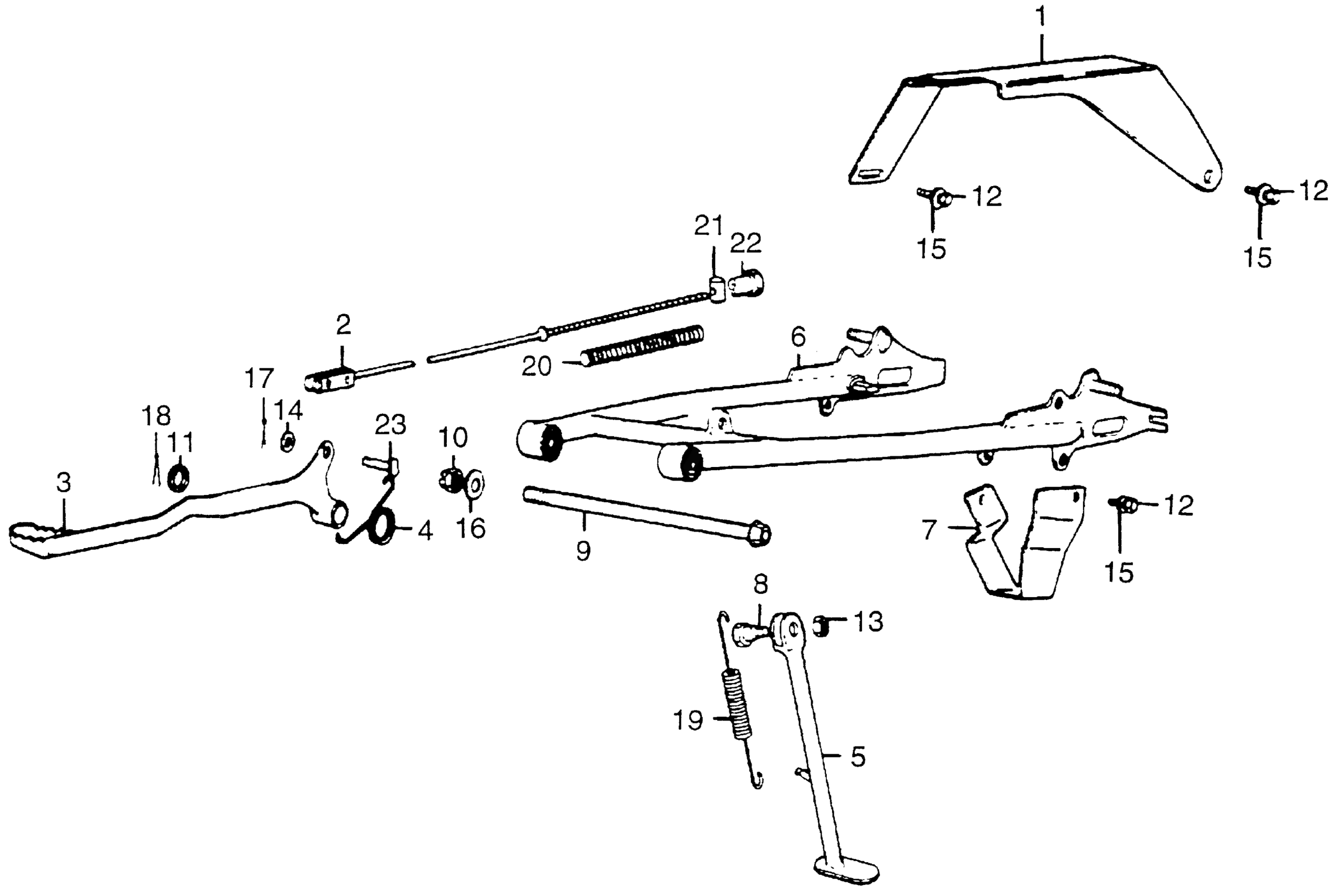

Honda MR50A MOTORCYCLE, JPN, VIN# MR50-1000001 TO MR50-1030570 BRAKE PEDAL + SIDE STAND + SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40510-131-000

Unavailable

2

ROD, RR. BRAKE (NOT AVAILABLE)

43450-131-000

Unavailable

3

PEDAL, BRAKE (NOT AVAILABLE)

46510-131-000

Unavailable

4

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-131-000

Unavailable

5

STAND, SIDE (NOT AVAILABLE)

50530-131-000

Unavailable

6

SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-131-000B

Unavailable

7

GUIDE, CHAIN (NOT AVAILABLE)

52156-131-000

Unavailable

8

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

9

BOLT, SWINGARM PIVOT

90121-GJ5-000

Unavailable

9

BOLT, SWINGARM PIVOT This part replaces 90121-131-000.

90121-GJ5-000

Unavailable

10

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

11

WASHER (16X22) (NOT AVAILABLE)

90520-131-000

Unavailable

12

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

12

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

13

NUT, HEX. (10MM)

94002-10000-0S

$4.06

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, PLAIN (10MM)

94101-10000

$1.49

17

PIN, COTTER (1.6X12)

94201-16120

$1.49

18

PIN, COTTER (3.0X45)

94201-30450

$1.49

19

SPRING A, SIDE STAND This part replaces 95014-72101.

95014-72102

$2.84

19

SPRING A, SIDE STAND

95014-72102

$2.84

20

SPRING A, BRAKE ROD

95014-73100

$1.49

21

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

21

JOINT A, BRAKE ARM

95015-31001

$1.53

22

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49

23

PIN B, BRAKE ROD JOINT

95015-52000

$2.03
