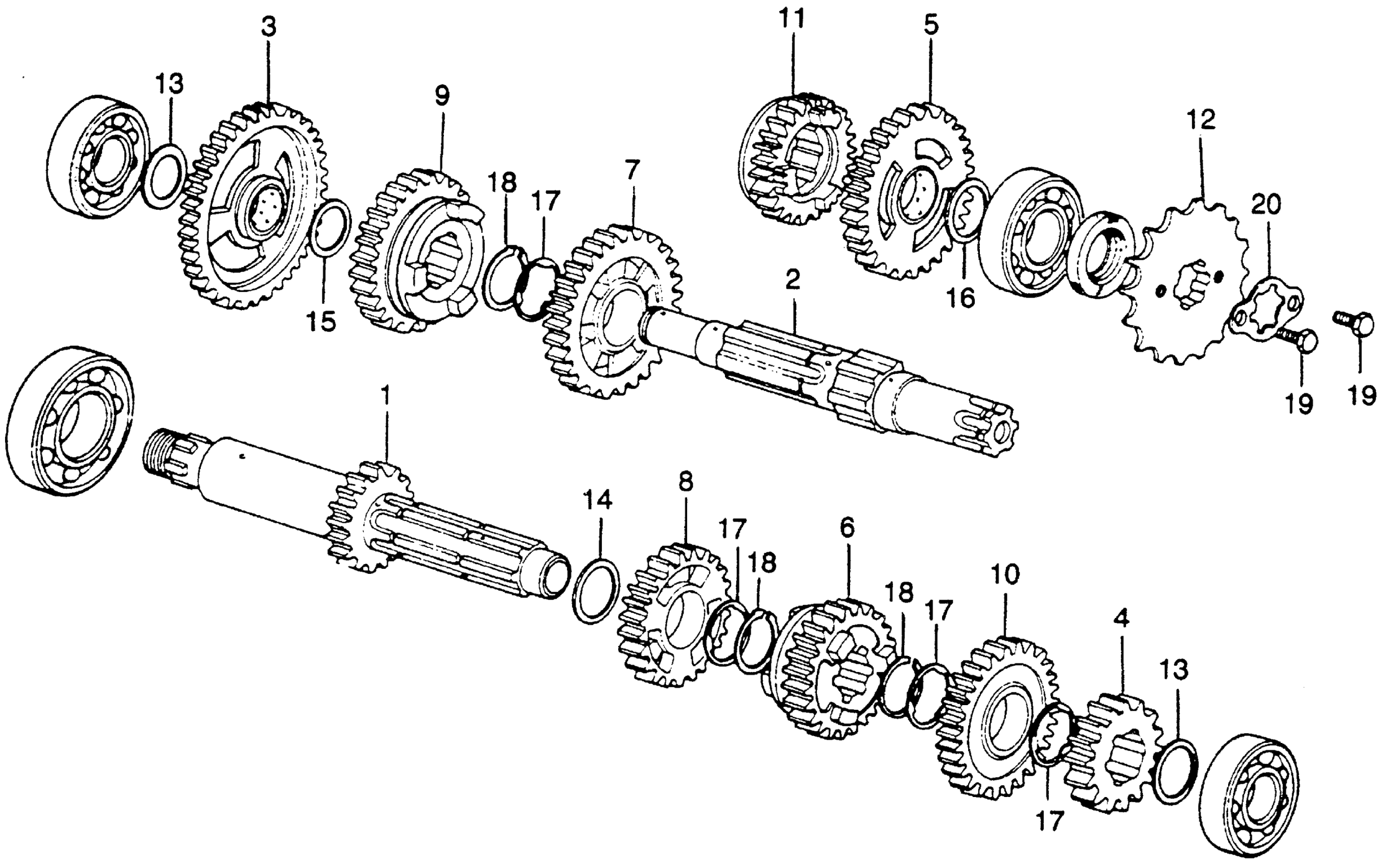

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 TRANSMISSION Diagram

MAINSHAFT, TRANSMISSION (NOT AVAILABLE)

23210-395-000

Unavailable

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE)

23221-357-040

Unavailable

GEAR, COUNTERSHAFT LOW (38T) (NOT AVAILABLE)

23410-395-000

Unavailable

GEAR, MAINSHAFT SECOND (19T) (NOT AVAILABLE)

23421-395-000

Unavailable

GEAR, COUNTERSHAFT SECOND (34T)

23430-395-000

Unavailable

GEAR, MAINSHAFT THIRD (24T) (NOT AVAILABLE)

23441-395-000

Unavailable

GEAR, COUNTERSHAFT THIRD (30T) (NOT AVAILABLE)

23451-395-000

Unavailable

GEAR, MAINSHAFT FOURTH (28T) (NOT AVAILABLE)

23461-395-000

Unavailable

GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE)

23471-395-000

Unavailable

GEAR, MAINSHAFT FIFTH (32T)

23481-358-000

Unavailable

GEAR, COUNTERSHAFT FIFTH (23T)

23491-395-000

Unavailable

SPROCKET, DRIVE (13T) (NOT AVAILABLE) | (Optional). This part replaces 23801-395-810.

23801-357-810

$26.69

SPROCKET, DRIVE (14T) (NOT AVAILABLE) This part replaces 23802-395-000.

23801-362-000

Unavailable

SPROCKET, DRIVE (15T) (NOT AVAILABLE) | (Optional).

23803-357-810

Unavailable

WASHER, THRUST (17.2MM)

90446-357-000

$3.60

WASHER, THRUST (22MM)

90452-357-000

$5.79

WASHER, THRUST (18.6MM)

90457-357-000

Unavailable

WASHER, THRUST

90459-700-000

Unavailable

WASHER, SPLINE (22MM) This part replaces 90463-357-000.

90463-437-000

$3.49

WASHER, SPLINE (22MM)

90463-437-000

$3.49

CIRCLIP (OUTER) (22MM)

90601-329-000

$2.67

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

PLATE B, FIXING

95014-92100

$1.49
