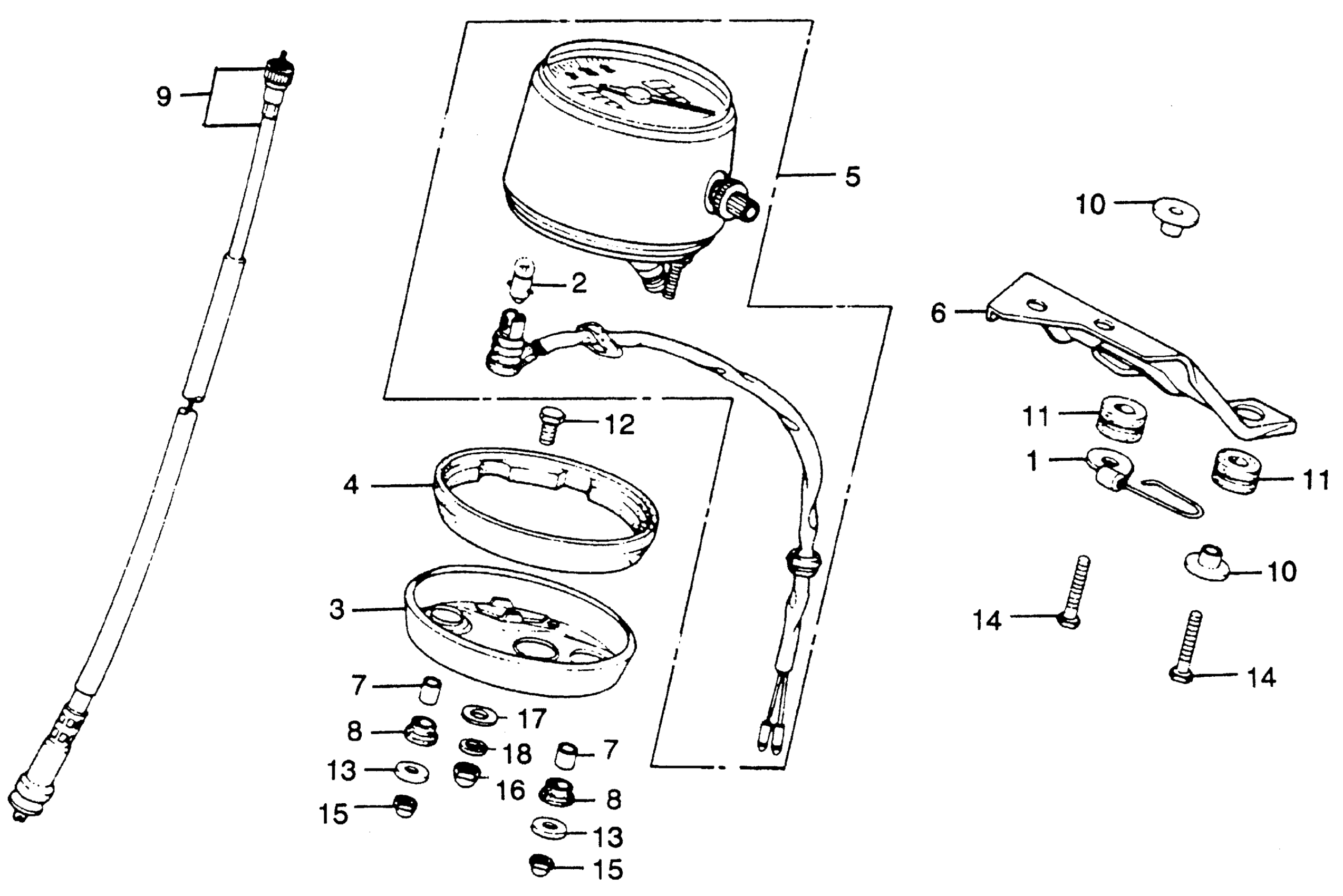

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 SPEEDOMETER Diagram

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22880-395-670

Unavailable

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

RING, L. METER SETTING

37112-453-008

Unavailable

RUBBER, METER (NOT AVAILABLE)

37113-453-008

Unavailable

SPEEDOMETER ASSY.

37200-395-670

Unavailable

STAY, SPEEDOMETER (NOT AVAILABLE)

37212-395-670

Unavailable

COLLAR, INSTRUMENT SETTING

37243-453-000

Unavailable

RUBBER, METER SETTING

37244-307-670

$2.67

CABLE ASSY., SPEEDOMETER

44830-KB7-000

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-313-000.

44830-KB7-000

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-369-700.

44830-KB7-000

Unavailable

CABLE ASSY., SPEEDOMETER This part replaces 44830-437-670.

44830-KB7-000

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

COLLAR, RR. FENDER

61105-428-000

Unavailable

RUBBER, SETTING (22MM)

61315-358-000

$5.34

BOLT, METER SETTING

90159-356-000

$4.58

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

NUT, CAP (6MM) This part replaces 94021-06220.

94021-06220-0S

$1.61

NUT, CAP (6MM)

94021-06220-0S

$1.61

NUT, CAP (8MM)

94021-08000-0S

$1.55

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
