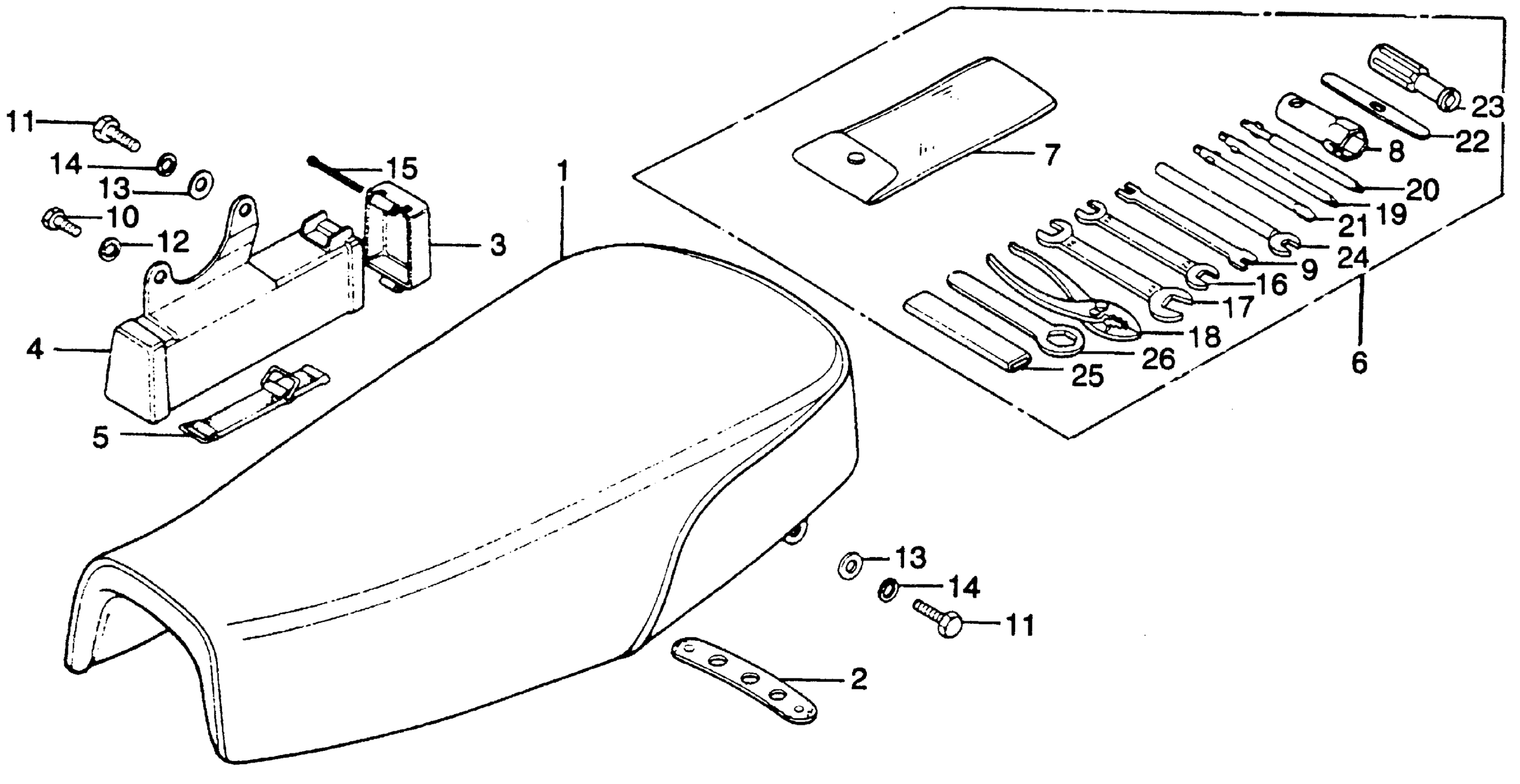

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 SEAT + TOOL Diagram

#

Description
Price

1

SEAT (NOT AVAILABLE)

77100-395-670

Unavailable

2

RUBBER, SEAT MOUNT (NOT AVAILABLE)

77106-357-000

Unavailable

3

CAP, TOOL BOX (NOT AVAILABLE)

83541-385-000

Unavailable

4

BOX, TOOL (NOT AVAILABLE)

83550-395-670

Unavailable

5

BAND, SIDE COVER

83606-356-000

$21.36

6

TOOL SET (NOT AVAILABLE)

89010-395-670

Unavailable

7

BAG, TOOL (NOT AVAILABLE)

89101-329-000

Unavailable

8

WRENCH, BOX (P21) (NOT AVAILABLE)

89216-357-000

Unavailable

9

SPANNER, SPOKE (NOT AVAILABLE)

89217-357-000

Unavailable

10

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.43

10

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.43

10

BOLT, HEX. (6X12)

92101-06012-0A

$1.43

11

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.47

11

BOLT, HEX. (8X16)

92101-08016-0A

$1.47

12

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

12

WASHER, PLAIN (6MM)

94101-06800

Unavailable

13

WASHER, PLAIN (8MM)

94101-08000

Unavailable

14

WASHER, SPRING (8MM)

94111-08000

Unavailable

15

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.01

15

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.01

15

PIN, COTTER (2.0X35)

94201-20350

$1.01

16

WRENCH (10X12) (OPEN END)

99001-10120

$5.43

17

WRENCH (14X17) (OPEN END)

99001-14170

$9.16

18

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$16.78

19

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.31

20

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.31

21

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.31

22

LEVER, TIRE

99003-40000

$1.18

23

GRIP

99003-50000

$4.31

24

BAR B, HANDLE

99005-02000

$2.42

25

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.76

26

WRENCH, EYE (26MM) (NOT AVAILABLE)

99006-26000

Unavailable
