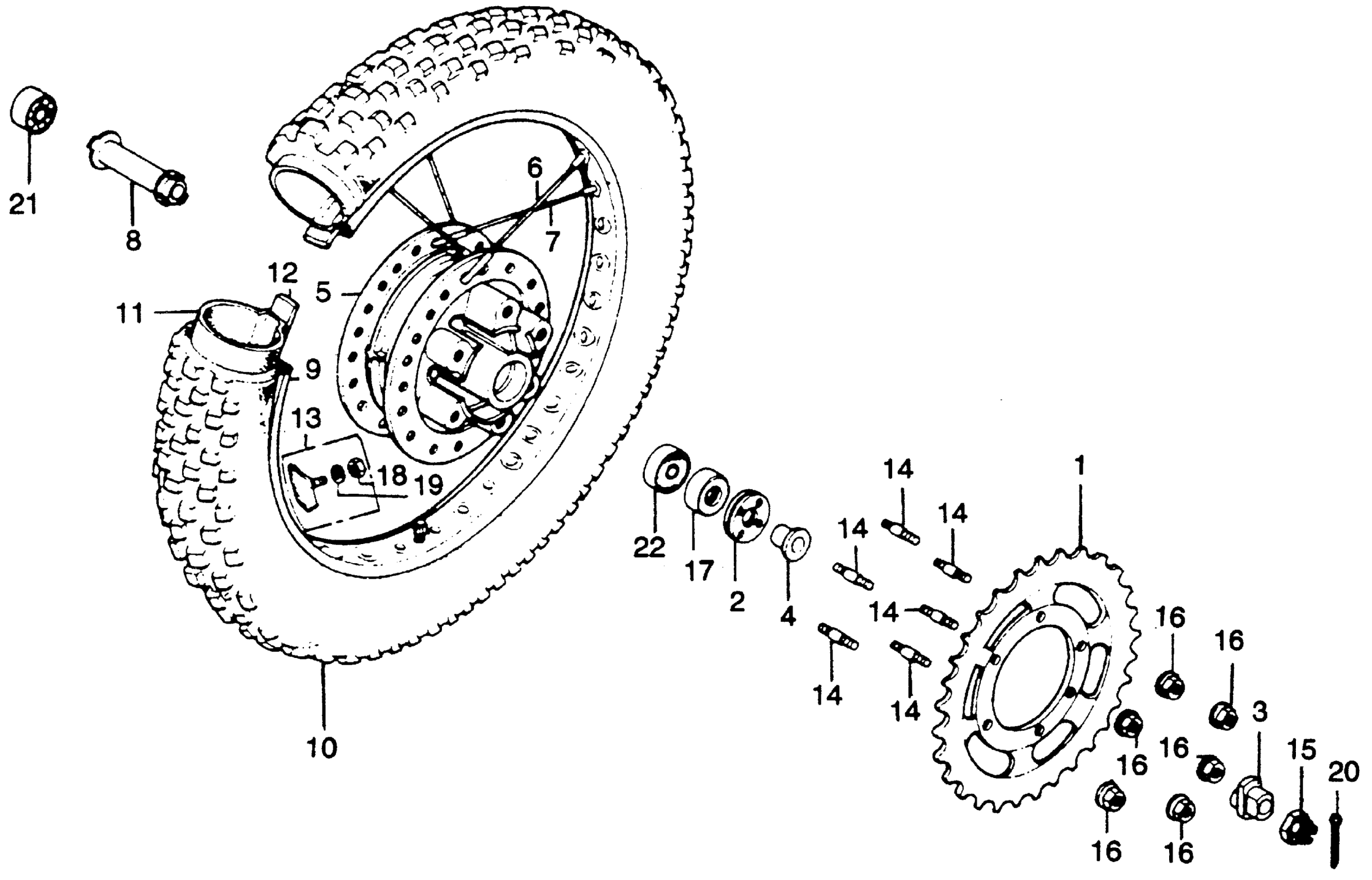

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (47T) (NOT AVAILABLE)

41201-395-670

Unavailable

1

SPROCKET, FINAL DRIVEN (49T) (NOT AVAILABLE) | (Optional).

41201-395-810

Unavailable

1

SPROCKET, FINAL DRIVEN (51T) (NOT AVAILABLE) | (Optional).

41201-395-820

Unavailable

2

RETAINER, RR. WHEEL BEARING

41231-286-000

$29.11

3

COLLAR, RR. AXLE (NOT AVAILABLE)

42306-356-000

Unavailable

4

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-357-010

Unavailable

5

HUB, RR. WHEEL (NOT AVAILABLE)

42601-357-030

Unavailable

6

SPOKE A, RR. This part replaces 42606-357-000.

42606-357-305

Unavailable

6

SPOKE A, RR.

42606-357-305

Unavailable

7

SPOKE B, RR. This part replaces 42607-357-000.

42607-357-305

Unavailable

7

SPOKE B, RR.

42607-357-305

Unavailable

8

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-357-010

Unavailable

9

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE) This part replaces 42701-381-003.

42701-385-741

Unavailable

9

RIM, RR. WHEEL (DAIDO) (NOT AVAILABLE)

42701-385-741

Unavailable

10

TIRE, RR. (4.00-18) (4PR) (BS) (NOT AVAILABLE)

42711-357-003

Unavailable

11

TUBE, TIRE This part replaces 08400-34001.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-KT1-671.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-300-000.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-300-003.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-310-004.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-312-003.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-340-006.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-374-003.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-400-003.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-425-003.

42712-KT1-673

$37.60

11

TUBE, TIRE This part replaces 42712-435-003.

42712-KT1-673

$37.60

11

TUBE, TIRE (DUNLOP) (NOT AVAILABLE)

44712-300-004

$65.43

12

FLAP, TIRE (2.15-18) (BS) (NOT AVAILABLE)

42713-300-003

$5.69

13

STOPPER, BEAD (2.15)

42715-MA0-770

$37.88

13

STOPPER, BEAD (2.15) This part replaces 42715-355-006.

42715-MA0-770

$37.88

13

STOPPER, BEAD (2.15) This part replaces 42715-357-000.

42715-MA0-770

$37.88

13

STOPPER, BEAD (2.15) This part replaces 42715-428-000.

42715-MA0-770

$37.88

13

STOPPER, BEAD (2.15) This part replaces 42715-467-000.

42715-MA0-770

$37.88

14

BOLT, STUD (8X45)

90125-329-010

$3.26

15

NUT, RR. WHEEL AXLE

90306-329-770

$7.58

16

NUT, HEX. (8MM)

90309-357-000

$3.40

17

DUST SEAL (30X45X9.5)

91253-286-013

$6.81

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49

20

PIN, COTTER (4.0X30)

94201-40300

$1.49

21

BEARING, RADIAL BALL (6204U)

96140-62040-10

$21.84

22

BEARING, RADIAL BALL (6304U)

96140-63040-10

$24.03
