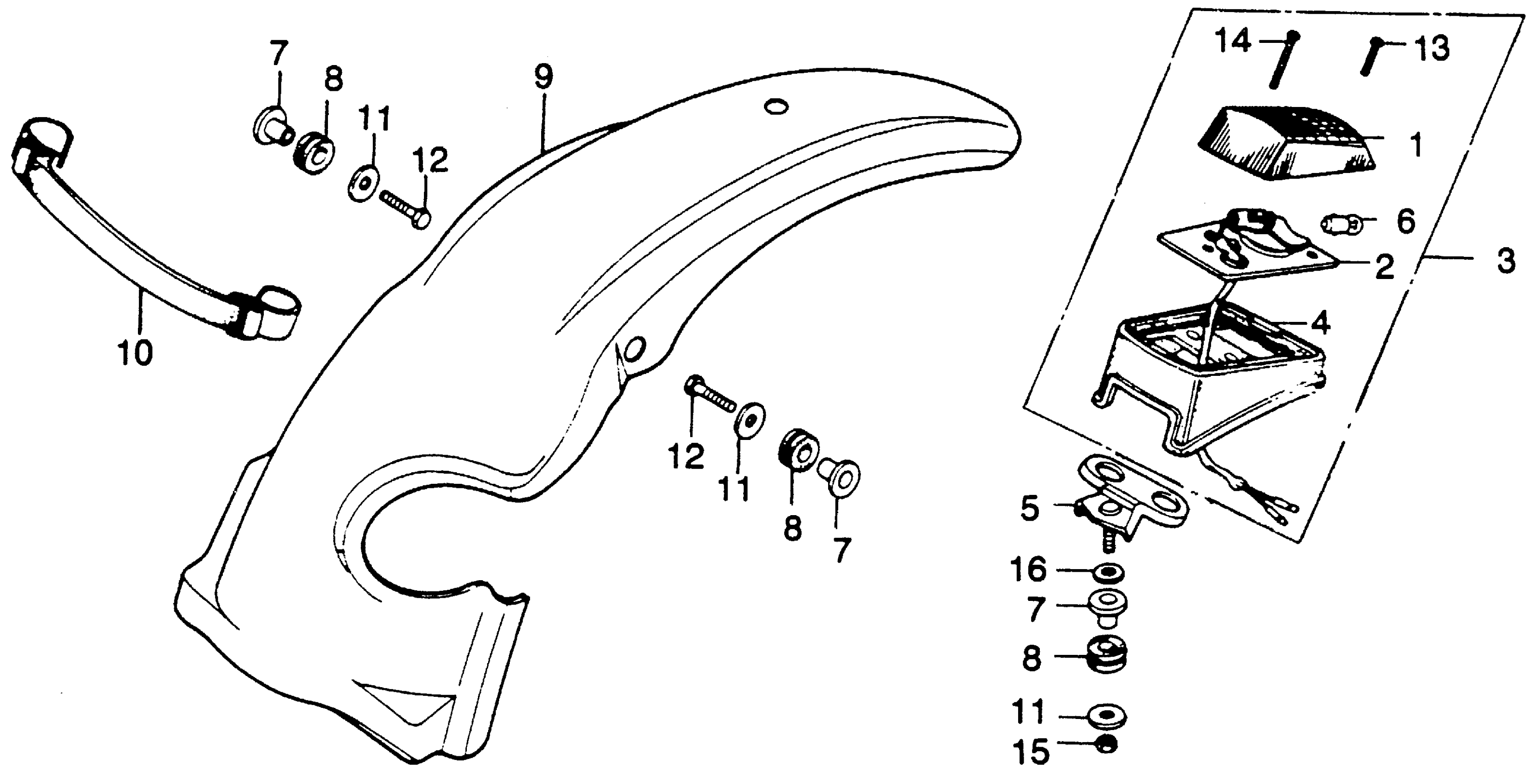

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 REAR FENDER + TAILLIGHT Diagram

#

Description
Price

1

LENS, TAILLIGHT

33141-373-670

Unavailable

2

BASE, TAILLIGHT (NOT AVAILABLE)

33142-373-670

Unavailable

3

TAILLIGHT UNIT (NOT AVAILABLE) This part replaces 33701-373-671.

33701-373-771

Unavailable

4

BODY, TAILLIGHT (NOT AVAILABLE)

33702-373-670

Unavailable

5

STAY, TAILLIGHT (NOT AVAILABLE)

33720-395-670

Unavailable

6

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

7

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

7

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

7

COLLAR, RR. FENDER

61105-428-000

Unavailable

8

RUBBER, SETTING (22MM)

61315-358-000

$5.34

9

FENDER, RR. *NH24* (CERAMIC WHITE) (NOT AVAILABLE)

80100-395-670ZB

Unavailable

10

BAND, FENDER MOUNT (NOT AVAILABLE)

80105-381-000

Unavailable

11

WASHER, FLAT (20MM) This part replaces 90506-500-000.

91412-538-000

Unavailable

11

WASHER, FLAT (20MM) This part replaces 91412-500-000.

91412-538-000

Unavailable

11

WASHER, FLAT (20MM)

91412-538-000

Unavailable

12

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

12

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

12

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

13

SCREW, PAN (3X18) (SOURCE: VINTAGE PARTS INC.)

93500-03018-3B

Unavailable

14

SCREW, PAN (3X25) (SOURCE: VINTAGE PARTS INC.)

93500-03025-3B

Unavailable

15

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

15

NUT, HEX. (6MM)

94001-06200-0S

$1.49

15

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

16

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

16

WASHER, PLAIN (6MM)

94101-06800

$1.49
