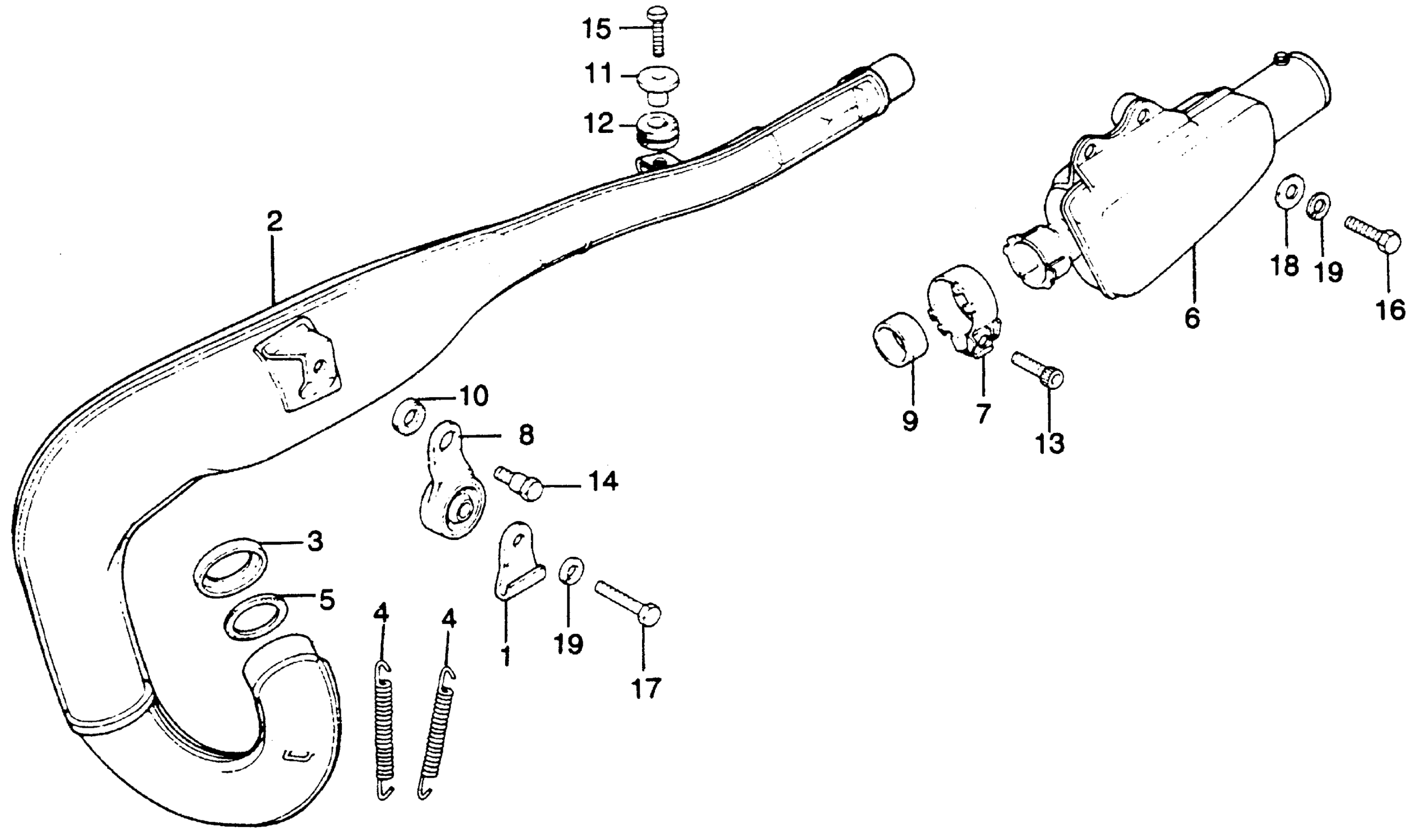

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 MUFFLER Diagram

#

Description
Price

1

CLAMP, THROTTLE CABLE (NOT AVAILABLE)

17918-395-670

Unavailable

2

MUFFLER

18300-395-670

Unavailable

3

COVER GASKET, MUFFLER (NOT AVAILABLE)

18330-395-670

Unavailable

4

SPRING, EX. PIPE

18332-357-010

$13.50

5

GASKET, MUFFLER (NOT AVAILABLE)

18342-395-670

Unavailable

6

MUFFLER, SUB (NOT AVAILABLE)

18350-395-670

Unavailable

7

BAND, MUFFLER (NOT AVAILABLE)

18351-381-670

Unavailable

8

BRACKET, MUFFLER (NOT AVAILABLE)

18353-357-010

Unavailable

9

GASKET, MUFFLER This part replaces 18391-292-300.

18392-MK5-000

Unavailable

9

GASKET, MUFFLER

18392-MK5-000

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

Unavailable

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

11

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

11

COLLAR, RR. FENDER

61105-428-000

Unavailable

12

RUBBER, SETTING (22MM)

61315-358-000

$5.10

13

BOLT, SOCKET (8X25) (NOT AVAILABLE)

90117-395-670

Unavailable

14

BOLT, MUFFLER SETTING (NOT AVAILABLE)

90138-381-000

Unavailable

15

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

15

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

15

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

16

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

16

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

17

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.80

17

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.80

17

BOLT, HEX. (8X32)

92101-08032-0B

$2.80

18

WASHER, PLAIN (8MM)

94101-08000

Unavailable

19

WASHER, SPRING (8MM)

94111-08000

Unavailable
