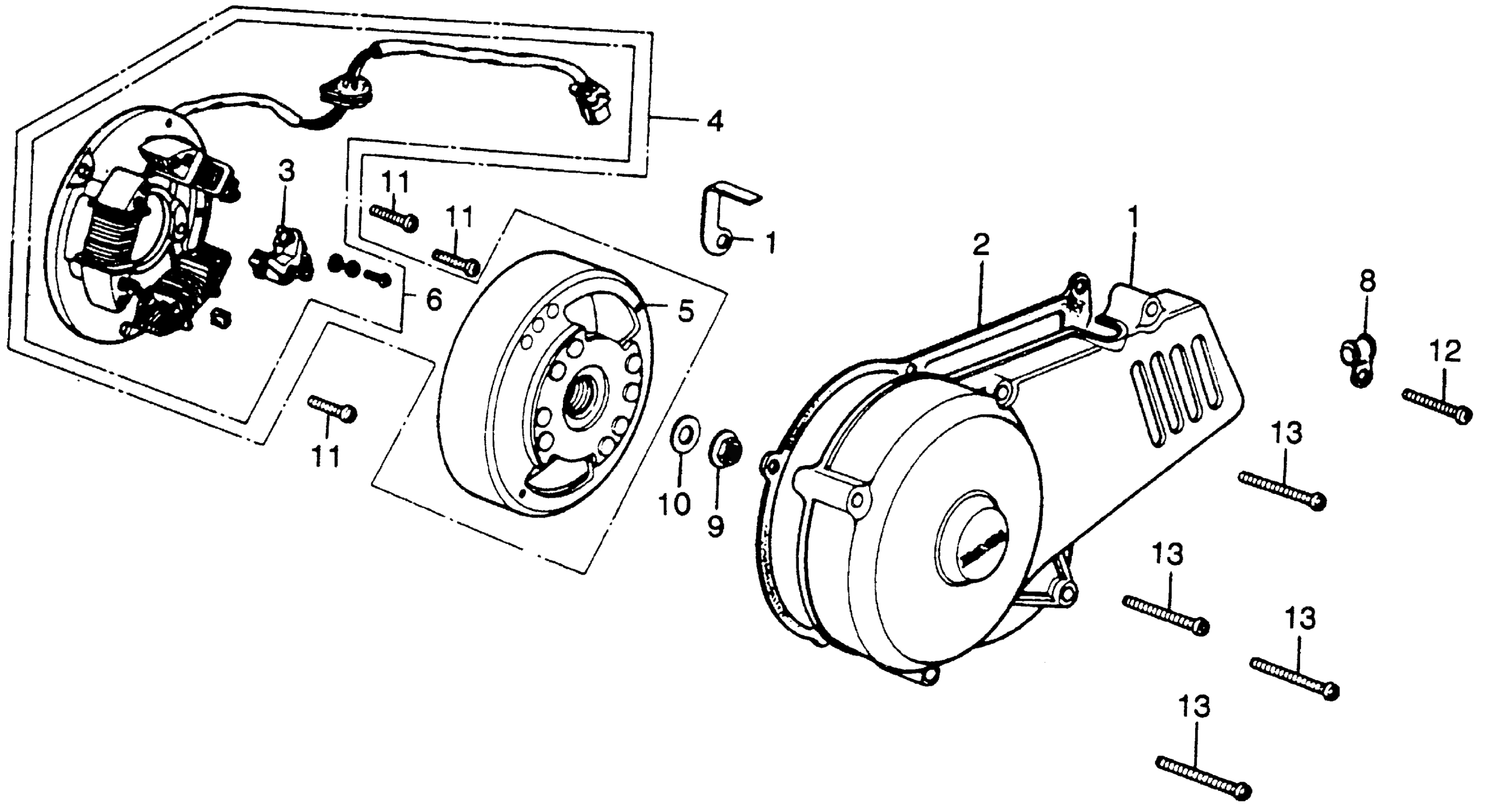

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description

Price

1

COVER, L. CRANKCASE

11341-381-000

Unavailable

2

GASKET, L. This part replaces 11395-357-020.

11395-357-306

Unavailable

3

POINTS ASSY.

30200-358-004

Unavailable

4

ALTERNATOR ASSY. (DENSO) (NOT AVAILABLE)

31100-395-014

Unavailable

5

FLYWHEEL (DENSO) (NOT AVAILABLE)

31121-395-014

Unavailable

6

STATOR (DENSO) (NOT AVAILABLE)

31141-395-004

Unavailable

7

CLAMP, ALTERNATOR

31151-358-000

Unavailable

8

CLIP, FR. BRAKE CABLE (NOT AVAILABLE)

45465-329-010

Unavailable

9

NUT, SPECIAL (12MM)

90201-395-000

Unavailable

10

WASHER, ROTOR SETTING (NOT AVAILABLE)

90427-395-000

Unavailable

11

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

Unavailable

11

SCREW, PAN (6X20)

93500-06020-0A

Unavailable

12

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.10

12

SCREW, PAN (6X28)

93500-06028-0A

$1.10

13

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

13

SCREW, PAN (6X35)

93500-06035-0A

$1.49
