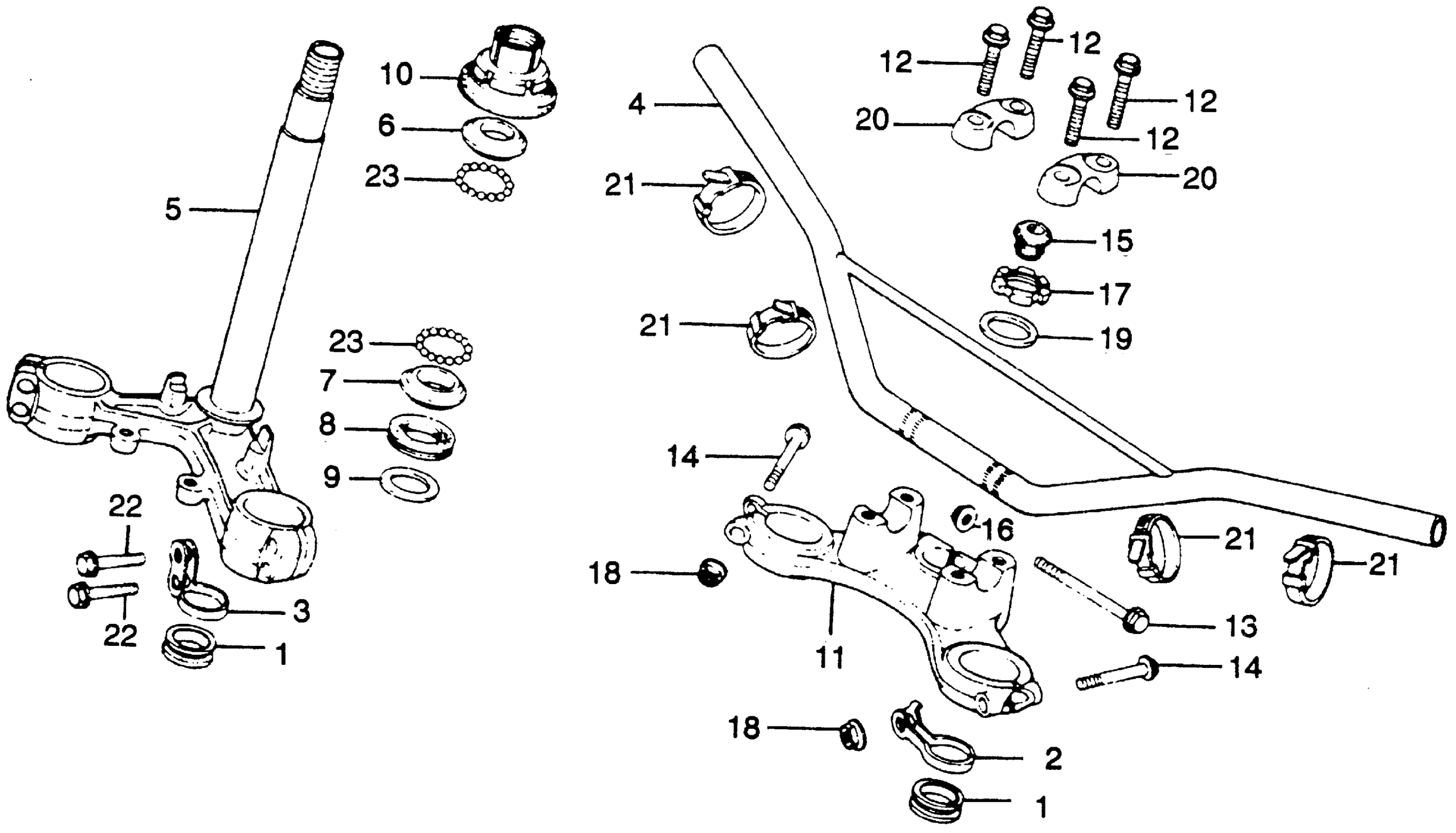

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 HANDLEBAR + TOP BRIDGE + STEERING STEM Diagram

#

Description
Price

1

GUIDE, CABLE (INNER)

45466-329-000

$2.95

2

GUIDE A, FR. BRAKE CABLE (NOT AVAILABLE)

45467-329-000

Unavailable

3

CLIP B, FR. BRAKE CABLE (NOT AVAILABLE)

45468-360-000

Unavailable

4

HANDLEBAR (NOT AVAILABLE)

53100-360-820

Unavailable

5

STEM, STEERING *NH1* (BLACK)

53200-395-670ZA

Unavailable

6

RACE, STEERING CONE (UPPER) (NOT AVAILABLE)

53211-200-305

Unavailable

7

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

8

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

9

WASHER, STEERING HEAD DUST SEAL

53215-200-000

$1.77

10

THREAD, STEERING HEAD TOP (NOT AVAILABLE)

53220-357-000

Unavailable

11

BRIDGE, FORK TOP This part replaces 53230-381-010.

53231-381-010

Unavailable

11

BRIDGE, FORK TOP

53231-381-010

Unavailable

12

BOLT, FLANGE (8X36)

90111-362-000

$4.80

13

BOLT, FLANGE (8X72) (NOT AVAILABLE)

90124-458-000

Unavailable

14

BOLT, FLANGE (7X54)

90155-369-000

$6.01

15

CAP, STEERING STEM (NOT AVAILABLE)

90303-357-000

Unavailable

16

NUT, FLANGE (8MM) This part replaces 90303-369-000.

94050-08020

$1.91

16

NUT, FLANGE (8MM)

94050-08020

$1.91

17

NUT, STEERING STEM (NOT AVAILABLE)

90304-357-000

Unavailable

18

NUT, FLANGE (7MM)

90355-369-000

$4.94

19

WASHER, STEERING STEM (NOT AVAILABLE)

90503-381-000

Unavailable

20

HOLDER B2, HANDLEBAR (UPPER)

95014-22200

$12.13

21

BAND B1, CABLE

95014-62100

$1.64

22

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

22

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

23

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
