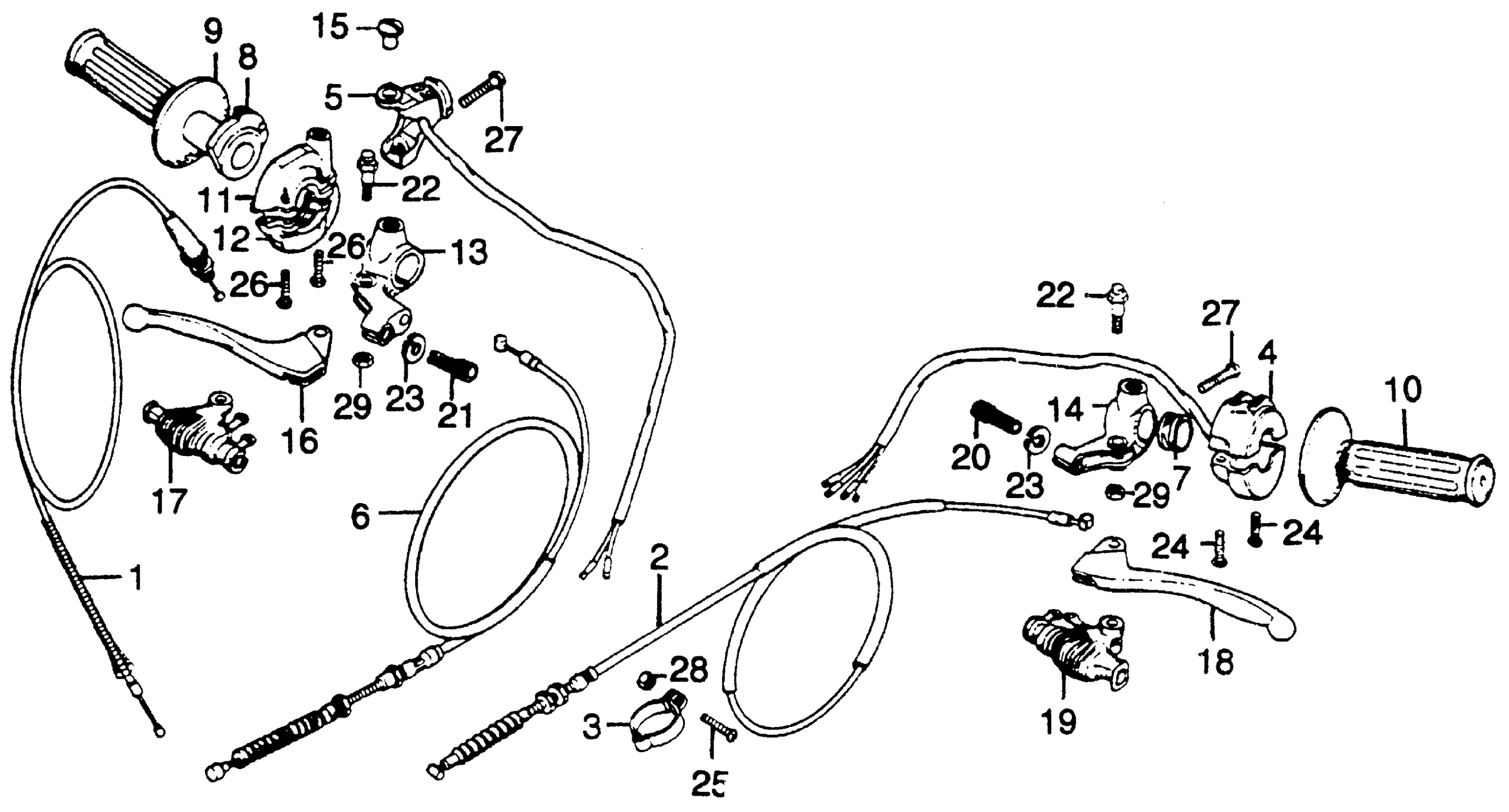

Honda MR250A (76) ELSINORE, JPN, VIN# MR250-1000001 TO MR250-1010551 HANDLE GRIP + CABLES + SWITCHES Diagram

#

Description
Price

1

CABLE, THROTTLE (NOT AVAILABLE)

17910-381-000

Unavailable

2

CABLE, CLUTCH

22870-358-000

Unavailable

3

CLAMP, CLUTCH CABLE (NOT AVAILABLE)

22878-357-000

Unavailable

4

SWITCH ASSY., LIGHTING (NOT AVAILABLE)

35300-373-671

Unavailable

5

SWITCH ASSY., ENGINE STOP (TOYO) (NOT AVAILABLE)

35320-360-003

Unavailable

6

CABLE, FR. BRAKE (NOT AVAILABLE)

45450-395-670

Unavailable

7

RUBBER, HANDLEBAR (NOT AVAILABLE)

53140-395-670

Unavailable

8

PIPE, THROTTLE GRIP (NOT AVAILABLE)

53141-357-010

Unavailable

9

GRIP, R. HANDLEBAR

53165-116-670

$12.17

10

GRIP, L. HANDLEBAR

53166-116-670

$12.19

11

HOUSING A, GRIP (NOT AVAILABLE)

53167-381-000

Unavailable

12

HOUSING B, GRIP (NOT AVAILABLE)

53168-381-000

Unavailable

13

BRACKET, R. HANDLEBAR

53171-312-003

$52.94

14

BRACKET, L. HANDLEBAR

53172-310-010

$56.00

15

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

16

LEVER, R. HANDLEBAR This part replaces 53175-360-700.

53175-KY0-980

$31.02

16

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

17

COVER, R. CONTROL LEVER

53176-329-000

$12.41

18

LEVER, L. HANDLEBAR This part replaces 53178-360-700.

53178-401-651

Unavailable

18

LEVER, L. HANDLEBAR

53178-401-651

Unavailable

18

LEVER, L. HANDLEBAR This part replaces 53178-467-000.

53178-401-651

Unavailable

18

LEVER, L. HANDLEBAR This part replaces 53190-401-681.

53178-401-651

Unavailable

18

LEVER, L. HANDLEBAR This part replaces 53190-410-000.

53178-401-651

Unavailable

19

COVER, L. CONTROL LEVER

53179-329-000

$15.07

20

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

21

BOLT, CLUTCH CABLE ADJUSTING

53192-312-000

$7.91

22

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

23

NUT, FIXING

90321-315-670

$7.31

23

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

24

SCREW, PAN (5X16)

93500-05016-0A

$1.49

25

SCREW, PAN (5X18)

93500-05018-0A

$1.49

26

SCREW, PAN (5X20)

93500-05020-0A

$1.49

27

SCREW, PAN (6X28) This part replaces 93500-06028.

93500-06028-0A

$1.49

27

SCREW, PAN (6X28)

93500-06028-0A

$1.49

28

NUT, HEX. (5MM)

94001-05000-0S

$2.74

29

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

29

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
